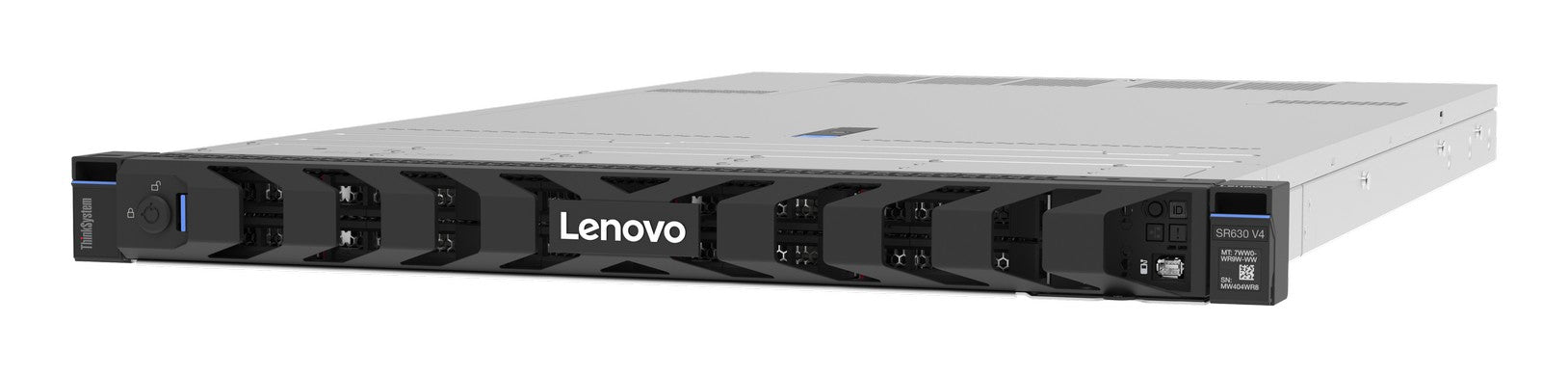

Lenovo 7DG9CTO1WW | ThinkSystem SR630 V4 1U Rack Server, Xeon 6515P

Name: Lenovo 7DG9CTO1WW | ThinkSystem SR630 V4 1U Rack Server, Xeon 6515P
Brand: Lenovo
SKU: 7DG9CTO1WW
Price: 8634.89 AUD
Availability: BackOrder

Authorised Lenovo Partner

SKU:7DG9CTO1WW

Stock Status: Enquire

$8,634.89 inc. GST

$7,849.90 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Lenovo ThinkSystem SR630 V4 is a 1U rack server built on Intel Xeon 6 processors, designed for high-density and scale-out workloads. This configure-to-order base model (machine type 7DG9) ships with the Intel Xeon 6515P, 16 cores at 2.3 GHz and 150 W, and is covered by a 3-year customer-replaceable unit and onsite limited warranty with 9x5 next business day response.

The SR630 V4 supports one or two Intel Xeon 6700P or 6500P processors, up to 32 TruDDR5 DIMM slots with capacity to 8TB, and PCIe 5.0 expansion. Storage options span up to 12x 2.5-inch hot-swap bays or up to 16x E3.S NVMe drives, with M.2 boot support. XClarity Controller 3 provides remote management, and a hardware Root of Trust with TPM 2.0 supports a secure server platform.

Features

- High-density 1U design with one or two Intel Xeon 6 processors for scale-out workloads
- PCIe 5.0 throughout with DDR5 memory up to 6400 MHz
- Up to 12 NVMe drives with direct connections and no oversubscription
- Flexible storage: 2.5-inch SAS/SATA/NVMe, E3.S EDSFF and M.2 boot options
- Dual OCP 3.0 slots for networking from 1GbE to 100GbE
- XClarity Controller 3 for remote management
- Hardware Root of Trust with TPM 2.0 for platform security
- N+1 redundant hot-swap fans and redundant hot-swap Platinum or Titanium power supplies
- Configure-to-order flexibility to match processor, memory, storage and networking to the workload

Warranty

Lenovo offers a standard 1-year warranty across most product lines, including:
• PC Products: 1-year base warranty coverage for laptops, desktops, and other personal computing devices.
• Data Centre Products: 1-year base warranty for servers, storage, and networking hardware.
Warranty coverage includes repair or replacement for eligible defects in materials or workmanship under normal use conditions.
Extended Warranty Options:
IP Trading can offer extended warranty solutions tailored to your business needs. Please contact us for details on available Lenovo extended warranty packages.
https://support.lenovo.com/au/en/solutions/ht505088-product-warranty-and-other-agreements

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Machine type 7DG9, CTO base model, 3-year warranty
- Form factor: 1U rack
- Processor in this configuration: Intel Xeon 6515P, 16 cores, 2.3 GHz, 150 W
- Supports 1 or 2 Intel Xeon 6700P/6500P processors, up to 86 cores and 350 W TDP
- Memory: 32 DIMM slots (16 per processor), 8 channels per CPU, Lenovo TruDDR5 RDIMM up to 6400 MHz at 1 DPC
- Maximum memory: up to 8TB using 32x 256GB 3DS RDIMMs
- Memory protection: ECC, SDDC (x4 DIMMs), ADDDC (x4 DIMMs), memory mirroring
- Storage: up to 12x 2.5-inch hot-swap bays, or up to 16x E3.S 1T NVMe, plus M.2 boot options
- Storage controllers: onboard NVMe with optional Intel VROC, Tri-mode RAID adapter, 12Gb SAS/SATA RAID adapters and HBAs
- Expansion: up to 3x PCIe 5.0 rear slots (1x FH, 2x LP) plus 2x OCP 3.0 SFF slots
- GPU support: up to 3x single-wide GPUs
- Networking: dedicated OCP 3.0 SFF slots, 2-port and 4-port adapters at 1/10/25/100 GbE
- Rear ports: 2x USB 3 (5 Gb/s), 1x VGA, 1x RJ-45 1GbE XCC management port
- Power: up to 2x hot-swap redundant AC PSUs, 800W / 1300W / 2000W, 80 PLUS Platinum or Titanium
- Cooling: up to 8x N+1 hot-swap 40 mm fans
- Management: XClarity Controller 3 (XCC3), Root of Trust module with TPM 2.0 and PFR
- Dimensions (W x H x D): 440 x 43 x 788 mm
- Weight: up to 18.27 kg with 2.5-inch drives, 19.6 kg with E3.S drives

FAQs

Q: What processor is included in the 7DG9CTO1WW configuration?
A: This configuration uses the Intel Xeon 6515P with 16 cores, a 2.3 GHz base frequency and a 150 W TDP.

Q: Does the SR630 V4 support a second processor?
A: Yes. The platform supports one or two Intel Xeon 6700P or 6500P processors, giving up to 32 DIMM slots with two processors installed.

Q: What memory does the ThinkSystem SR630 V4 support?
A: It supports Lenovo TruDDR5 RDIMMs up to 6400 MHz at 1 DPC and 5200 MHz at 2 DPC, with capacity up to 8TB using 256GB 3DS RDIMMs. ECC, SDDC, ADDDC and memory mirroring are supported.

Q: What storage configurations are available?
A: Options include up to 12x 2.5-inch hot-swap bays (SAS, SATA or NVMe), up to 16x E3.S 1T NVMe drives, and M.2 boot drives. There is no internal optical drive.

Q: What expansion and networking options does it offer?
A: The server provides up to 3x PCIe 5.0 rear slots and 2x OCP 3.0 SFF slots for networking adapters from 1GbE to 100GbE. Up to 3x single-wide GPUs are supported.

Q: How is the server managed and secured?
A: Management is through XClarity Controller 3 with a dedicated RJ-45 1GbE management port. Security features include a Root of Trust module with TPM 2.0, power-on and admin passwords, a chassis intrusion switch and an optional lockable security bezel.
