Lenovo 7D7QA01EAU | ThinkSystem SR250 V2 1U Rack Server, Xeon E-2324G, 16GB

Authorised Lenovo Partner

SKU:7D7QA01EAU

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

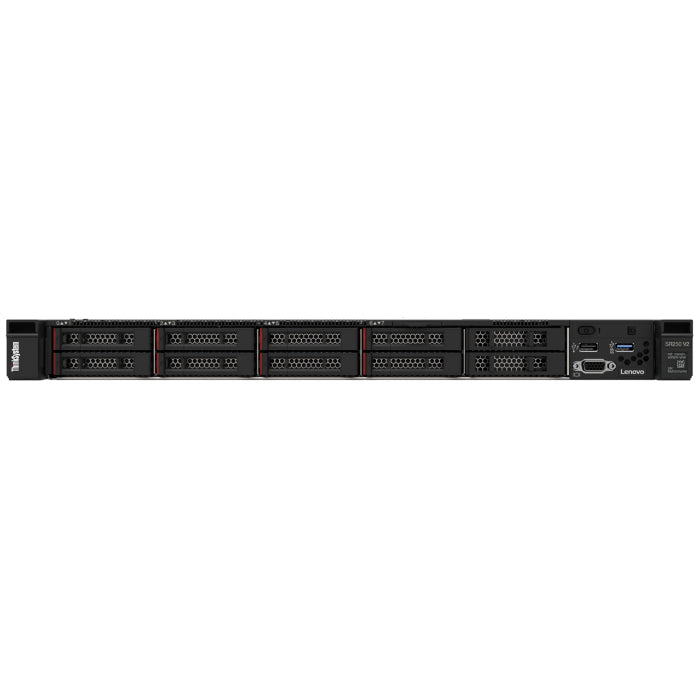

The Lenovo ThinkSystem SR250 V2 is a single-socket 1U rack server for small businesses and edge deployments. This configuration pairs an Intel Xeon E-2324G processor (4 cores, 3.1 GHz base, 4.6 GHz turbo) with 16GB of DDR4 ECC memory, 8x 2.5-inch hot-swap bays, a 450W hot-swap power supply and XCC Enterprise remote management.

Built on the Intel Xeon E-2300 series platform, the SR250 V2 offers a compact, quiet chassis with up to three PCIe slots, one with PCIe Gen4, and room to grow to 128GB of memory. A second power supply bay allows redundancy to be added, making it a practical choice for branch offices, retail sites and edge workloads.

Features

- Supports Intel Xeon E-2300 series (Rocket Lake-E) or Pentium processors with ECC memory support
- Lenovo XClarity Controller (XCC) Enterprise for remote management
- Security features including Intel SGX support
- Compact, quiet 1U design suited to office and edge deployments
- PCIe Gen4 expansion slot for high-throughput I/O
- 8x hot-swap 2.5-inch bays for flexible storage configurations

Warranty

Lenovo offers a standard 1-year warranty across most product lines, including:
• PC Products: 1-year base warranty coverage for laptops, desktops, and other personal computing devices.
• Data Centre Products: 1-year base warranty for servers, storage, and networking hardware.
Warranty coverage includes repair or replacement for eligible defects in materials or workmanship under normal use conditions.
Extended Warranty Options:
IP Trading can offer extended warranty solutions tailored to your business needs. Please contact us for details on available Lenovo extended warranty packages.
https://support.lenovo.com/au/en/solutions/ht505088-product-warranty-and-other-agreements

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1U rack-mount, machine type 7D7Q
- Processor: 1x Intel Xeon E-2324G, 4 cores / 4 threads, 3.1 GHz base / 4.6 GHz turbo, 65W, 8MB cache
- Memory: 1x 16GB 2Rx8 DDR4 ECC UDIMM installed (3200 MHz), 4 DIMM slots, 128GB maximum
- Drive bays: 8x 2.5-inch hot-swap SAS/SATA bays (no drives included)
- Storage controller: onboard SATA (software RAID)
- Expansion: up to 3 PCIe slots (x8 low-profile, x8 full-height, x8 internal), one with PCIe Gen4
- Power supply: 1x 450W hot-swap (80 PLUS Platinum), second PSU bay available for redundancy
- Management: XCC Enterprise
- Rear ports: 2x USB 3.2 Gen2, 1x VGA, 1x RJ-45 management, 2x RJ-45 GbE, 1x serial
- Cooling: 4x non-hot-swap system fans
- Optical drive: none (open bay)

FAQs

Q: What processor and memory are included in the 7D7QA01EAU?
A: It includes one Intel Xeon E-2324G (4 cores, 3.1 GHz base, 4.6 GHz turbo, 65W) and one 16GB 2Rx8 DDR4 ECC UDIMM at 3200 MHz.

Q: How much memory can the SR250 V2 support?
A: The server has 4 DIMM slots and supports up to 128GB of DDR4 ECC UDIMM memory.

Q: Are drives included with this server?
A: No. The 8x 2.5-inch hot-swap SAS/SATA bays are supplied without drives, so you can specify the storage that suits your workload.

Q: Does this model have a redundant power supply?
A: It ships with one 450W hot-swap 80 PLUS Platinum power supply. A second PSU bay is available if you want to add redundancy.

Q: What remote management is included?
A: This configuration includes Lenovo XClarity Controller (XCC) Enterprise, with a dedicated RJ-45 management port at the rear.

Q: What expansion options does the SR250 V2 offer?
A: It provides up to three PCIe slots (x8 low-profile, x8 full-height and an x8 internal slot), with one slot supporting PCIe Gen4.
