Lenovo 7D7AA037AU | ThinkSystem ST650 V3 Tower Server, Xeon Silver 4514Y, 32GB, 9350-8i, 750W

Name: Lenovo 7D7AA037AU | ThinkSystem ST650 V3 Tower Server, Xeon Silver 4514Y, 32GB, 9350-8i, 750W
Brand: Lenovo
SKU: 7D7AA037AU
Price: 8954.94 AUD
Availability: BackOrder

Authorised Lenovo Partner

SKU:7D7AA037AU

Stock Status: Enquire

$8,954.94 inc. GST

$8,140.85 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

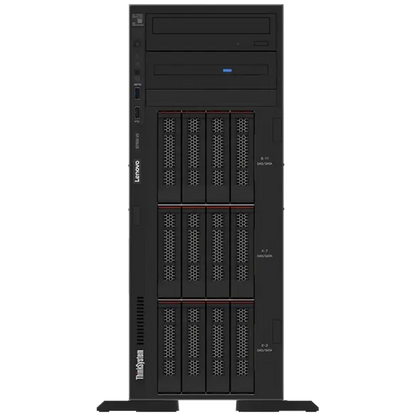

The Lenovo ThinkSystem ST650 V3 Tower Server is a 2-socket, tower or 4U rack-convertible server for small businesses through to large enterprises. This preconfigured model ships with one 5th Gen Intel Xeon Silver 4514Y processor (16 cores, 2.0 GHz, 150W), 1x 32GB TruDDR5 RDIMM, a 9350-8i 12Gb SAS/SATA RAID adapter and a single 750W hot-swap power supply. It includes 8x 2.5-inch SAS hot-swap open bays plus 2x 5.25-inch media/open bays.

The platform scales well beyond this configuration, with support for a second processor, up to 32 DIMM slots and 4TB of memory, nine PCIe slots (five PCIe 5.0) and up to 8 single-wide or 4 double-wide GPUs. Two onboard 10GBASE-T ports, a dedicated 1GbE XClarity Controller 2 management port, and a Root of Trust module with TPM 2.0 round out the connectivity and security.

Features

- Supports one or two 4th/5th Gen Intel Xeon Scalable processors with up to 32 cores
- DDR5 memory with up to 32 DIMMs and 4TB capacity
- Up to nine PCIe slots, five of them PCIe 5.0
- Hot-swap drives, power supplies and fans for serviceability
- Designed for 24x7 operation with SDDC, ADDDC and memory mirroring protection
- XClarity Controller 2 for remote management
- Root of Trust security module with TPM 2.0 and Platform Firmware Resiliency
- Tower or 4U rack deployment flexibility
- Support for up to 8 single-wide or 4 double-wide GPUs

Warranty

Lenovo offers a standard 1-year warranty across most product lines, including:
• PC Products: 1-year base warranty coverage for laptops, desktops, and other personal computing devices.
• Data Centre Products: 1-year base warranty for servers, storage, and networking hardware.
Warranty coverage includes repair or replacement for eligible defects in materials or workmanship under normal use conditions.
Extended Warranty Options:
IP Trading can offer extended warranty solutions tailored to your business needs. Please contact us for details on available Lenovo extended warranty packages.
https://support.lenovo.com/au/en/solutions/ht505088-product-warranty-and-other-agreements

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: Tower or 4U rack
- Processor: 1x Intel Xeon Silver 4514Y, 16 cores, 2.0 GHz, 150W (5th Gen Xeon Scalable)
- Processor support: one or two 4th/5th Gen Intel Xeon Scalable processors, up to 32 cores
- Chipset: Intel C741
- Memory: 1x 32GB 2Rx8 TruDDR5 RDIMM installed
- Memory capacity: 32 DIMM slots, up to 4TB using 128GB 3DS RDIMMs
- Memory protection: ECC, SDDC, ADDDC, memory mirroring
- RAID controller: 9350-8i 12Gb SAS/SATA
- Drive bays: 8x 2.5-inch SAS hot-swap open bays, 2x 5.25-inch media/open bays
- Internal boot: M.2 module supporting up to two M.2 drives
- Network: 2x onboard 10GBASE-T RJ45, 1x 1GbE XCC management port
- PCIe expansion: 9 slots (5x PCIe 5.0, 4x PCIe 4.0)
- GPU support: up to 8x single-wide or 4x double-wide GPUs
- Front ports: 1x USB 3.2 G1, 1x USB 2.0
- Rear ports: 4x USB 3.2 G1, 1x VGA, 1x DB-9 COM
- Power supply: 1x 750W hot-swap AC, 80 PLUS Platinum
- Cooling: 3x Performance fans
- Management: XClarity Controller 2 (Standard)
- Security: Root of Trust module with TPM 2.0 and Platform Firmware Resiliency
- Dimensions (W x H x D): 175 x 462 x 734 mm
- Weight: up to 39.1 kg

FAQs

Q: Can the ST650 V3 be installed in a rack?
A: Yes. The ST650 V3 can be deployed as a tower or converted to a 4U rack-mount server.

Q: Does this model include a RAID controller?
A: Yes. This configuration includes a 9350-8i 12Gb SAS/SATA RAID adapter for the 8x 2.5-inch SAS hot-swap bays.

Q: Can I add a second processor?
A: Yes. The platform supports one or two 4th or 5th Gen Intel Xeon Scalable processors. Note that PCIe slots 4 to 8 require a second processor.

Q: How much memory does the server support?
A: The platform has 32 DIMM slots when two processors are fitted and supports up to 4TB using 128GB 3DS RDIMMs. This model includes one 32GB TruDDR5 RDIMM.

Q: Does it support GPUs?
A: Yes. The platform supports up to 8 single-wide or up to 4 double-wide GPUs.

Q: Does it support redundant power?
A: The platform supports up to two redundant hot-swap power supplies. This configuration includes a single 750W hot-swap AC power supply.
