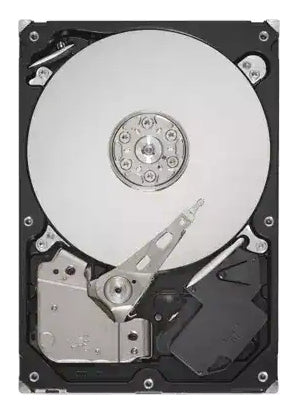

Lenovo 4XB7A93007 | ThinkSystem 24TB 7.2K SAS 12Gb 3.5in Hot-Swap HDD, 512e, SED

Authorised Lenovo Partner

SKU:4XB7A93007

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The ThinkSystem 24TB 7.2K SAS 12Gb 3.5-inch hot-swap hard drive is an enterprise NL SAS HDD built for Lenovo ThinkSystem servers. It delivers 24TB of capacity in a large form factor (LFF) hot-swap carrier, spins at 7,200 RPM and connects over a 12Gb SAS interface using the 512e sector format. Self-encrypting drive (SED) support protects data at rest.

This drive uses a helium-filled assembly, which allows more platters, higher capacity and lower power consumption. Hot-swap design means drives can be replaced or added without powering down the server. It is compatible with ThinkSystem servers including the SR250 V3, SR630 V3, SR645 V3, SR650 V3, SR655 V3 and SR665 V3, and is tested by Lenovo for compatibility and reliability in 24x7 server environments.

Features

- Hot-swap design allows drives to be replaced or added without powering down the server
- Self-encrypting drive (SED) protects data at rest and supports secure drive retirement or repurposing
- Helium-filled assembly allows more platters, higher capacity and lower power consumption
- Tested by Lenovo for compatibility and reliability in 24x7 server environments
- 512e sector format for broad OS and HBA compatibility

Warranty

Lenovo offers a standard 1-year warranty across most product lines, including:
• PC Products: 1-year base warranty coverage for laptops, desktops, and other personal computing devices.
• Data Centre Products: 1-year base warranty for servers, storage, and networking hardware.
Warranty coverage includes repair or replacement for eligible defects in materials or workmanship under normal use conditions.
Extended Warranty Options:
IP Trading can offer extended warranty solutions tailored to your business needs. Please contact us for details on available Lenovo extended warranty packages.
https://support.lenovo.com/au/en/solutions/ht505088-product-warranty-and-other-agreements

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Capacity: 24TB
- Form factor: 3.5-inch (LFF) hot-swap
- Rotational speed: 7,200 RPM
- Interface: NL SAS, 12Gbps
- Sector format: 512e
- Self-encrypting drive (SED) support: Yes
- Workload limit: 550TB per year
- Helium-filled drive assembly
- Feature code: C2BH

FAQs

Q: Which Lenovo servers is this 24TB drive compatible with?
A: It is listed as compatible with ThinkSystem SR250 V3, SR630 V3, SR630 V3 SP5, SR645 V3, SR650 V3, SR650 V3 SP5, SR655 V3 and SR665 V3 servers.

Q: Is this drive hot-swappable?
A: Yes. It is a 3.5-inch hot-swap drive, so it can be replaced or added without powering down the server.

Q: Does this drive support encryption?
A: Yes. It is a self-encrypting drive (SED) that protects data at rest and supports secure retirement or repurposing of the drive.

Q: What interface and sector format does it use?
A: It uses a 12Gb SAS (NL SAS) interface with the 512e sector format, which suits a wide range of operating systems and host bus adapters.

Q: What is the rated workload limit?
A: The workload limit is 550TB per year, which applies to Enterprise 7,200 RPM NL SAS and NL SATA drives.

Q: Is this drive suited to SSD-style performance workloads?
A: No. It is a 7,200 RPM nearline hard drive designed for high-capacity bulk storage, such as archives, backups and capacity tiers, rather than latency-sensitive workloads.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
