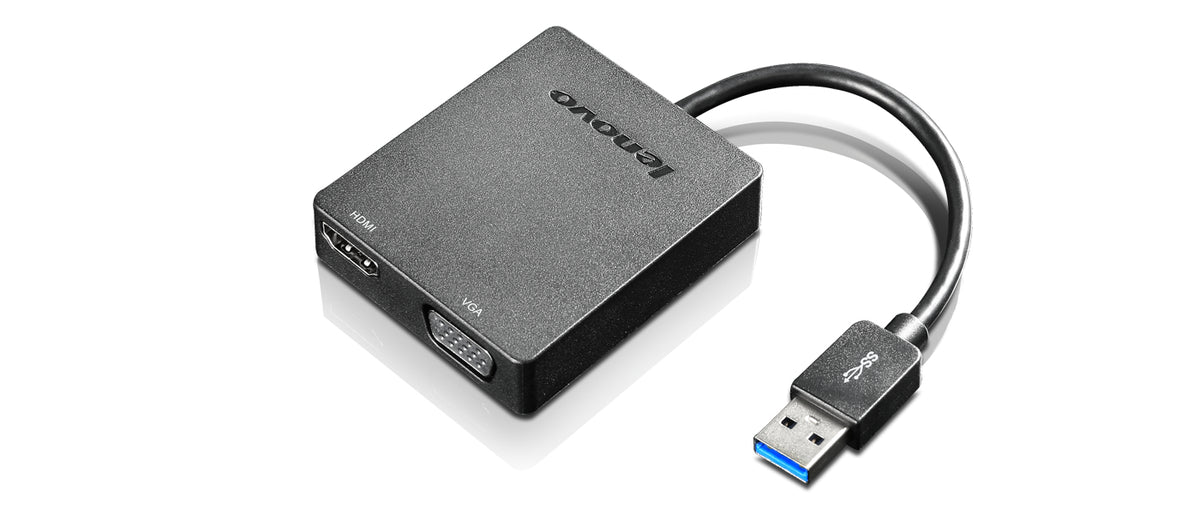

Lenovo 4X90H20061 | Universal USB 3.0 to VGA/HDMI Graphics Adapter

Lenovo 4X90H20061 | Universal USB 3.0 to VGA/HDMI Graphics Adapter

SKU:4X90H20061

Stock Status: Enquire

$135.36 inc. GST
$123.05 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Lenovo Universal USB 3.0 to VGA/HDMI graphics adapter turns a spare USB 3.0 port into an additional display output for a laptop or desktop. It acts as an external graphics card, so no extra graphics hardware is needed, and supports 1080p high-definition video over either the VGA or HDMI connection.

The dual-head design provides one VGA and one HDMI output for multi-monitor setups, with audio carried over the HDMI port only. It installs externally over USB, making it a simple way to extend or mirror a desktop in offices, meeting rooms and hot-desk environments.

Shop iptrading.com.au, Australia's IT hardware specialists.

Features

- Turns a USB 3.0 port into a VGA or HDMI display port
- Acts as an external graphics card, so no additional graphics card is needed
- Dual-head design supports multi-monitor setups over VGA and HDMI
- Supports 1080p high-definition video
- Installs externally via USB

Warranty

Lenovo offers a standard 1-year warranty across most product lines, including:
• PC Products: 1-year base warranty coverage for laptops, desktops, and other personal computing devices.
• Data Centre Products: 1-year base warranty for servers, storage, and networking hardware.
Warranty coverage includes repair or replacement for eligible defects in materials or workmanship under normal use conditions.
Extended Warranty Options:
IP Trading can offer extended warranty solutions tailored to your business needs. Please contact us for details on available Lenovo extended warranty packages.
https://support.lenovo.com/au/en/solutions/ht505088-product-warranty-and-other-agreements

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Host interface: USB 3.0 (SuperSpeed)
- Outputs: 1 x VGA, 1 x HDMI
- Single output mode: VGA up to 2048x1152 @ 60Hz
- Single output mode: HDMI up to 2560x1440 @ 50Hz
- Dual VGA and HDMI output (connect VGA first): up to 2048x1152 @ 60Hz
- Audio supported from the HDMI port only
- Form factor: External
- Colour: Black
- Platform: PC

FAQs

Q: What outputs does this adapter provide?
A: It provides one VGA output and one HDMI output, which can be used individually or together for a dual-display setup.

Q: Does the adapter carry audio?
A: Audio is supported from the HDMI port only. The VGA output carries video only.

Q: What is the maximum resolution?
A: In single output mode, VGA supports up to 2048x1152 at 60Hz and HDMI supports up to 2560x1440 at 50Hz.

Q: Can I use VGA and HDMI at the same time?
A: Yes. For dual output, connect the VGA display first. Both outputs then support up to 2048x1152 at 60Hz.

Q: Do I need a separate graphics card to use it?
A: No. The adapter works as an external graphics card, so no additional graphics card is required.

Q: What port does it connect to?
A: It connects to a USB 3.0 (SuperSpeed) port on a PC.
