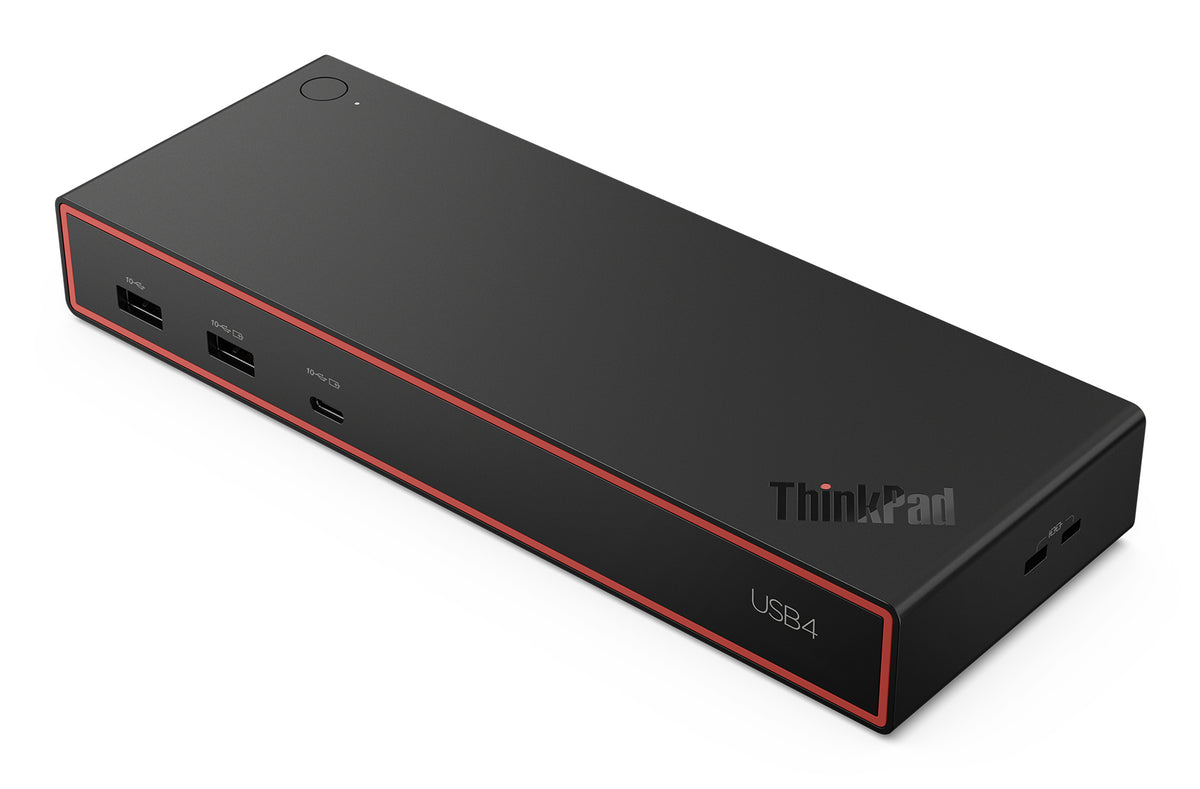

• Lenovo thinkpad usb4 dock 5000 black docking station with red trim multiple ports and 135w adapter shown from back
1 1

Lenovo

Lenovo 40BF0135AU | ThinkPad USB4 Dock 5000 Docking Station, 40Gbps, 135W Adapter

Lenovo 40BF0135AU | ThinkPad USB4 Dock 5000 Docking Station, 40Gbps, 135W Adapter

40BF0135AU

In stock:196

$322.58 inc. GST
$293.25 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The ThinkPad USB4 Dock 5000 is a premium wired docking station delivering 40Gbps USB4 upstream connectivity — four times the bandwidth of standard USB-C 3.2 Gen 2 docks. Designed for professionals who demand multi-monitor flexibility, it supports configurations up to 1x 8K@60Hz or 4x 4K@60Hz via dual DisplayPort 1.4, HDMI 2.1, and a full-video USB-C port. The bundled 135W power adapter enables up to 100W Power Delivery to your connected laptop, replacing a tangle of adapters with a single cable.

Beyond display connectivity, the dock provides four USB-A ports, a dedicated USB-C data port, Gigabit Ethernet, and a 3.5mm audio combo jack for a complete desktop workspace. Compatible with USB4, Thunderbolt 3/4, and USB-C Alt-Mode laptops, it also supports ThinkPad-specific features including MAC address pass-through, Wake-on-LAN, and mirrored power button functionality. Firmware is centrally manageable via Lenovo Dock Manager for IT administrators. Upgrade your network with gear from iptrading.com.au — Australia's IT hardware specialists.

Features

- 40Gbps USB4 upstream — 4× the bandwidth of USB-C 3.2 Gen 2 docks
- Multi-monitor support: up to 1x 8K@60Hz or 4x 4K@60Hz simultaneously
- 100W Power Delivery to host laptop via included 135W power adapter
- Single-cable connection eliminates multiple adapters and cables
- Compatible with USB4, Thunderbolt 3/4, and USB-C Alt-Mode host devices
- ThinkPad-specific: MAC address pass-through, Wake-on-LAN, mirrored power button
- Centrally manageable firmware via Lenovo Dock Manager for enterprise IT

Warranty

Lenovo offers a standard 1-year warranty across most product lines, including:
• PC Products: 1-year base warranty coverage for laptops, desktops, and other personal computing devices.
• Data Centre Products: 1-year base warranty for servers, storage, and networking hardware.
Warranty coverage includes repair or replacement for eligible defects in materials or workmanship under normal use conditions.
Extended Warranty Options:
IP Trading can offer extended warranty solutions tailored to your business needs. Please contact us for details on available Lenovo extended warranty packages.
https://support.lenovo.com/au/en/solutions/ht505088-product-warranty-and-other-agreements

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Upstream Connectivity: USB4 (40Gbps)
- Display Outputs: 2x DisplayPort 1.4, 1x HDMI 2.1, 1x USB-C (full video)
- Max Display Config: 1x 8K@60Hz or 4x 4K@60Hz
- USB-A Ports: 4x USB-A
- USB-C Ports: 1x USB-C (video), 1x USB-C (data)
- Network: 1x Gigabit Ethernet (RJ-45)
- Audio: 1x 3.5mm Combo Jack
- Power Delivery: 100W PD to host laptop
- Power Supply: 135W adapter included
- Compatibility: USB4, Thunderbolt 3/4, USB-C Alt-Mode
- Colour: Black

FAQs

Q: Can I buy the ThinkPad USB4 Dock 5000 (40BF0135AU) in Australia from IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware reseller stocking the Lenovo ThinkPad USB4 Dock 5000 with 135W Adapter (40BF0135AU). Contact our team for volume pricing, procurement, and local support.

Q: What is the difference between the 135W adapter variant and other USB4 Dock 5000 models?
A: The 40BF0135AU includes the 135W power adapter in the box, which enables the dock to deliver up to 100W Power Delivery to the connected laptop. This is the variant to choose if you do not already have a compatible power supply or need guaranteed 100W laptop charging.

Q: How many monitors can I connect to the ThinkPad USB4 Dock 5000?
A: The dock supports up to four simultaneous displays at 4K@60Hz, or a single 8K@60Hz display, using the two DisplayPort 1.4 outputs, one HDMI 2.1 port, and the full-video USB-C port.

Q: Is the ThinkPad USB4 Dock 5000 compatible with non-Lenovo laptops?
A: Yes. The dock is compatible with any laptop featuring a USB4, Thunderbolt 3/4, or USB-C Alt-Mode port. Advanced ThinkPad-specific features such as MAC address pass-through, Wake-on-LAN, and mirrored power button are only available on compatible Lenovo ThinkPad models.

Q: Can IT administrators manage the dock remotely?
A: Yes. Firmware updates and configuration can be managed centrally via the Lenovo Dock Manager application, making fleet-wide deployment and maintenance straightforward in enterprise environments.

Q: What is the upstream bandwidth of the ThinkPad USB4 Dock 5000 compared to older USB-C docks?
A: The dock uses a USB4 upstream connection providing 40Gbps of bandwidth — four times that of USB-C 3.2 Gen 2 (10Gbps) docks. This higher bandwidth supports multiple high-resolution displays and fast peripheral connections simultaneously without bottlenecking.
