Lenovo 12WN000NAU | ThinkSmart Core Gen 2 Teams Room Kit, Ultra 5, 16GB, Bar 180

Name: Lenovo 12WN000NAU | ThinkSmart Core Gen 2 Teams Room Kit, Ultra 5, 16GB, Bar 180
Brand: Lenovo
SKU: 12WN000NAU
Price: 7448.72 AUD
Availability: BackOrder

Authorised Lenovo Partner

SKU:12WN000NAU

Stock Status: Enquire

$7,448.72 inc. GST

$6,771.56 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

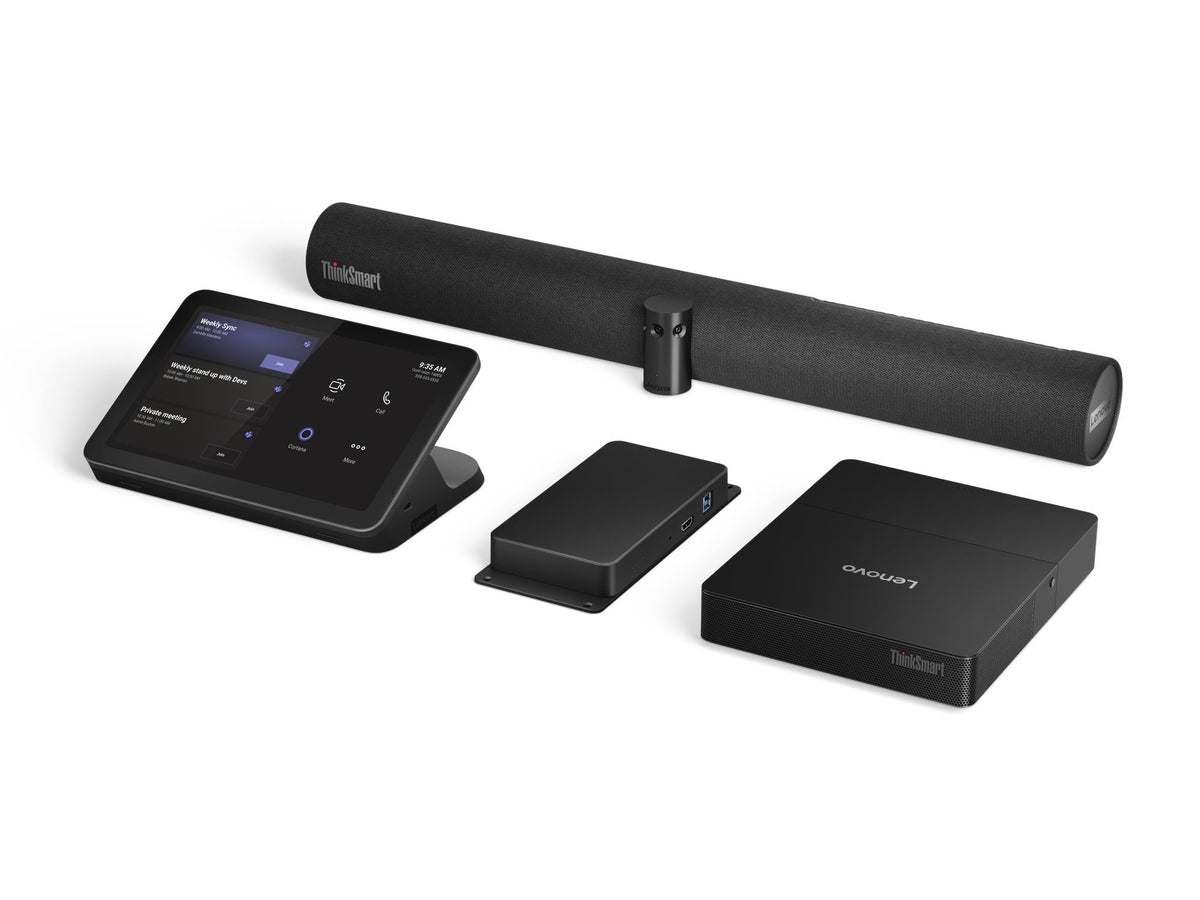

The ThinkSmart Core Gen 2 IP Full Room Kit for Microsoft Teams Rooms is a complete, Microsoft Teams certified video conferencing system for meeting rooms. This configuration combines a ThinkSmart Core Gen 2 compute unit with an Intel Core Ultra 5 135H processor, 16GB DDR5 memory and a 256GB NVMe SSD, a 10.1-inch Lenovo IP touch controller, and the ThinkSmart Bar 180 audio and camera bar. Dual LAN connectivity, Windows 11 IoT Enterprise and 3Y Premier Support are included.

The ThinkSmart Bar 180 pairs three cameras capable of up to 4K at 30fps and a 180 degree field of view with an 8-microphone array, noise cancellation and four speakers. BYOM ports let users run meetings from their own laptop, while Wi-Fi 6E, Bluetooth 5.3 and Intel vPro support simplify connectivity and remote management. A VESA mount bracket and cable management box are supplied for tidy room installation.

Features

- Microsoft Teams certified room system
- Complete kit with compute unit, 10.1-inch touch controller and Bar 180 audio and camera bar
- Triple-camera bar with up to 4K at 30fps and a 180 degree field of view
- 8-microphone array with noise cancellation for clear room audio
- BYOM ports for laptop-based conferencing
- Dual Ethernet LAN, Wi-Fi 6E and Bluetooth 5.3 connectivity
- Intel vPro for remote system management
- Mounting kit and VESA bracket included
- 3Y Premier Support and 3 years of software maintenance included

Warranty

Lenovo offers a standard 1-year warranty across most product lines, including:
• PC Products: 1-year base warranty coverage for laptops, desktops, and other personal computing devices.
• Data Centre Products: 1-year base warranty for servers, storage, and networking hardware.
Warranty coverage includes repair or replacement for eligible defects in materials or workmanship under normal use conditions.
Extended Warranty Options:
IP Trading can offer extended warranty solutions tailored to your business needs. Please contact us for details on available Lenovo extended warranty packages.
https://support.lenovo.com/au/en/solutions/ht505088-product-warranty-and-other-agreements

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Processor: Intel Core Ultra 5 135H, 14 cores (4P + 8E + 2LPE), 18 threads, up to 4.6GHz
- Graphics: Integrated Intel Arc Graphics
- Memory: 16GB DDR5-5600 (2x 8GB SODIMM)
- Storage: 256GB M.2 2280 PCIe 4.0 NVMe SSD (Opal 2.0)
- Operating system: Windows 11 IoT Enterprise for Collaboration with Microsoft Teams Rooms
- Controller: Lenovo IP Controller, 10.1" multi-touch, 1280x800, 16:10, PoE
- Camera: ThinkSmart Bar 180, 3x cameras, up to 4K@30fps, 180/54 degree (H/V) field of view
- Audio: 8x microphones, 4x speakers (2 woofers, 2 tweeters), noise cancellation
- Networking: 2x Ethernet (RJ-45), Intel Wi-Fi 6E AX211, Bluetooth 5.3
- Compute unit ports: 2x USB-C (10Gbps) with DisplayPort 1.4, BYOM ports, 3x USB-A (5Gbps), 1x USB-A (USB 2.0), 1x HDMI-in 2.1, 2x HDMI-out 2.1, 1x DC-in
- Power supply: 170W adapter
- Management: Intel vPro
- Dimensions (WxDxH): compute unit 185 x 220 x 38 mm, IP controller 248 x 151 x 100 mm, Bar 180 650 x 80 x 125 mm
- Included: BYOM USB-C cable (3m), VESA mount bracket, external adapter cage, removable cable management box

FAQs

Q: What is included in this ThinkSmart Core Gen 2 kit?
A: The kit includes the ThinkSmart Core Gen 2 compute unit, a Lenovo 10.1-inch IP touch controller and the ThinkSmart Bar 180 audio and camera bar. It also includes a BYOM USB-C cable (3m), VESA mount bracket, external adapter cage and a removable cable management box.

Q: Does it run Microsoft Teams Rooms?
A: Yes. It ships with Windows 11 IoT Enterprise for Collaboration and Microsoft Teams Rooms software, and is Microsoft Teams certified.

Q: What camera and audio hardware does the Bar 180 offer?
A: The ThinkSmart Bar 180 has three cameras supporting up to 4K at 30fps with a 180 degree horizontal field of view, eight microphones with noise cancellation and four speakers (two woofers and two tweeters).

Q: Can users connect their own laptop to the room system?
A: Yes. The compute unit has BYOM (bring your own meeting) ports, and a 3m USB-C to USB-C BYOM cable is supplied in the box.

Q: What network connectivity does this model have?
A: It provides dual RJ-45 Ethernet ports, Intel Wi-Fi 6E AX211 and Bluetooth 5.3. The IP controller is powered over PoE.

Q: What support is included with this SKU?
A: This configuration includes the 3Y Premier Support upgrade from the 3-year onsite base warranty, plus 3 years of software maintenance for the Smart Office solution.
