Juniper SRX5K-SCB3-R | SRX5000 Switch Control Board SCB3, Redundant Option

Juniper SRX5K-SCB3-R | SRX5000 Switch Control Board SCB3, Redundant Option

SRX5K-SCB3-R

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

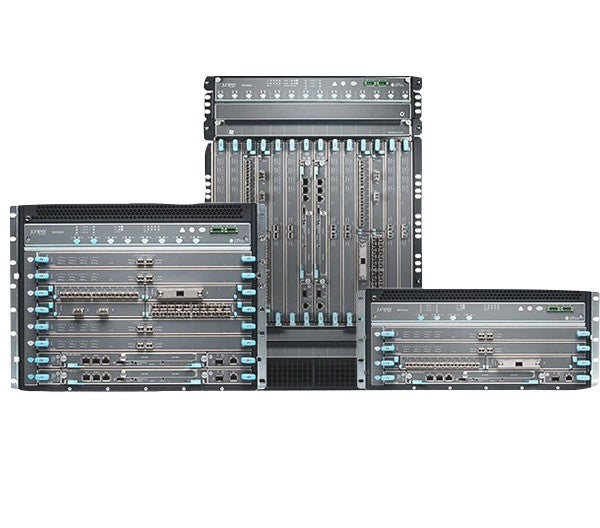

The Juniper SRX5000 Series SCB3 Switch Control Board (Redundant Option) is a high-capacity fabric module designed for SRX5400, SRX5600, and SRX5800 enterprise firewalls demanding maximum throughput and resilience. Installed in SCB slot 2 or 6, this redundant variant maintains full system performance even under fabric failure, delivering up to 374 Gbps per slot on an enhanced midplane. Featuring Juniper's next-generation XF2 fabric chip and fabric link speeds up to 10.2 Gbps, the SCB3-R ensures uninterrupted traffic forwarding for high-density service provider and large enterprise environments.

The SCB3-R supports both standard and enhanced midplane configurations and is compatible with the full range of SRX5000 MPC line cards including IOC2, IOC3, and IOC4 variants. It monitors critical system functions such as fan speed, board power status, and PDM status, while providing chassis-wide interconnection across all installed MPCs. Requires Junos OS 15.1X49-D10 or later for redundant SCB operation on SRX5800 platforms. Buy today from iptrading.com.au — fast shipping and expert service across Australia.

Features

- Provides fabric redundancy when installed in slot 2/6 alongside primary SCBs in slots 0 and 1
- Next-generation XF2 fabric chip delivers improved fabric performance and higher throughput
- Full system performance maintained under redundant fabric configuration for higher-capacity line cards
- Supports IOC2, IOC3, and IOC4 MPC line cards for maximum interface density
- Monitors fan speed, board power status, and PDM status for proactive chassis management
- Provides chassis-wide switch fabric interconnections across all installed MPCs
- Routing Engine installs directly into the SCB3 for integrated control plane operation
- Supports both standard and enhanced midplane configurations for scalable bandwidth growth

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Compatible platforms: SRX5400, SRX5600, SRX5800
- Supports standard and enhanced midplane configurations
- Fabric link speed: 8.36 Gbps (standard midplane), 10.2 Gbps (enhanced midplane)
- Bandwidth per slot (standard midplane): 205 Gbps redundant / 308 Gbps non-redundant
- Bandwidth per slot (enhanced midplane): 249 Gbps redundant / 374 Gbps non-redundant
- Next-generation XF2 fabric chip
- 2x 10-Gigabit Ethernet SFP+ ports (reserved for future use)
- 1x Routing Engine slot
- Installs in SCB slot 2 or 6 (redundant fabric configuration)
- Weight: 10.14 lb (4.6 kg)
- Minimum Junos OS: 15.1X49-D10 (SRX5800 redundant SCB operation)

FAQs

Q: What is the difference between the SRX5K-SCB3 and the SRX5K-SCB3-R?
A: The SRX5K-SCB3-R is the Redundant Option variant of the SCB3. It installs in SCB slot 2 or 6 to provide fabric redundancy alongside the primary SCBs in slots 0 and 1. The redundant configuration ensures full system performance is maintained if a primary SCB fails, making it essential for mission-critical deployments.

Q: Which SRX5000 chassis models support the SRX5K-SCB3-R?
A: The SRX5K-SCB3-R is compatible with the SRX5400, SRX5600, and SRX5800 firewall chassis. For redundant SCB operation on the SRX5800, Junos OS 15.1X49-D10 or later is required.

Q: What MPC line cards are supported with the SCB3-R?
A: The SCB3-R supports SRX5000 MPC line cards including IOC2 (SRX5K-MPC), IOC3 variants (SRX5K-MPC3-40G10G and SRX5K-MPC3-100G10G), and IOC4 variants, enabling high-density interface configurations in the chassis.

Q: Does the SRX5K-SCB3-R support enhanced midplane configurations?
A: Yes. The SCB3-R supports both standard and enhanced midplane configurations. With an enhanced midplane, it delivers fabric link speeds of up to 10.2 Gbps and up to 374 Gbps per slot in non-redundant mode, providing significantly higher capacity for demanding environments.

Q: Can I purchase the SRX5K-SCB3-R in Australia?
A: Yes. iptrading.com.au stocks Juniper SRX5000 Series modules and accessories for B2B customers across Australia. We offer fast shipping and expert pre-sales and post-sales support. Contact our team for availability, lead times, and volume pricing.

Q: What system management functions does the SCB3 perform?
A: The SCB3 monitors and controls critical chassis functions including fan speed, board power status, and PDM (Power Distribution Module) status. It also provides fabric interconnections to all MPCs within the chassis, acting as the central switching and control plane for the SRX5000 platform.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
