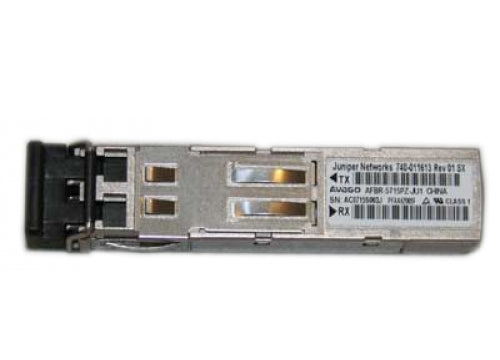

• Silver metal juniper srx-sfp-1ge-lh-et sfp+ transceiver with black connector housing and printed labeling for 1g single-mode use
1 1

Juniper

Juniper SRX-SFP-1GE-LH-ET | 1G SFP Transceiver, Single-Mode, 70km, 1550nm, Extended Temp -40~85°C

Juniper SRX-SFP-1GE-LH-ET | 1G SFP Transceiver, Single-Mode, 70km, 1550nm, Extended Temp -40~85°C

SRX-SFP-1GE-LH-ET

Stock Status: Enquire

$2,476.07 AUD
$2,476.07 AUD
$2,476.07 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The SRX-SFP-1GE-LH-ET is a 1000BASE-LH SFP transceiver engineered for Juniper SRX Series Security Gateways, delivering 1 Gbps connectivity over single-mode fibre up to 70 km at 1550 nm. Its extended temperature rating of -40°C to +85°C makes it suitable for deployment in harsh or industrial environments where standard commercial-grade optics would fail.

Designed exclusively for Juniper SRX platforms — including the SRX5400, SRX5600, and SRX5800 — this hot-swappable LC duplex module integrates seamlessly into your existing Juniper security infrastructure. Note that the high transmit power requires appropriate optical attenuation on shorter links. Order now at iptrading.com.au — trusted by Australian IT professionals.

Features

- Extended temperature range (-40°C to +85°C) for harsh or industrial deployments
- Long-haul 1 GbE connectivity over single-mode fibre up to 70 km
- Hot-insertable and hot-removable for minimal network disruption
- Designed specifically for Juniper SRX Series Security Platforms
- Compatible with SRX5400, SRX5600, SRX5800 and other SRX Series gateways
- High Tx power — optical attenuation recommended for shorter fibre spans

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Data Rate: 1000 Mbps (1 Gbps)
- Ethernet Standard: 1000BASE-LH (ZX)
- Form Factor: SFP
- Fibre Type: Single-Mode Fibre (SMF), 9/125 µm
- Connector: LC Duplex
- Wavelength: 1550 nm
- Maximum Reach: 70 km
- Operating Temperature: -40°C to +85°C (Extended Temperature)

FAQs

Q: What Juniper platforms is the SRX-SFP-1GE-LH-ET compatible with?
A: This SFP transceiver is designed specifically for Juniper SRX Series Security Gateways, including the SRX5400, SRX5600, SRX5800, and other SRX Series platforms that accept standard SFP modules.

Q: Why choose the SRX-SFP-1GE-LH-ET over a standard 1G LH transceiver?
A: The ET (Extended Temperature) variant operates from -40°C to +85°C, making it suitable for industrial environments, outdoor enclosures, or locations with extreme temperature variations where standard commercial-grade optics (typically 0°C to +70°C) would be unreliable.

Q: What is the maximum fibre reach supported by this transceiver?
A: The SRX-SFP-1GE-LH-ET supports 1000BASE-LH transmission over single-mode fibre (9/125 µm) at 1550 nm, with a maximum reach of 70 km.

Q: Do I need to power down my SRX gateway to install this transceiver?
A: No. The SRX-SFP-1GE-LH-ET is hot-insertable and hot-removable, allowing you to install or replace it without powering down the host device, minimising network downtime.

Q: Is an attenuator required when using this transceiver on short fibre runs?
A: Yes. This transceiver has a high transmit power suitable for spans up to 70 km. On shorter fibre links, optical attenuation should be used to avoid saturating the receiver at the far end.

Q: Can I purchase the SRX-SFP-1GE-LH-ET in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is a trusted Australian B2B IT hardware reseller supplying Juniper transceivers and accessories to IT professionals and businesses across Australia. Contact us or order directly online.
