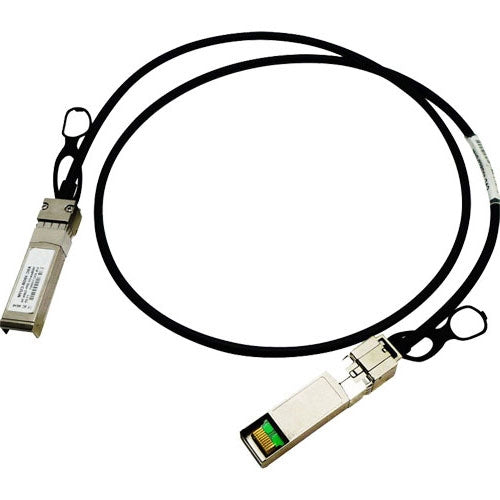

• Black Juniper SRX-SFP-10GE-DAC-3M 10GbE SFP+ passive twinax cable with silver connectors and green LED indicator
1 1

Juniper

Juniper SRX-SFP-10GE-DAC-3M | 10GbE SFP+ DAC Twinax Cable, Passive, 3M, SRX-Qualified

Juniper SRX-SFP-10GE-DAC-3M | 10GbE SFP+ DAC Twinax Cable, Passive, 3M, SRX-Qualified

SRX-SFP-10GE-DAC-3M

Stock Status: Enquire

$74.23 AUD
$74.23 AUD
$74.23 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The Juniper SRX-SFP-10GE-DAC-3M is a passive 10 Gigabit Ethernet SFP+ Direct Attach Copper (DAC) Twinax cable designed for short-reach, high-speed interconnects in data centre and enterprise environments. At 3 metres, this 30AWG cable delivers 10.31 Gb/s throughput with ultra-low latency and minimal power draw — making it a cost-effective alternative to optical transceivers for rack-to-rack or top-of-rack connectivity. Qualified and coded specifically for Juniper SRX Security Platforms, it supports 10GBASE-CR Ethernet, 8G Fibre Channel, and 10G FCoE.

MSA-compliant with SFF-8431, SFF-8432, and IEEE 802.3ae standards, this plug-and-play cable requires no additional drivers, active components, or external power. Hot-pluggable and compatible with Juniper 10G switches, routers, NICs, and network storage systems, it integrates seamlessly into existing Juniper infrastructure running Junos OS 18.3R1 and later. Order today from iptrading.com.au — your local source for enterprise-grade networking solutions.

Features

- Passive design — no active components, resulting in low power consumption and high reliability
- Cost-effective alternative to optical fibre for short-distance rack-to-rack or top-of-rack connectivity
- Hot-pluggable SFP+ form factor for easy installation without downtime
- Factory coded and qualified for Juniper SRX Security Platform series
- Supports 10GBASE-CR Ethernet, 8G Fibre Channel (FC), and 10G FCoE for converged network environments
- Low insertion loss and ultra-low crosstalk for signal integrity at 10.31 Gb/s
- Plug-and-play — no additional drivers, software, or external power supply required
- MSA-compliant (SFF-8431, SFF-8432, SFF-8472) and IEEE 802.3ae certified

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part Number: 740-030077
- Cable Type: SFP+ to SFP+ Direct Attach Copper (Twinax / DAC)
- Data Rate: 10 Gigabit Ethernet — 10.31 Gb/s
- Cable Length: 3 metres (approx. 9.84 ft)
- Cable Gauge: 30AWG
- Connector Type: SFP+ to SFP+ (MSA-compliant 20-pin edge type)
- Cable Mode: Passive (no active components)
- Standards: IEEE 802.3ae 10GBASE-CR, SFF-8431, SFF-8432, SFF-8472, SFI
- Management Interface: 2-wire TWI/I2C (MSA memory map)
- Hot-Pluggable: Yes
- Junos OS Support: 18.3R1 and later
- Platform Qualification: Juniper SRX Security Platform series

FAQs

Q: What platforms is the SRX-SFP-10GE-DAC-3M qualified for?
A: This DAC cable is specifically coded and qualified for Juniper SRX Security Platforms. It is also compatible with Juniper 10G switches, routers, NICs, and network storage systems running Junos OS 18.3R1 or later.

Q: Is this cable compatible with non-Juniper equipment?
A: The SRX-SFP-10GE-DAC-3M is MSA-compliant (SFF-8431, SFF-8432, SFF-8472) and may be physically compatible with third-party SFP+ ports; however, it is coded for Juniper platforms. For guaranteed interoperability and vendor support, it is recommended for use in Juniper-to-Juniper environments.

Q: Does this cable require any drivers or external power?
A: No. The SRX-SFP-10GE-DAC-3M is a passive, plug-and-play cable with no active components, requiring no additional drivers or external power supply. It draws power directly from the host SFP+ port.

Q: What protocols does this DAC cable support beyond standard Ethernet?
A: In addition to 10GBASE-CR Ethernet, the cable supports 8G Fibre Channel (FC) and 10G Fibre Channel over Ethernet (FCoE), making it suitable for converged storage and data network environments.

Q: How does a DAC cable compare to an optical transceiver for this use case?
A: For short-reach connections (up to 5–7 metres), passive DAC cables like this 3M variant offer a more cost-effective and energy-efficient alternative to optical transceivers. They eliminate the need for separate optical modules and fibre patch cables while delivering equivalent 10GbE throughput with low latency.

Q: Can I purchase the SRX-SFP-10GE-DAC-3M in Australia from IP Trading?
A: Yes. IP Trading is an Australian B2B IT hardware reseller stocking Juniper networking products including this SFP+ DAC cable. Visit iptrading.com.au or contact the team directly for pricing, availability, and volume orders.
