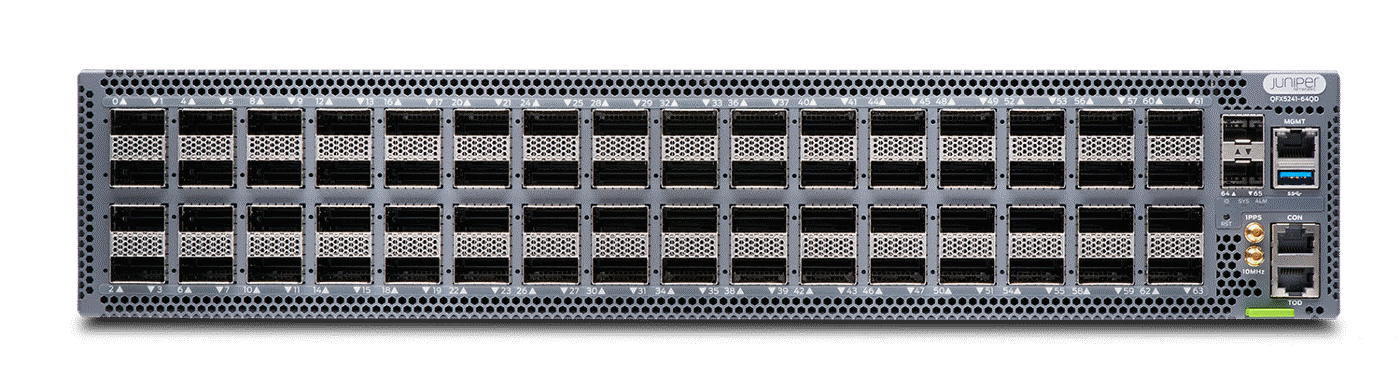

• Back of gray metal juniper qfx5241 64x800gbe qsfp-dd data centre switch with multiple ports and ventilation holes
1 1

Juniper

Juniper QFX5241-64QD-DO-T2 | QFX5241 64x800GbE QSFP-DD Data Centre Switch, DC PSU, Port-Side Intake Airflow, ORv3 2OU Tray

Juniper QFX5241-64QD-DO-T2 | QFX5241 64x800GbE QSFP-DD Data Centre Switch, DC PSU, Port-Side Intake Airflow, ORv3 2OU Tray

QFX5241-64QD-DO-T2

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The Juniper QFX5241-64QD-DO-T2 is a high-density, ultra-high-speed data centre switch delivering 64 x 800GbE QSFP-DD ports, purpose-built for hyperscale and enterprise spine/core deployments demanding maximum throughput and port density. This configuration ships complete and rack-ready, including a tool-less 4-post rack mount kit, DC power supply, fan modules with port-side intake (front-to-back) airflow, and an ORv3 2OU tray — enabling fast, flexible deployment in modern open rack infrastructure. Designed for AI/ML fabric, cloud, and high-performance computing environments, the QFX5241 delivers the switching capacity and low latency needed to support next-generation 800G workloads at scale. The included accessories ensure day-one readiness without additional hardware procurement. Buy today from iptrading.com.au — fast shipping and expert service across Australia.

Features

- 64 x 800GbE QSFP-DD ports for maximum spine/core port density
- Hyperscale-ready for AI/ML, cloud, and HPC fabric deployments
- DC power supply included for data centre power infrastructure compatibility
- Port-side intake (front-to-back) airflow for hot-aisle/cold-aisle data centre layouts
- Tool-less 4-post rack mount kit for rapid, cable-friendly installation
- ORv3 2OU tray included for Open Rack v3 / OCP-aligned enclosures
- Ships as a complete, ready-to-deploy bundle — no separate accessory procurement required
- Part of Juniper's QFX5241 series with Junos OS support and automation capabilities

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage.
IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options.
https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 64 x 800GbE QSFP-DD ports
- Switching capacity: up to 102.4 Tbps aggregate
- Form factor: Data centre top-of-rack / spine
- Airflow: Port-side intake (front-to-back)
- Power supply: DC PSU included
- Rack mount: Tool-less 4-post rack mount kit included
- Open Rack support: ORv3 2OU tray included
- Rack unit height: 2U (ORv3 2OU form factor)
- Platform: Juniper QFX5241 series
- Fan modules included

FAQs

Q: What ports does the QFX5241-64QD-DO-T2 provide?
A: The switch provides 64 x 800GbE QSFP-DD ports, supporting the latest generation of high-speed optics and DAC/AOC cables for ultra-high-density data centre interconnects.

Q: What accessories are included in this SKU?
A: This bundle includes a tool-less 4-post rack mount kit, a DC power supply, fan modules configured for port-side intake (front-to-back) airflow, and an ORv3 2OU tray for open rack deployment.

Q: What does 'port-side intake' airflow mean for data centre planning?
A: Port-side intake means cooling air enters from the front (port/cable side) of the switch and exhausts from the rear. This is suited to hot-aisle/cold-aisle layouts where cables face the cold aisle.

Q: Is this switch compatible with Open Rack v3 (ORv3) deployments?
A: Yes. The included ORv3 2OU tray enables the QFX5241 to be installed in Open Rack v3 enclosures, commonly used in hyperscale and OCP-aligned data centre environments.

Q: What use cases is the QFX5241 designed for?
A: The QFX5241 is designed for AI/ML GPU cluster fabrics, hyperscale cloud spine/core, and high-performance computing environments where 800G port density and ultra-low latency are critical requirements.

Q: Can I purchase the QFX5241-64QD-DO-T2 in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) supplies Juniper QFX series switches to Australian businesses with fast local shipping and expert pre/post-sales support. Contact the team for availability and pricing.
