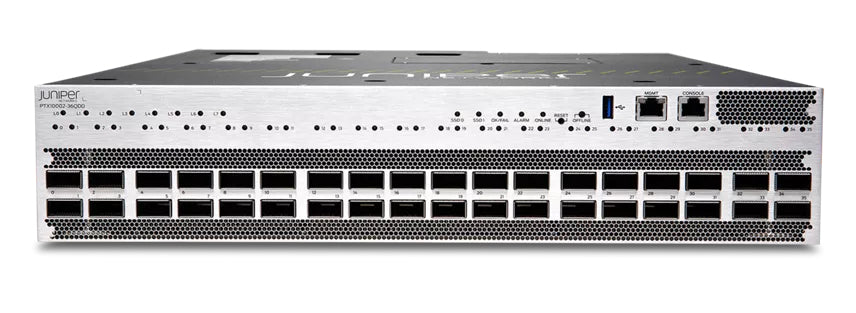

Juniper PTX10002-36QDD | PTX10002 36-Port QSFP-DD800 Core Router, 2U, Redundant PSU

Authorised Juniper Partner

SKU:PTX10002-36QDD

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Juniper PTX10002-36QDD is a 2U fixed-configuration core router with 36 x 800GbE QSFP-DD800 ports, built on Juniper Express 5 silicon. It delivers 28.8 Tbps of system throughput and up to 10B pps forwarding in a single chassis, making it well suited to cloud, service provider and enterprise core and transport networks.

This configuration ships with redundant power supplies and hot-swappable fan trays for resilient operation. It supports MPLS, SR-MPLS, SRv6, EVPN/VXLAN and inline MACsec up to 800Gbps, and accepts 400GbE ZR/ZR+ and 800GbE extended-reach optics for long-haul and data centre interconnect deployments.

Features

- Juniper Express 5 silicon with inline MACsec up to 800Gbps
- 1+1 power supply redundancy and 2+1 fan redundancy
- MPLS-TE, MPLS LSR, SR-MPLS (SPRING v4/v6) and SRv6
- EVPN/VXLAN, ECN/PFC, RoCEv2 and in-band telemetry
- Adaptive load balancing, hierarchical QoS, firewall filters/ACL, DDoS control plane protection, J-Flow/sFlow
- Supports 400GbE ZR/ZR+ and 800GbE extended-reach optics

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 36 x 800GbE QSFP-DD800 ports (also 72 x 400GbE via dual LC/CS, 36 x 400GbE QSFP56-DD, 288 x 100GbE with breakout)
- System throughput: 28.8 Tbps
- Forwarding capacity: up to 10B pps
- Max port density: 144 x 10GbE, 144 x 25GbE, 36 x 40GbE, 288 x 50GbE, 288 x 100GbE, 72 x 200GbE, 72 x 400GbE, 36 x 800GbE
- CPU: Intel Ice Lake-D 10-core 3.0 GHz
- RAM: 128 GB
- Storage: 2 x 200 GB SSD
- Packet buffer: 32 GB
- Power supply: 2 x 3000 W AC/DC (36x800G or 72x400G); 2 x 2200 W AC/DC (36x400G mode)
- Cooling: 3 hot-swappable redundant front-to-back fans
- Form factor: 2U, 44 x 8.89 x 64.7 cm, 25.2 kg
- Operating temperature: 0 to 46 degrees C

FAQs

Q: How many ports does the PTX10002-36QDD have?
A: It provides 36 x 800GbE QSFP-DD800 ports. Depending on optics and breakout, it can also run 72 x 400GbE, 36 x 400GbE QSFP56-DD or up to 288 x 100GbE.

Q: What is the throughput of the PTX10002-36QDD?
A: The system delivers 28.8 Tbps of throughput with forwarding capacity of up to 10B pps in a 2U chassis.

Q: Does it support power and cooling redundancy?
A: Yes. It offers 1+1 power supply redundancy and 2+1 hot-swappable fan redundancy with front-to-back airflow.

Q: Which routing and segment routing protocols are supported?
A: It supports MPLS-TE, MPLS LSR, SR-MPLS (SPRING v4/v6) and SRv6, along with EVPN/VXLAN for data centre and transport use cases.

Q: Does the PTX10002-36QDD support encryption?
A: Yes. Express 5 silicon provides inline MACsec at up to 800Gbps.

Q: Can it use long-reach optics?
A: Yes. It supports 400GbE ZR/ZR+ and 800GbE extended-reach optics for data centre interconnect and long-haul links.
