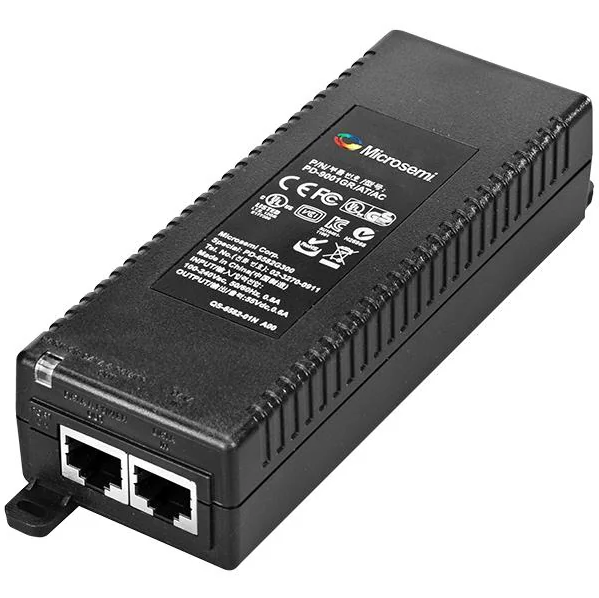

Juniper PD-9001GR-AT-AC | PD-9001GR 1-Port Gigabit PoE+ Injector, 30W, AU Plug

Juniper PD-9001GR-AT-AC | PD-9001GR 1-Port Gigabit PoE+ Injector, 30W, AU Plug

Authorised Juniper Partner

SKU:PD-9001GR-AT-AC

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The PD-9001GR 1-port Gigabit PoE+ midspan injector delivers up to 30W over Ethernet to powered devices, using an AC input with an Australian 240V plug. It complies with IEEE 802.3at with 2-event classification and is backward compatible with 802.3af, making it a practical way to power Wi-Fi access points, PTZ cameras and video phones where no PoE switch port is available. It is also supplied for use with Mist access points.

The injector passes 10/100/1000 Mbps data through shielded RJ-45 connectors and adds 55V DC nominal power on pairs 4/5 and 7/8. Non-standard Ethernet terminals are automatically detected and protected, and low-power devices receive only the power they need. The compact housing suits WLAN access point and IP camera installations.

Features

- IEEE 802.3at compliant with 2-event classification
- Backward compatible with IEEE 802.3af devices
- 30W output power guaranteed
- Supports 10/100/1000Base-T applications
- Automatic detection and protection of non-standard Ethernet terminals
- Low-power devices receive only the power they need
- Compact design fits WLAN access point and IP camera installations

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 1 x 10/100/1000 Mbps
- Output power: up to 30W
- Standards: IEEE 802.3at PoE+ with 2-event classification, backward compatible with 802.3af
- AC input: 100-240V, 50/60 Hz, 0.67 A
- Plug type: AU (240V)
- Nominal PoE output voltage: 55V DC
- PoE output pairs: 4/5 (+), 7/8 (-)
- Connectors: shielded RJ-45, EIA 568A and 568B
- Indicators: AC power (yellow), channel power (green)
- Dimensions (L x W x H): 140 x 51.8 x 33.5 mm
- Net weight: 380 g
- Operating temperature: -20 to +55 C (-20 to +40 C ambient at 30W)
- Operating humidity: up to 90%, non-condensing

FAQs

Q: How much power does the PD-9001GR deliver?
A: It provides up to 30W on a single port at a nominal 55V DC, in line with IEEE 802.3at PoE+.

Q: Is it compatible with 802.3af devices?
A: Yes. It is backward compatible with IEEE 802.3af, and low-power devices receive only the power they need.

Q: What kinds of devices can it power?
A: It suits Wi-Fi access points, PTZ cameras and video phones that need PoE or PoE+, and it is supplied for Mist access points.

Q: Does it support Gigabit speeds?
A: Yes. The single port supports 10/100/1000 Mbps data rates through shielded RJ-45 connectors.

Q: What power input does this model use?
A: This AC model accepts 100-240V at 50/60 Hz and is supplied with an Australian 240V plug.

Q: Does the injector replace a PoE switch?
A: It is a midspan device that adds PoE to a single link between a non-PoE switch or router and a powered device, so it is suited to individual drops rather than whole-network power.
