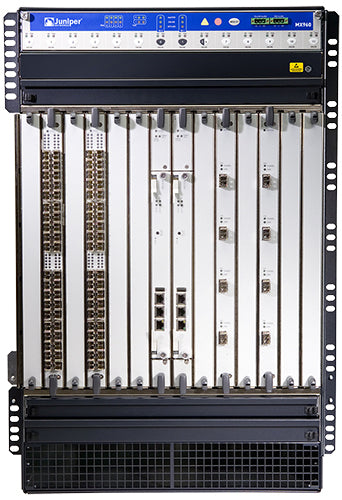

• Black juniper mx960 base chassis network switch with multiple white silver module slots blue led indicators and ventilation grille
1 1

Juniper

Juniper MX960BASE-DC | MX960 Base Chassis, DC Power, Midplane, 2x SCB-E, Gigabit

Juniper MX960BASE-DC | MX960 Base Chassis, DC Power, Midplane, 2x SCB-E, Gigabit

MX960BASE-DC

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The Juniper MX960 is a carrier-grade modular router chassis designed for large-scale enterprise core, edge, and service provider deployments. This DC-powered base configuration includes the MX960 chassis with midplane and two SCB-E (Switch Control Boards) for redundant control plane operations, delivering the high availability and scalability demanded by mission-critical networks. Supporting the full MX Series line card ecosystem, the MX960 scales to terabit-level forwarding capacity and provides a robust foundation for MPLS, IP/VPN, carrier Ethernet, and advanced routing workloads.

The MX960 BASE-DC bundle integrates seamlessly into existing Juniper networks running Junos OS, enabling unified policy management, advanced traffic engineering, and carrier-class redundancy features including graceful Routing Engine switchover (GRES) and non-stop routing (NSR). Purpose-built for environments requiring maximum slot density and modular expansion, it supports diverse interface types across all major speeds. Visit iptrading.com.au to secure your order — enterprise-grade hardware with expert support.

Features

- Carrier-grade modular chassis with 14 slots for high-density line card deployment
- Dual SCB-E modules provide 1:1 redundancy for switch fabric and control plane
- DC power configuration suited to telco and data centre power plant environments
- Midplane architecture enables full slot-to-slot connectivity and backplane redundancy
- Supports Junos OS for unified routing, switching, and security policy management
- Compatible with full MX Series MPC/MIC ecosystem across Gigabit to 100GbE+ speeds
- Graceful Routing Engine Switchover (GRES) and Non-Stop Routing (NSR) for hitless failover
- Scales to multi-terabit forwarding capacity with appropriate line card population
- Supports MPLS, IP/VPN, BGP, OSPF, IS-IS, and advanced traffic engineering protocols
- Field-replaceable, hot-swappable components for maximum operational uptime

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis: MX960 14-slot modular router chassis
- Power: DC power supply configuration
- Included: Midplane for full backplane connectivity
- Included: 2x Switch Control Board E (SCB-E) for redundant control and switch fabric
- Form Factor: 16U rack-mountable chassis
- Interface Support: Gigabit Ethernet and multi-rate line cards via MPC/MIC modules
- Switching Capacity: Scales to multi-terabit per slot with appropriate MPCs
- Routing Engine: Supports RE-S series Routing Engines (sold separately)
- Redundancy: Dual SCB-E provides 1:1 control plane and fabric redundancy
- Operating System: Junos OS
- Colour: Black

FAQs

Q: What is included in the MX960BASE-DC bundle?
A: The MX960BASE-DC includes the MX960 base chassis with midplane, two SCB-E (Switch Control Board E) modules for redundant fabric and control plane, and DC power infrastructure. Line cards, Routing Engines, power supply units, and fan trays are typically ordered separately.

Q: What is the difference between AC and DC power on the MX960?
A: The MX960BASE-DC is configured for DC power input, which is standard in carrier and data centre environments with -48V DC plant power. AC-powered variants are available for enterprise environments with standard mains power. Ensure your facility provides compatible DC power before ordering.

Q: What line cards are compatible with the MX960 chassis?
A: The MX960 supports a wide range of Juniper MPC (Modular Port Concentrator) and MIC (Modular Interface Card) line cards, supporting speeds from Gigabit Ethernet through 100GbE and beyond. Compatibility depends on the SCB generation and Junos OS version in use.

Q: Does the MX960 support high availability and non-stop routing?
A: Yes. With dual SCB-E modules and supported Routing Engines, the MX960 enables Graceful Routing Engine Switchover (GRES), Non-Stop Routing (NSR), and Non-Stop Bridging (NSB), ensuring sub-second failover with no disruption to forwarding during control plane events.

Q: Can I purchase the MX960BASE-DC in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware reseller supplying Juniper enterprise and service provider routing equipment including the MX960BASE-DC. Contact the team for pricing, lead times, and configuration advice tailored to your deployment.

Q: What deployment scenarios suit the Juniper MX960?
A: The MX960 is ideal for service provider edge and core routing, large enterprise WAN aggregation, data centre interconnect, MPLS/VPN backbone, and carrier Ethernet deployments where high slot density, redundancy, and multi-terabit scalability are required.
