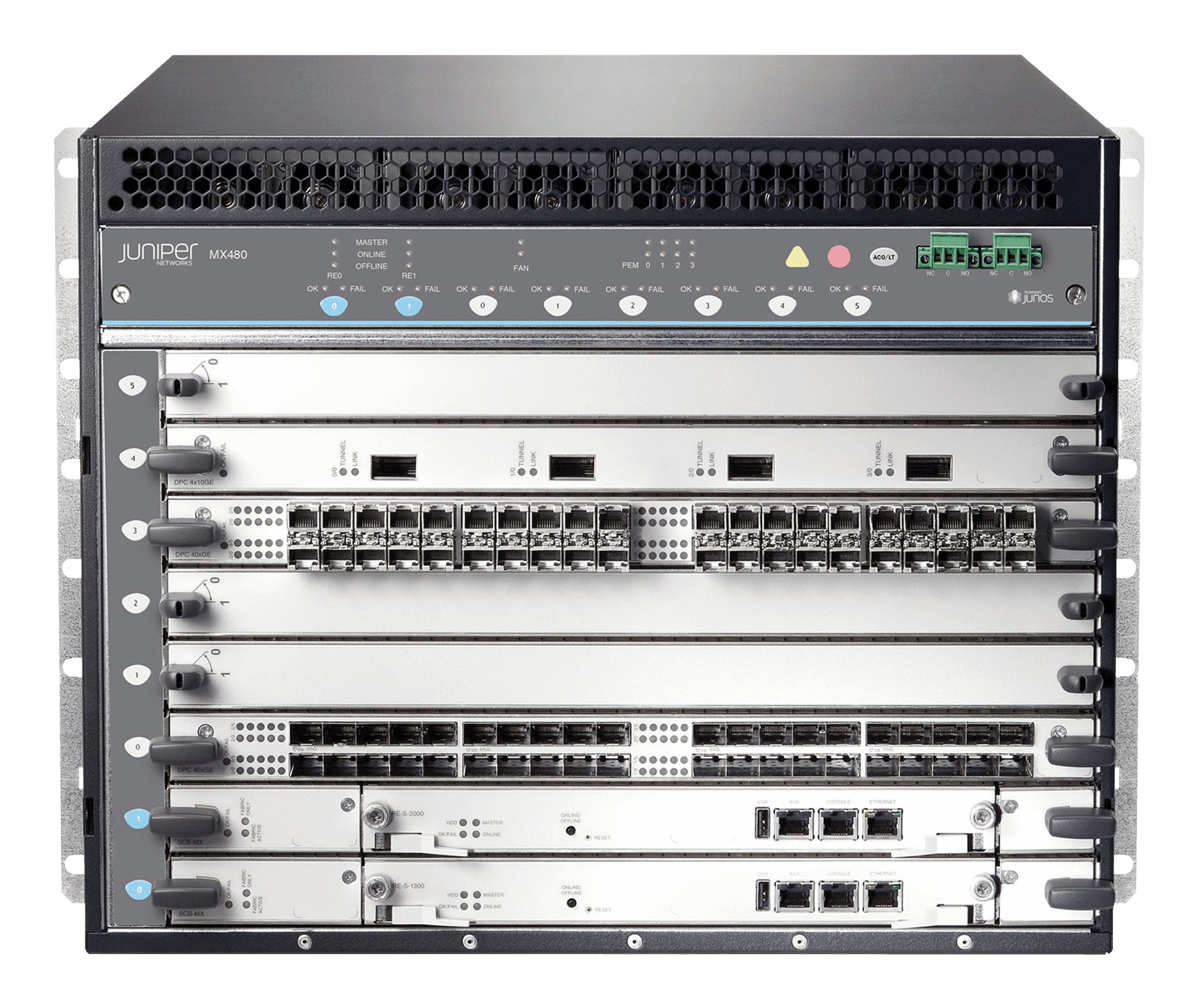

Juniper MX480-PREMIUM3-AC | MX480 Modular Edge Router, Premium3 Bundle, Redundant RE, SCBE, AC

Authorised Juniper Partner

SKU:MX480-PREMIUM3-AC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Juniper MX480 Premium3 AC bundle is an 8-slot, 8U modular edge router for service provider and cloud edge deployments that need carrier-grade high availability. This Premium3 bundle combines the enhanced midplane with redundant Routing Engines, redundant SCBE switch control boards and redundant AC power, giving a complete resilient chassis foundation for core and aggregation roles.

The chassis provides 6 DPC/MPC line card slots plus 2 SCB slots, with system capacity up to 9 Tbps and up to 1.5 Tbps of switch fabric capacity per slot. It runs Junos OS on the programmable Trio chipset, supports 10GbE, 40GbE and 100GbE interfaces, and shares common FRUs with the MX240 and MX960 platforms.

Features

- Enhanced midplane increases switching fabric bandwidth beyond the standard chassis
- Redundant Routing Engines for stateful control plane failover
- Redundant SCBE switch control boards for switch fabric redundancy
- Redundant hot-swappable AC power supplies
- Common FRUs shared with MX240 and MX960 platforms
- Supports 10GbE, 40GbE, 100GbE, SONET/SDH, ATM and PDH interfaces
- Powered by Junos OS and the programmable Trio chipset

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8U modular rack-mount chassis
- Enhanced midplane (CHAS-BP3-MX480-S)
- Redundant Routing Engines
- Redundant SCBE switch control boards
- Redundant AC power supplies, 100-240 VAC
- 6 DPC/MPC line card slots plus 2 SCB slots
- System capacity: up to 9 Tbps
- Switch fabric capacity: up to 1.5 Tbps per slot
- Dimensions (W x H x D): 44.3 x 35.6 x 70.5 cm including cable manager
- Chassis weight (empty spare): 29.71 kg, maximum 81.6 kg
- Mounting: front or centre
- Operating temperature: 0 to 40 C, humidity 5 to 90 percent non-condensing

FAQs

Q: What is included in the MX480-PREMIUM3-AC bundle?
A: The bundle includes the MX480 chassis with enhanced midplane, redundant Routing Engines, redundant SCBE switch control boards and redundant AC power supplies.

Q: How many line cards does the MX480 support?
A: The chassis has 6 slots for DPC or MPC line cards, plus 2 slots reserved for switch control boards.

Q: Is this the AC or DC power model?
A: This SKU is the AC model, operating from 100-240 VAC. A separate DC variant exists for -40 to -72 VDC environments.

Q: What is the benefit of the enhanced midplane?
A: The enhanced midplane increases switching fabric bandwidth beyond the standard chassis, supporting up to 1.5 Tbps per slot.

Q: Do MX480 components work with other MX platforms?
A: Yes, the MX480 shares common FRUs with the MX240 and MX960, which simplifies sparing across a mixed MX deployment.

Q: What interfaces can the MX480 support?
A: Depending on the line cards installed, it supports 10GbE, 40GbE and 100GbE Ethernet as well as SONET/SDH, ATM and PDH interfaces.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
