1 4

Juniper

Juniper MX301-M-BASE-DC-FS | MX301 1U Edge Router, 1.6 Tbps, 26-Port, DC, 64G RAM

Juniper MX301-M-BASE-DC-FS | MX301 1U Edge Router, 1.6 Tbps, 26-Port, DC, 64G RAM

MX301-M-BASE-DC-FS

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The Juniper MX301 is a high-density 1U edge router delivering up to 1.6 Tbps throughput on Juniper's sixth-generation Trio silicon — purpose-built for enterprise WAN, metro edge, mobile backhaul, and cloud edge deployments. This DC-powered base configuration ships with 64GB RAM and front-to-rear airflow, supporting up to 26 flexible WAN ports scalable from 1/10 GbE through to 400 GbE. Key differentiators include inline MACsec and IPsec encryption at line rate, full HQoS, and native 5G CUPS support with N3/N4/N6/N9 interfaces — all managed through Junos OS.

The MX301 supports L2/L3 VPN, VPLS, IP/MPLS, and advanced subscriber management, making it a versatile platform for service providers and large enterprises evolving toward AI-native edge and 5G architectures. Redundant DC power supplies with load balancing, TPM hardware security, and seamless interoperability with existing MX Series infrastructure ensure investment protection and operational resilience. In stock and ready to ship from iptrading.com.au — order now for fast dispatch.

Features

- 1.6 Tbps line-rate throughput in a compact 1U fixed chassis
- Juniper 6th-generation Trio silicon for deterministic forwarding performance
- Inline MACsec (line-rate on 400 GbE) and IPsec (AES-GCM-128/256) encryption in hardware
- 26 flexible WAN ports: 1/10/25/40/50/100/400 GbE configurable
- Full L2/L3 VPN, VPLS, IP/MPLS, and HQoS support via Junos OS
- 5G-ready with 3GPP CUPS, N3/N4/N6/N9 interfaces, and PFCP session management
- Dual-stack 4G/5G with 5QI/QFI policy enforcement for mobile service evolution
- AI-native edge optimised for distributed inference and real-time analytics workloads

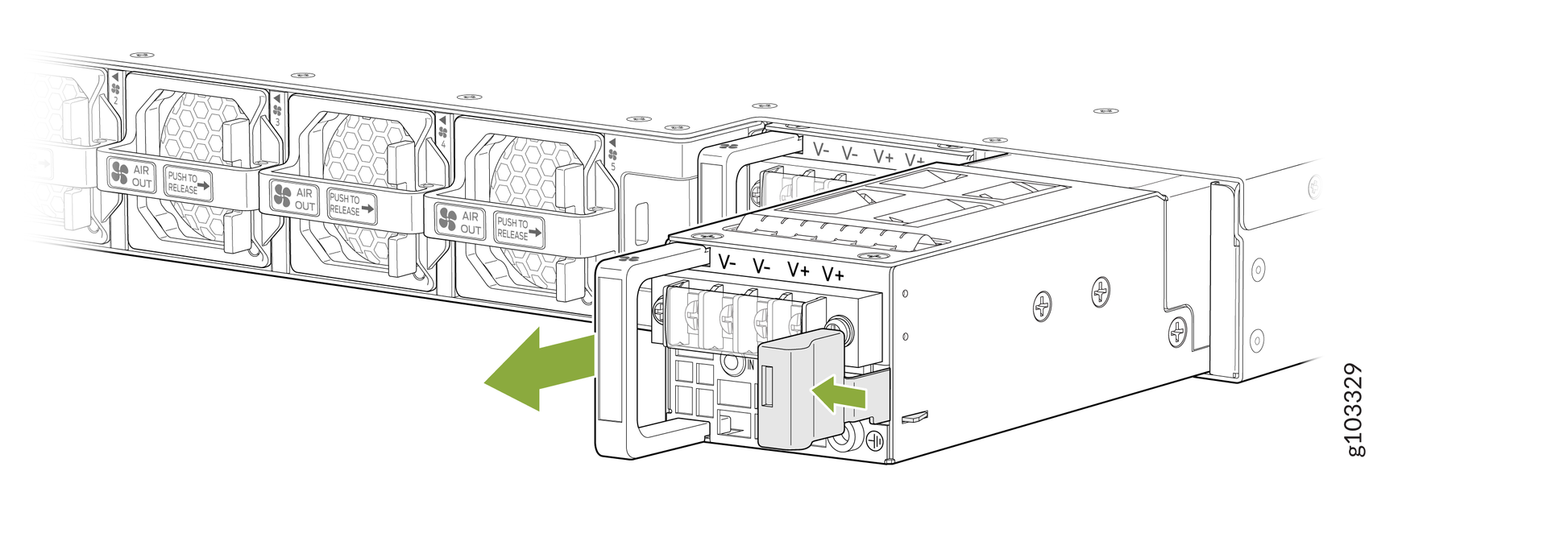

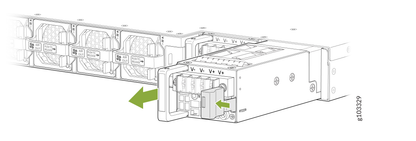

- Redundant DC power supplies with load balancing for high availability
- TPM hardware root-of-trust for secure boot and trusted transport
- MEF-compliant Ethernet OAM for metro and carrier Ethernet deployments
- Seamless integration with existing MX Series infrastructure via Junos OS
- Industry-leading power efficiency at as low as 0.3W per Gb

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Form Factor: 1U fixed-configuration chassis
- Maximum System Throughput: 1.6 Tbps
- RAM: 64 GB

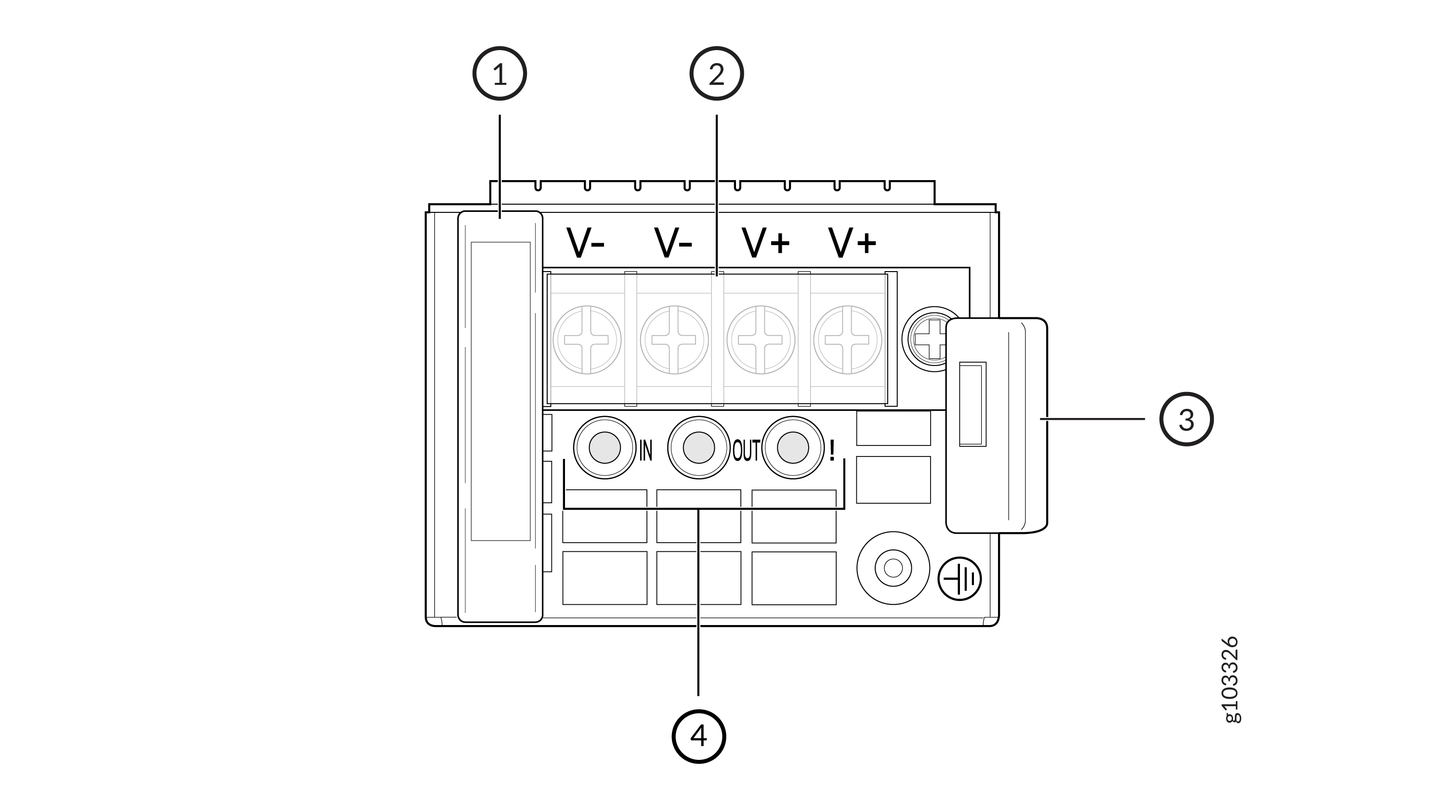

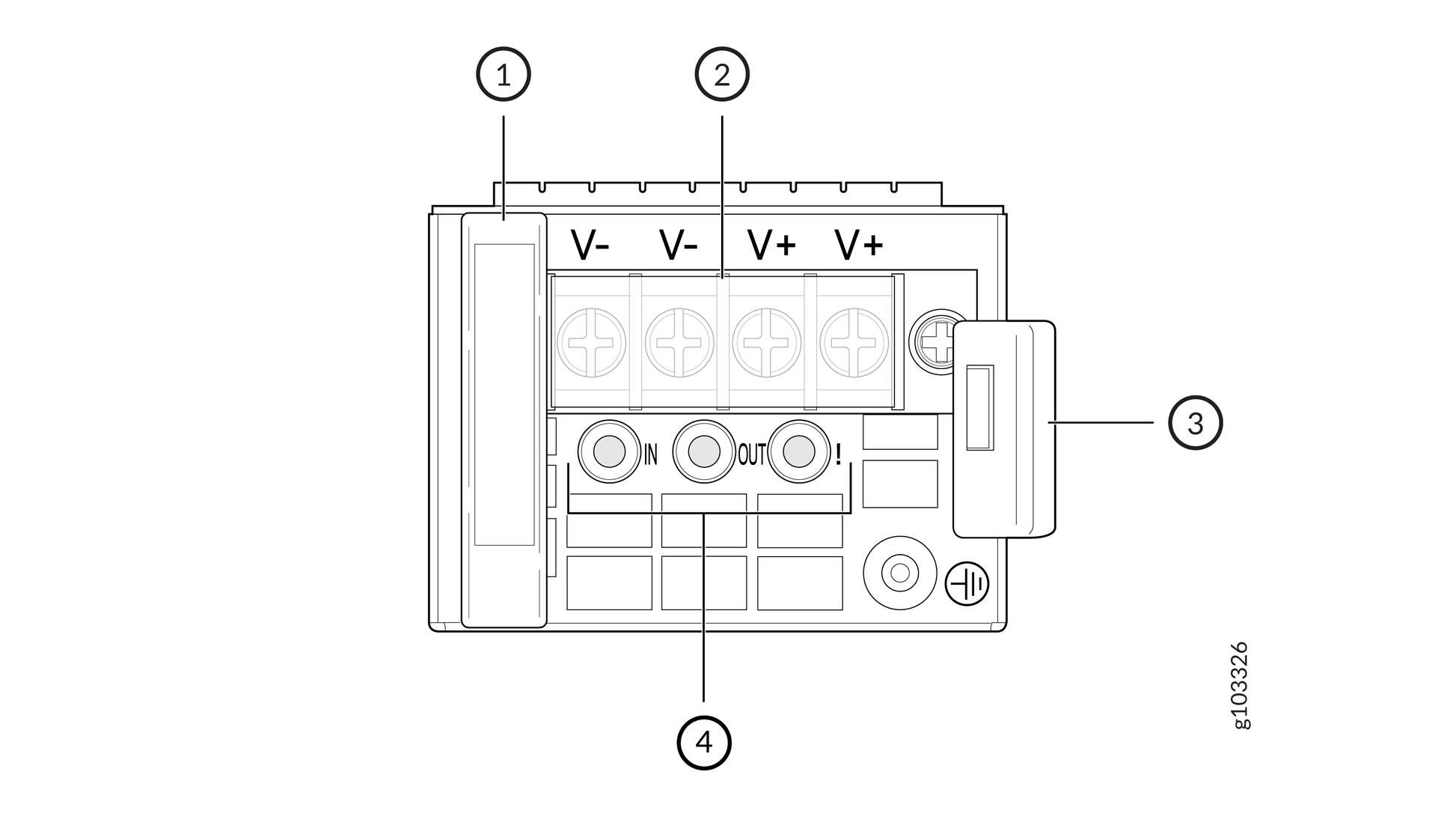

- Power Supply: DC (JPSU-850W-DC-AFO)
- Airflow: Front-to-Rear (AFO)
- WAN Ports: 26 ports, configurable 1/10 GbE to 400 GbE
- Port Flexibility: Up to 48x 10/25 GbE, 16x 40/50/100 GbE, or 4x 400 GbE
- Silicon: Juniper 6th-Generation Trio
- Operating System: Junos OS
- DC Input Voltage: -40 VDC to -72 VDC
- Power Efficiency: As low as 0.3W per Gb

FAQs

Q: What is the MX301-M-BASE-DC-FS and how does it differ from other MX301 variants?
A: The MX301-M-BASE-DC-FS is the DC-powered base hardware configuration of the Juniper MX301 universal routing platform, equipped with 64GB RAM and front-to-rear (AFO) airflow. Other variants may include AC power supplies, different airflow directions, or higher memory configurations. This SKU is suited to data centres and telco environments with DC power infrastructure requiring hot-aisle/cold-aisle containment.

Q: Can I purchase the Juniper MX301 in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware reseller with the MX301-M-BASE-DC-FS in stock and ready for fast dispatch. Contact the team for volume pricing, lead times, or assistance with compatibility and deployment planning.

Q: What port configurations are supported on the MX301?
A: The MX301 supports 26 WAN ports configurable from 1/10 GbE up to 400 GbE. Supported configurations include up to 48x 10/25 GbE, 16x 40/50/100 GbE, or 4x 400 GbE — providing flexible density for a wide range of edge, metro, and WAN deployments.

Q: Does the MX301 support encryption at line rate?
A: Yes. The MX301 supports inline MACsec at line rate on 400 GbE interfaces and IPsec encryption (AES-GCM-128/256) directly in the forwarding plane via Juniper's 6th-generation Trio silicon — with no performance penalty for encrypted traffic.

Q: Is the MX301 suitable for 5G mobile edge and service provider deployments?
A: Yes. The MX301 includes native 5G/mobile edge support with 3GPP CUPS architecture, N3/N4/N6/N9 interface support, and PFCP-based session management. It also supports dual-stack 4G/5G with 5QI/QFI policy enforcement, making it well suited for mobile backhaul and service provider edge roles.

Q: What routing and VPN capabilities does the MX301 support?
A: The MX301 runs Junos OS and supports a comprehensive feature set including L2/L3 VPN, VPLS, IP/MPLS, HQoS, subscriber management, MEF-compliant Ethernet OAM, and advanced edge aggregation services — consistent with the broader MX Series platform.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
