Juniper MX301-M-BASE-AC-FS | MX301-M 1RU Edge Router, 1.6 Tbps, Base, AC, 64GB RAM

Authorised Juniper Partner

SKU:MX301-M-BASE-AC-FS

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MX301-M 1RU edge router delivers up to 1.6 Tbps of system throughput in a compact fixed-port chassis built on Juniper Trio 6 silicon. This Base, fixed AC model includes 64GB RAM and runs Junos OS, supporting port speeds from 1GbE up to 400GbE for AI edge, metro aggregation, enterprise WAN edge and 5G UPF deployments.

The fixed interface design needs no MICs and includes line-rate MACsec on 400GbE, IPsec in the forwarding plane and a TPM for secure device identity. Dual AC power supplies in a 1+1 arrangement and N+1 fan redundancy suit carrier-grade and enterprise edge environments, and the platform is NEBS compliant.

Features

- Trio 6 programmable silicon with deep service scale and HQoS

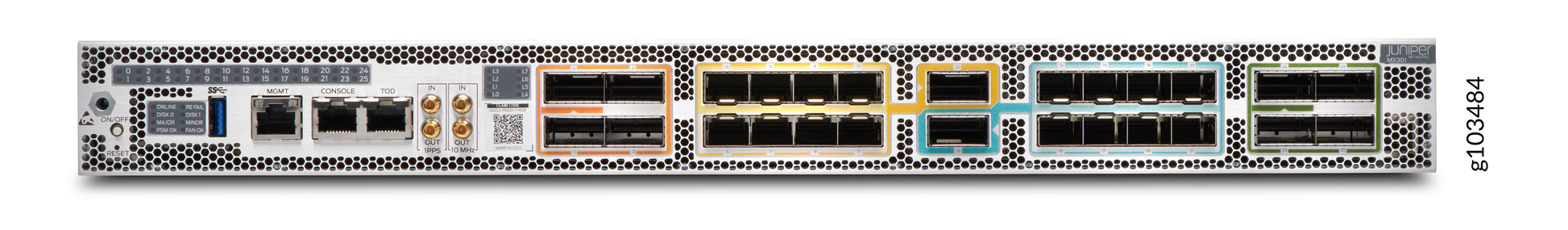

- Fixed interface design with no MICs, supporting 1GbE to 400GbE
- Line-rate MACsec on 400GbE and IPsec ESP tunnel mode in hardware
- TPM for secure device identity and hardware root of trust
- Precision Time Protocol (PTP) support
- Junos Telemetry Interface and open APIs for AIOps integration
- Optimised for AI edge, metro aggregation, enterprise WAN edge and 5G UPF
- Fully redundant power supplies and fans
- Power efficiency as low as 0.3W per Gb

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Up to 1.6 Tbps system throughput
- 1RU fixed-port form factor
- Juniper Trio 6 silicon
- 64GB RAM (MX301-M)
- Single integrated routing engine running Junos OS
- Port speeds from 1GbE to 400GbE
- Maximum line-rate density: 32x 1GbE/10GbE/25GbE, 8x 40GbE, 32x 50GbE, 16x 100GbE, 4x 400GbE
- 2 AC PSU FRUs (1+1 redundancy)

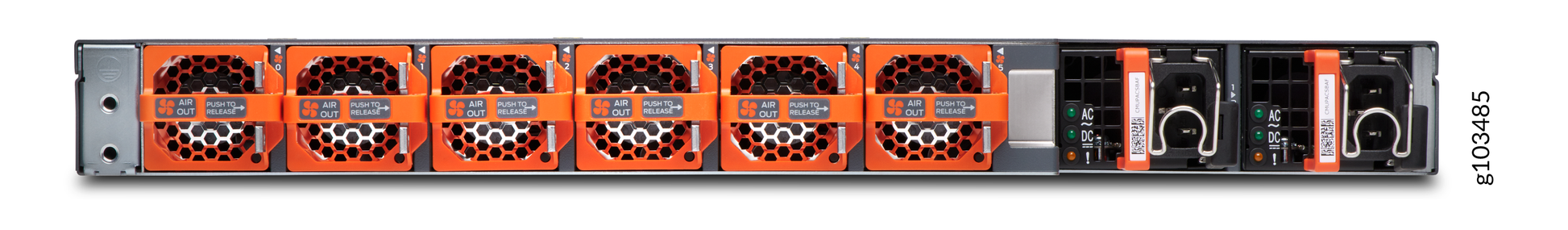

- 6 fan FRUs (N+1 redundancy), front to back airflow
- Power consumption under 500W typical
- Dimensions (H x W x D): 4.45 x 44 x 45 cm
- Weight approximately 12 kg
- 2/4-post rack mounting
- Operating temperature 0 to 46 C at sea level
- NEBS compliant

FAQs

Q: Is the MX301-M-BASE-AC-FS an AC or DC powered router?
A: This SKU is the fixed AC model, with two AC power supply FRUs in a 1+1 redundant configuration.

Q: How much memory does this MX301-M model have?
A: This SKU is the MX301-M variant with 64GB RAM.

Q: What port speeds does the MX301 support?
A: The fixed-port design supports speeds from 1GbE up to 400GbE, with up to 4x 400GbE or 16x 100GbE at line rate.

Q: Does the MX301-M support hardware encryption?
A: Yes. It provides line-rate MACsec on 400GbE and IPsec ESP tunnel mode (AES-GCM-128/256) in the forwarding plane, plus TPM support.

Q: What operating system does it run?
A: It runs Junos OS on a single integrated routing engine.

Q: What rack space and cooling does it need?
A: It occupies 1RU in a 2/4-post rack, with six N+1 redundant fan FRUs and front to back airflow.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
