Juniper

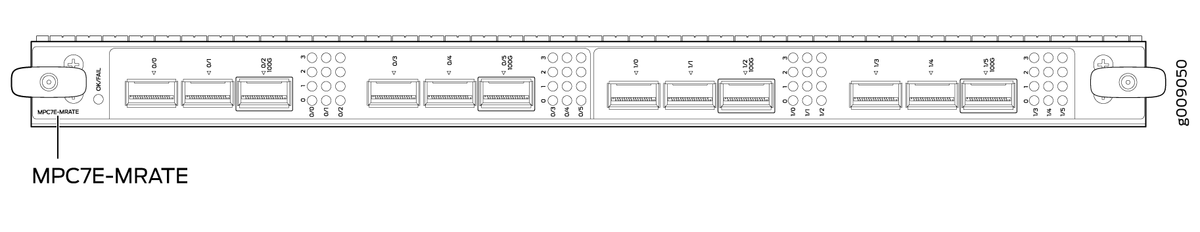

Juniper MPC7EQ-MRATE-B | MPC7E 12-Port QSFP+/QSFP28 Multirate MX Line Card, HQoS

Juniper MPC7EQ-MRATE-B | MPC7E 12-Port QSFP+/QSFP28 Multirate MX Line Card, HQoS

MPC7EQ-MRATE-B

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Juniper MPC7E 12-Port QSFP+/QSFP28 Multirate line card is a high-density, flexible interface module designed for the MX2008, MX2010, and MX2020 Universal Routing Platforms. Supporting both 40G (QSFP+) and 100G (QSFP28) multirate operation across all 12 ports, this MPC delivers full-scale hierarchical QoS (HQoS) with per-VLAN queueing — making it ideal for service providers and large enterprises requiring granular traffic management at scale. The queue-enhanced (EQ) architecture enables sophisticated SLA-based traffic shaping across thousands of subscribers or VLANs simultaneously.

The MPC7EQ-MRATE-B bundle provides the line card hardware ready for deployment in existing MX Series chassis, with optics purchased separately to match your specific reach and fibre requirements. It integrates seamlessly with Junos OS, supporting MPLS, IP/MPLS, L2VPN, L3VPN, and advanced subscriber management features native to the MX platform. Available now at iptrading.com.au — competitive prices and local support.

Features

- 12-port QSFP+/QSFP28 multirate support — flex between 40G and 100G per port
- Full-scale Hierarchical QoS (HQoS) with per-VLAN granular queueing
- Queue-Enhanced (EQ) architecture for carrier-grade subscriber management
- Seamless integration with Junos OS on MX2008, MX2010, and MX2020 chassis
- Supports MPLS, L2VPN, L3VPN, VPLS, and advanced traffic engineering
- Designed for service provider and large enterprise core/edge deployments
- Modular design allows incremental capacity expansion within existing MX chassis

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 12x QSFP+/QSFP28 multirate ports (40G and 100G per port)
- Supports QSFP+ (40GbE) and QSFP28 (100GbE) optics
- Queue-Enhanced (EQ) architecture for full-scale HQoS
- Per-VLAN hierarchical queuing (HQoS) support
- Compatible chassis: Juniper MX2008, MX2010, MX2020
- Optics sold separately
- Bundle (B) variant — line card module
- Runs Junos OS

FAQs

Q: Which Juniper MX chassis is the MPC7EQ-MRATE-B compatible with?
A: The MPC7EQ-MRATE-B is designed for the Juniper MX2008, MX2010, and MX2020 Universal Routing Platforms. It is not compatible with smaller MX Series routers such as the MX204 or MX10003.

Q: Does the MPC7EQ-MRATE-B include optics?
A: No. Optics are sold separately. You will need to purchase compatible QSFP+ (40G) or QSFP28 (100G) transceivers separately to match your specific reach and fibre type requirements.

Q: What does 'multirate' mean for this line card?
A: Multirate means each of the 12 QSFP ports can operate at either 40 Gbps (QSFP+) or 100 Gbps (QSFP28), giving you flexibility to mix speeds within a single line card based on your network design.

Q: What QoS capabilities does this MPC support?
A: The MPC7EQ-MRATE-B features full-scale Hierarchical QoS (HQoS) with per-VLAN queueing. The queue-enhanced (EQ) architecture supports granular traffic shaping and policing across thousands of subscribers or VLANs, essential for carrier-grade and large enterprise deployments.

Q: What services and protocols are supported on this line card?
A: Running Junos OS, this MPC supports a comprehensive suite including MPLS, IP/MPLS, L2VPN, L3VPN, VPLS, subscriber management, and advanced traffic engineering — consistent with the full MX Series feature set.

Q: Can I purchase the MPC7EQ-MRATE-B in Australia from IP Trading?
A: Yes. IP Trading (iptrading.com.au) stocks Juniper MX Series line cards including the MPC7EQ-MRATE-B and offers competitive pricing with local Australian support. Contact us for availability and volume pricing.
