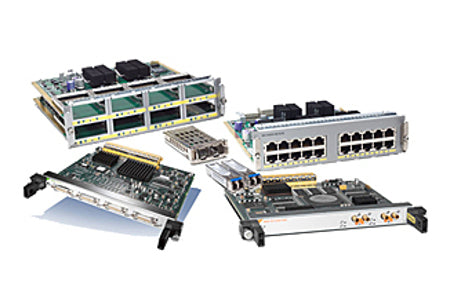

• Gray and black cisco catalyst 6509e network switch expansion cards with multiple ports for juniper mx series router
1 1

Juniper

Juniper MIC3-3D-2X40GE-QSFPP | MX Series MIC 2x40GE QSFP+ Router Interface Module, 80 Gbps

Juniper MIC3-3D-2X40GE-QSFPP | MX Series MIC 2x40GE QSFP+ Router Interface Module, 80 Gbps

MIC3-3D-2X40GE-QSFPP

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The MX Series MIC (Modular Interface Card) with 2x40GE QSFP+ delivers 80 Gbps full-duplex throughput for high-density WAN and core aggregation deployments. Designed to install into MPC3E Modular Port Concentrators on Juniper MX Series routers — including the MX240, MX480, MX960, MX2008, MX2010, and MX2020 — this MIC provides two 40-Gigabit Ethernet QSFP+ ports for high-performance connectivity at the network edge and core. QSFP+ optics are sold separately, allowing flexibility in reach and media selection.

Supporting Synchronous Ethernet, IEEE 802.1Q VLANs, VRRP, optical diagnostics, and RMON EtherStats, the MIC3-3D-2X40GE-QSFPP integrates seamlessly into existing MX Series infrastructures running Junos OS (first supported release 12.2). When used with compatible MPCs, it contributes to aggregate WAN bandwidths of up to 200 Gbps per MPC slot, making it a scalable choice for service providers and enterprise core networks. Contact iptrading.com.au — your local source for enterprise-grade networking solutions.

Features

- High-performance 40GbE connectivity via QSFP+ transceiver interfaces (optics sold separately)
- Two 40GbE ports delivering 80 Gbps total full-duplex throughput
- Supports Synchronous Ethernet for precise timing in carrier and service provider networks
- Optical diagnostics and related alarms for proactive fault management
- VRRP support for first-hop router redundancy
- IEEE 802.1Q VLAN support for network segmentation
- RMON EtherStats for remote network monitoring and analysis
- Source MAC learning with MAC accounting and policing
- Flexible Ethernet encapsulation and multiple TPID support
- Compatible with MPC3E and other MX Series MPCs for up to 200 Gbps aggregate WAN bandwidth per MPC
- Fully interoperable with existing MX Series DPC/MPC hardware under Junos OS

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 40GbE QSFP+ ports
- 40 Gbps per port, full-duplex
- Total throughput: 80 Gbps
- Maximum MTU: 9192 bytes
- Power requirement: 0.38 A @ 48 V (18 W)
- Weight: 1.19 lb (0.54 kg)
- Dimensions: 1.5 x 5.8 x 12.8 in
- MIC slot: installs into MPC3E and compatible MPCs
- Supported platforms: MX240, MX480, MX960, MX2008, MX2010, MX2020
- Minimum Junos OS release: 12.2
- Hardware part number: 750-036233
- Optics sold separately

FAQs

Q: Which Juniper MX Series routers support the MIC3-3D-2X40GE-QSFPP?
A: This MIC is supported in the MX240, MX480, MX960, MX2008, MX2010, and MX2020 routers. It installs into an MPC3E or compatible Modular Port Concentrator within these platforms.

Q: Are QSFP+ optics included with this MIC?
A: No — optics are sold separately. This gives you the flexibility to choose the appropriate QSFP+ transceiver for your specific reach and media requirements (SR4, LR4, etc.).

Q: What is the total throughput capacity of the MIC3-3D-2X40GE-QSFPP?
A: The MIC provides 80 Gbps total throughput across its two 40GbE ports in full-duplex mode. When combined with other MICs in an MPC3E, aggregate WAN bandwidth per MPC can reach up to 200 Gbps.

Q: What Junos OS version is required to run this MIC?
A: The MIC3-3D-2X40GE-QSFPP is first supported in Junos OS release 12.2. It interoperates with existing MX Series DPC and MPC hardware under any compatible Junos OS version.

Q: What Layer 2 and Layer 3 features does this MIC support?
A: The MIC supports IEEE 802.1Q VLANs, VRRP, Synchronous Ethernet, RMON EtherStats, source MAC learning with MAC accounting and policing, flexible Ethernet encapsulation, multiple TPID support, and optical diagnostics with related alarms.

Q: Can I purchase the MIC3-3D-2X40GE-QSFPP in Australia through IP Trading?
A: Yes. iptrading.com.au stocks Juniper MX Series interface modules and accessories for Australian enterprise and service provider customers. Contact our team for pricing, availability, and compatibility advice.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
