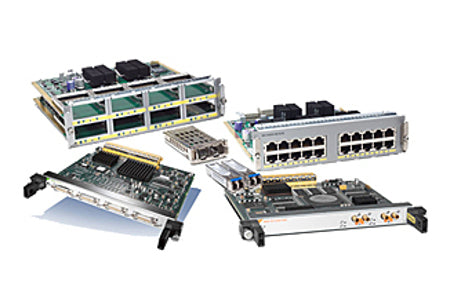

• Gray and black cisco catalyst 6509e network switch expansion cards with multiple ports shown on the back side
1 1

Juniper

Juniper MIC3-3D-1X100GE-CFP | MX Series MIC 1-Port 100GbE Router Interface Module, CFP

Juniper MIC3-3D-1X100GE-CFP | MX Series MIC 1-Port 100GbE Router Interface Module, CFP

MIC3-3D-1X100GE-CFP

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The MX Series MIC (Modular Interface Card) with a single 100 Gigabit Ethernet CFP port delivers high-density, high-speed connectivity for Juniper MX Series 3D Universal Edge Routers. Designed for service provider and large enterprise deployments, this field-replaceable MIC installs directly into an MPC3E (MX-MPC3E-3D) and is compatible with MX240, MX480, MX960, MX2010, and MX2020 chassis. The CFP (C Form-factor Pluggable) transceiver interface — distinguishing it from the CXP-interface sibling MIC3-3D-1X100GE-CXP — offers broad optics flexibility for both single-mode and multi-mode fibre deployments. Optics are sold separately.

Running Junos OS, this MIC supports advanced routing, MPLS, Layer 2/VPLS, IGMP snooping, QoS, and sophisticated traffic management, integrating seamlessly with existing MX Series DPC and MPC line cards. CFP MSA compliance ensures broad optics interoperability, while the hot-swappable interface simplifies field maintenance. Get it now at iptrading.com.au — authentic hardware, reliable service.

Features

- Installs into MPC3E (MX-MPC3E-3D) MIC slots as a hot-swappable, field-replaceable unit
- Single 100 Gigabit Ethernet CFP port for high-speed backbone and core connectivity
- CFP MSA-compliant interface supporting broad optics selection for single-mode and multi-mode fibre
- IEEE 802.3ba 100GbE standard compliant
- Supports QoS, traffic shaping, and advanced traffic management via Junos OS
- Full support for MPLS, Layer 2, VPLS, and IGMP snooping under Junos OS
- Configurable SA multicast forwarding mode for interoperability with 100GbE PICs
- Interoperable with existing MX Series DPC and MPC line cards
- Scalable architecture suited for service provider and large enterprise edge deployments

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 1 x 100GbE CFP port
- Port speed: 100 Gigabit Ethernet
- Transceiver type: CFP (C Form-factor Pluggable) — optics sold separately
- Compatible host MPC: MX-MPC3E-3D (MPC3E)
- Compatible platforms: MX240, MX480, MX960, MX2010, MX2020
- Minimum Junos OS: 12.1 (MX240/MX480/MX960), 15.1F7 (MX2008)
- IEEE 802.3ba (100GbE) compliant
- CFP MSA (Multi-Source Agreement) compliant
- Field Replaceable Unit (FRU)

FAQs

Q: What is the difference between the MIC3-3D-1X100GE-CFP and the MIC3-3D-1X100GE-CXP?
A: The key difference is the transceiver interface type. The MIC3-3D-1X100GE-CFP uses a CFP (C Form-factor Pluggable) interface, which supports a wide range of MSA-compliant 100GbE optics for both single-mode and multi-mode fibre. The MIC3-3D-1X100GE-CXP uses a CXP interface, which is typically associated with short-reach copper or active optical connections. Choose the CFP variant when you need flexible fibre optics compatibility.

Q: Which Juniper MX chassis is this MIC compatible with?
A: The MIC3-3D-1X100GE-CFP is compatible with the MX240, MX480, MX960, MX2010, and MX2020 platforms when installed into an MX-MPC3E-3D (MPC3E) line card. It is not a standalone card and requires the MPC3E host module.

Q: Are optics included with the MIC3-3D-1X100GE-CFP?
A: No, optics are sold separately. The MIC provides the CFP transceiver slot and interface logic; you will need to purchase a compatible CFP transceiver (single-mode or multi-mode) separately based on your fibre infrastructure and reach requirements.

Q: What Junos OS version is required to run this MIC?
A: A minimum of Junos OS 12.1 is required for operation on MX240, MX480, and MX960 platforms. For MX2008 deployments, Junos OS 15.1F7 or later is required.

Q: What routing and networking features does this MIC support?
A: When installed in a compatible MPC3E and running Junos OS, the MIC supports advanced features including MPLS, Layer 2/VPLS, IGMP snooping, Quality of Service (QoS), traffic management, and SA multicast forwarding mode for interoperability with other 100GbE PICs.

Q: Can I purchase the MIC3-3D-1X100GE-CFP in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware reseller stocking authentic Juniper hardware including MX Series MICs. Contact us for pricing, availability, and compatibility advice tailored to your MX Series deployment.
