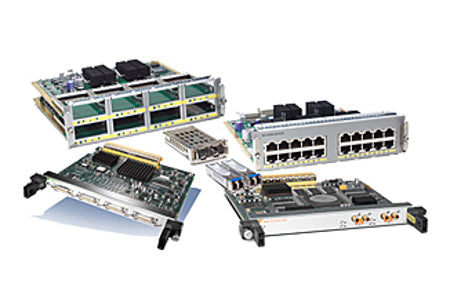

• Gray and black cisco catalyst 6509e network switch expansion cards with multiple ports for juniper mx series router module
1 1

Juniper

Juniper MIC3-3D-10XGE-SFPP | MX Series 10-Port 10GbE SFP+ MIC Router Interface Module

Juniper MIC3-3D-10XGE-SFPP | MX Series 10-Port 10GbE SFP+ MIC Router Interface Module

MIC3-3D-10XGE-SFPP

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The MIC3-3D-10XGE-SFPP is a 10-port 10-Gigabit Ethernet Modular Interface Card (MIC) with SFP+ interfaces, purpose-built for Juniper MX Series 3D Universal Edge Routers. Designed to install into compatible Modular Port Concentrators (MPC2, MPC2E, MPC3E), this MIC delivers high-density 10GbE connectivity for data centre edge, carrier edge, and aggregation deployments. It occupies MIC slot 0 or slot 1 of a supported MPC and is a hot-swappable field replaceable unit (FRU). Optics are sold separately.

Supported across the MX240, MX480, MX960, MX2008, MX2010, and MX2020 platforms under Junos OS, this module integrates seamlessly into the broader MX Series ecosystem alongside existing DPCs and MPCs. It supports advanced Layer 2 capabilities including VPLS, IGMP snooping, and integrated routing and bridging (IRB), as well as MPLS, BGP, and the full suite of Junos OS routing protocols. Upgrade your network with gear from iptrading.com.au — Australia's IT hardware specialists.

Features

- 10 x SFP+ ports deliver high-density 10GbE connectivity for edge, carrier, and aggregation roles
- Installs into MIC slot 0 or slot 1 of MPC2, MPC2E, or MPC3E for flexible chassis deployment
- MPC3E supports up to 200 Gbps aggregate WAN bandwidth across two MIC slots
- Hot-swappable FRU design minimises maintenance windows and simplifies field replacement
- Supports VPLS, IGMP snooping, and integrated routing and bridging (IRB) for Layer 2 deployments
- Full Junos OS protocol support including MPLS and BGP for carrier-grade routing
- Interoperates with existing MX Series DPCs and MPCs for phased infrastructure upgrades
- Part of the MX Series 3D Universal Edge Router ecosystem for scalable, multi-service deployments

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 10 x 10-Gigabit Ethernet SFP+ ports
- 1 logical PIC
- Compatible MPCs: MPC2, MPC2E, MPC3E and other MPC3-generation line cards
- Installs into MIC slot 0 or slot 1 of a compatible MPC
- Supported platforms: MX240, MX480, MX960 (Junos OS 12.3R1+), MX2008 (Junos OS 15.1F7+), MX2010 (Junos OS 12.3R2+), MX2020 (Junos OS 12.3R1+)
- Field Replaceable Unit (FRU) — hot-swappable
- Optics sold separately

FAQs

Q: Which Juniper MX Series routers are compatible with the MIC3-3D-10XGE-SFPP?
A: The MIC3-3D-10XGE-SFPP is supported on the MX240, MX480, and MX960 (from Junos OS 12.3R1), MX2010 (from Junos OS 12.3R2), MX2020 (from Junos OS 12.3R1), and MX2008 (from Junos OS 15.1F7).

Q: Which MPCs does this MIC install into?
A: This MIC is compatible with MPC2, MPC2E, MPC3E, and other MPC3-generation line cards. It slots into MIC slot 0 (PIC 0) or MIC slot 1 (PIC 2) within a supported MPC.

Q: Are optics included with the MIC3-3D-10XGE-SFPP?
A: No — optics are sold separately. You will need to source compatible SFP+ transceivers (e.g., short-range, long-range, or DWDM) based on your cabling and reach requirements.

Q: What Layer 2 and Layer 3 features does this MIC support?
A: The MIC3-3D-10XGE-SFPP supports VPLS, IGMP snooping, integrated routing and bridging (IRB), MPLS, BGP, and the full range of advanced Junos OS routing and switching protocols.

Q: Can this MIC be hot-swapped in a live network?
A: Yes. The MIC3-3D-10XGE-SFPP is a Field Replaceable Unit (FRU) with a hot-swappable design, allowing installation or replacement without powering down the chassis.

Q: Can I purchase the MIC3-3D-10XGE-SFPP in Australia from IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware specialist stocking Juniper MX Series modules including the MIC3-3D-10XGE-SFPP. Contact our team for pricing, availability, and compatible optics.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
