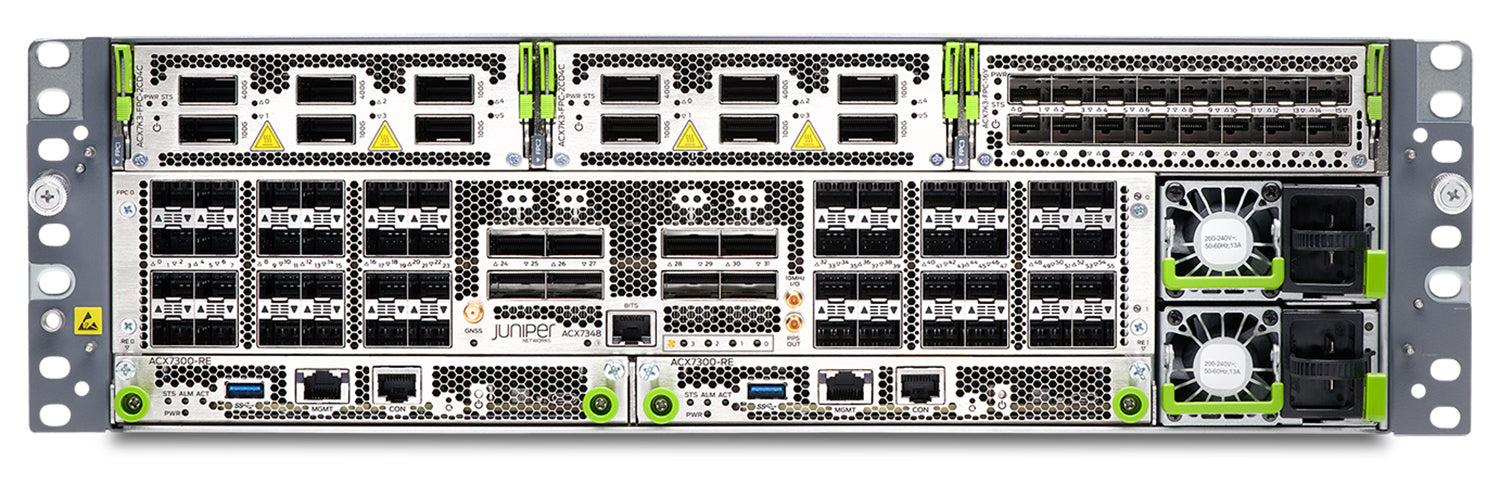

Juniper ACX7348-CHAS | ACX7348 Cloud Metro Router Chassis, 48x SFP28, 8x QSFP28

Authorised Juniper Partner

SKU:ACX7348-CHAS

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Juniper ACX7348 is a 3RU cloud metro router chassis with 48 fixed SFP28 ports and 8 QSFP28 ports, built for metro aggregation and IP service fabric deployments. This ACX7348-CHAS SKU is the chassis only (spare), with a compact 290mm depth and an extended operating range of -40C to 65C for I-Temp environments.

The ACX7348 delivers 2.4 Tbps of ASIC throughput and supports SFP, SFP+, SFP28 and QSFP optics. It shares identical features and capabilities with the ACX7332 while adding 16 more fixed ports, and it is engineered for the IP service fabric of Juniper Cloud Metro.

Features

- I-Temp design for rugged, varied deployment scenarios
- Compact 3RU, 290mm depth chassis suits space-constrained sites
- High density 25GbE and 100GbE connectivity with breakout options
- Optional Routing Engine redundancy
- Redundant fans and AC or DC power supply options
- TPM 2.0 on the Routing Engine for platform security
- Same capabilities as the ACX7332 with 16 additional fixed ports
- Engineered for the IP service fabric of Juniper Cloud Metro

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis only (spare), 3RU, 19-inch rack mount
- Depth: 290mm
- Ports: 8 x QSFP28 and 48 x SFP28 fixed
- ASIC throughput: 2.4 Tbps
- Max native ports: 4 x 400GbE, 23 x 100GbE, 23 x 40GbE, 94 x 25GbE
- Up to 27 x 100GbE and 126 x 25GbE with breakout
- Optics supported: SFP, SFP+, SFP28, QSFP
- Routing Engine: 4-core CPU, 64GB DDR4 RAM, 100GB SATA/NVMe SSD, TPM 2.0
- Operating temperature range: -40C to 65C (I-Temp)
- Redundant fans and power supplies (AC or DC)

FAQs

Q: Is the ACX7348-CHAS a complete router or chassis only?
A: ACX7348-CHAS is the chassis only (spare) SKU. Power supplies, fans, optics and other components are specified separately.

Q: Which optics does the ACX7348 support?
A: It supports SFP, SFP+, SFP28 and QSFP optics across its 48 SFP28 and 8 QSFP28 ports.

Q: What temperature range is the ACX7348 rated for?
A: It is an I-Temp platform with an operating range of -40C to 65C.

Q: How does the ACX7348 differ from the ACX7332?
A: It shares the same features and capabilities as the ACX7332 but provides 16 additional fixed ports and is built for I-Temp applications.

Q: Does the ACX7348 support redundant power and fans?
A: Yes. It supports redundant fans and redundant AC or DC power supplies, with optional Routing Engine redundancy.

Q: What is the rack size and depth of the ACX7348?
A: It is a 3RU unit for 19-inch racks with a depth of 290mm.
