Juniper ACX710DC | ACX710 DC Metro Router, 24x SFP+, 4x QSFP28, L2/IGP

Authorised Juniper Partner

SKU:ACX710DC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

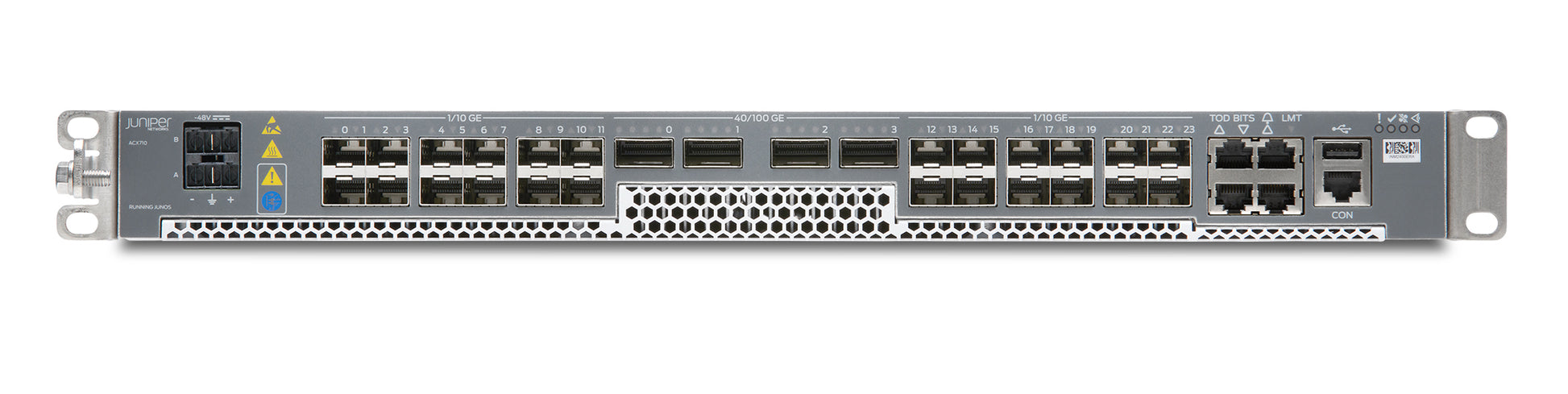

The Juniper ACX710DC is a DC-powered, 1RU universal metro router built for 4G/5G mobile backhaul, residential fibre and metro aggregation. It delivers 24 x 1GbE/10GbE SFP/SFP+ ports and 4 x 100GbE QSFP28 ports, with 320 Gbps switching capacity and Class-C timing and precision synchronisation. This variant ships with L2 and IGP/IP functions only (without MPLS and IP-VPNs) for management use.

The hardened 315 mm deep chassis is rated for -40C to 65C operation, making it suited to outdoor cabinets and compact metro sites. It runs Junos OS with NETCONF/YANG support, and the 100GbE ports can be configured as 1x100GbE, 1x40GbE, 4x25GbE or 4x10GbE to match uplink requirements.

Features

- Hardened, compact 1RU design for metro and outdoor-cabinet environments
- Precision timing and synchronisation validated for LTE deployments
- Junos OS with NETCONF/YANG support for automation
- Flexible 100GbE port breakout options for varied uplink designs
- Stackable design
- Suited to cable DAA, residential fibre and mobile backhaul use cases

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 24 x 1GbE/10GbE SFP/SFP+ ports
- 4 x 100GbE QSFP28 ports (configurable as 1x100GbE, 1x40GbE, 4x25GbE or 4x10GbE)
- 1RU form factor, 315 mm depth
- 320 Gbps switching capacity
- DC power supply
- Operating temperature -40C to 65C
- Class-C timing and precision synchronisation
- Junos OS with NETCONF/YANG support
- L2 and IGP/IP functions (without MPLS and IP-VPNs) for management only

FAQs

Q: What power input does the ACX710DC use?
A: The ACX710DC is the DC-powered variant of the ACX710 and is suited to telco and cabinet environments with DC supply.

Q: Does this SKU support MPLS and IP-VPNs?
A: No. This variant provides L2 and IGP/IP functions only (without MPLS and IP-VPNs) for management use.

Q: What port types does the ACX710DC provide?
A: It has 24 x 1GbE/10GbE SFP/SFP+ ports and 4 x 100GbE QSFP28 ports.

Q: Can the QSFP28 ports run at lower speeds?
A: Yes. They can be configured as 1x100GbE, 1x40GbE, 4x25GbE or 4x10GbE.

Q: What operating temperature range is supported?
A: The ACX710 is rated for operation from -40C to 65C.

Q: Are optics included?
A: No. SFP/SFP+ and QSFP28 transceivers are selected separately to suit the link type and reach.
