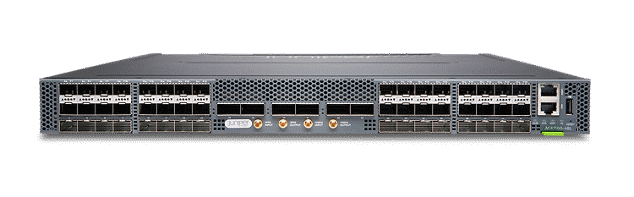

• Juniper ACX7100-48L-DCI-KT gray metal server rack with ports and vents
1 1

Juniper

Juniper ACX7100-48L-DCI-KT | ACX7100-48L Cloud Metro Router, 48x SFP56, 6x QSFP56-DD, DC PSU

Juniper ACX7100-48L-DCI-KT | ACX7100-48L Cloud Metro Router, 48x SFP56, 6x QSFP56-DD, DC PSU

Authorised Juniper Partner

ACX7100-48L-DCI-KT

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Juniper ACX7100-48L-DCI-KT is a 1U fixed-configuration Cloud Metro router with 4.8 Tbps ASIC throughput, built for dense multiservice and metro aggregation deployments. This DC-powered, AFI, TAA-compliant variant delivers 48 multi-rate SFP56 ports (10GbE/25GbE/50GbE) plus 6 QSFP56-DD ports supporting 400GbE, 100GbE and 40GbE, all in a compact 60 cm deep chassis.

The ACX7100-48L is designed for the IP service fabric of a Juniper Cloud Metro. The -48 VDC to -60 VDC power input suits telco and carrier facilities, while the 6-fan cooling system supports front-to-back or back-to-front airflow configurations. Its power-efficient fixed design makes it a strong fit for high-end multiservice applications where rack space and power draw matter.

Features

- Dense port distribution in a compact 60 cm deep footprint
- Power-efficient 1U fixed design for high-end multiservice applications
- Multi-rate SFP56 ports supporting 10/25/50GbE
- Designed for the IP service fabric of a Juniper Cloud Metro
- TAA-compliant with DC power supply and AFI airflow configuration

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 48 x 10GbE/25GbE/50GbE SFP56 multi-rate ports
- 6 x 400GbE QSFP56-DD ports (also support 100GbE/40GbE)
- 4.8 Tbps ASIC throughput
- Fixed chassis, 1U form factor
- DC power: -48 VDC to -60 VDC
- 6 fans, front-to-back or back-to-front airflow
- Dimensions: 44.09 x 4.45 x 59.49 cm (17.36 x 1.75 x 23.42 in)
- Weight fully configured: 12.2 kg (26.9 lb)
- Maximum port capacity: 6x400GbE, 24x100GbE, 95x50GbE, 72x25GbE, 72x10GbE

FAQs

Q: What port types does the ACX7100-48L-DCI-KT provide?
A: It provides 48 multi-rate SFP56 ports supporting 10GbE, 25GbE and 50GbE, plus 6 QSFP56-DD ports supporting 400GbE, with 100GbE and 40GbE also supported.

Q: What power input does this model use?
A: This variant is DC powered, with an input range of -48 VDC to -60 VDC, suited to telco and carrier environments.

Q: What is the total throughput of the ACX7100-48L?
A: The ASIC delivers 4.8 Tbps of throughput in a 1U fixed-configuration chassis.

Q: What is the chassis size and weight?
A: The chassis measures 44.09 x 4.45 x 59.49 cm (17.36 x 1.75 x 23.42 in) and weighs 12.2 kg (26.9 lb) fully configured.

Q: Does the ACX7100-48L support front-to-back or back-to-front airflow?
A: Yes. The 6-fan cooling system is available in front-to-back or back-to-front airflow orientations to suit your rack layout.

Q: What is the maximum port density by speed?
A: The maximum port capacity is 6x400GbE, 24x100GbE, 95x50GbE, 72x25GbE or 72x10GbE, depending on how the ports are configured.
