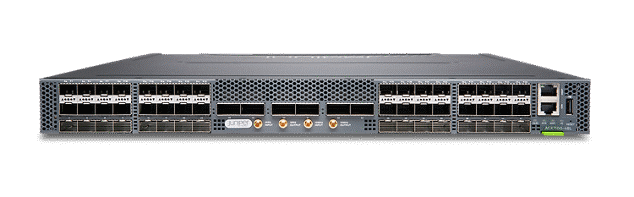

• Juniper ACX7100-48L-DCI-K gray metal server rack with ports and vents
1 1

Juniper

Juniper ACX7100-48L-DCI-K | ACX7100-48L Metro Router, 48x SFP56, 6x 400G, DC PSU, AFI

Juniper ACX7100-48L-DCI-K | ACX7100-48L Metro Router, 48x SFP56, 6x 400G, DC PSU, AFI

Authorised Juniper Partner

ACX7100-48L-DCI-K

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Juniper ACX7100-48L-DCI-K is a fixed-configuration 1U cloud metro router with a 4.8 Tbps forwarding ASIC, 48 x SFP56 ports and 6 x 400GbE QSFP56-DD ports. It suits service provider metro aggregation, large enterprise and data centre edge deployments. This SKU is the DC-powered variant with airflow in (AFI) cooling, accepting -48 VDC to -60 VDC input for telco and central office environments.

The router combines deep buffers and advanced timing support with Layer 2/Layer 3 and MPLS protocols, telemetry and network slicing. Hot-swappable redundant power supply modules and fans, plus 1-PPS and 10-MHz GPS timing ports, support resilient cloud metro architectures.

Features

- Deep buffer and advanced timing support for cloud metro architectures
- Layer 2/Layer 3 and MPLS protocols
- Advanced programmability, telemetry and network slicing
- MACsec options
- Hot-swappable redundant power supply modules and fans
- Designed for metro high-end aggregation, large enterprise and top-of-rack/spine-leaf data centre use

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 48 x 10GbE/25GbE/50GbE SFP56 ports (port 47 runs at 25G/10G only)
- 6 x 400GbE QSFP56-DD ports (400/100/40GbE capable, channelization supported)
- 4.8 Tbps ASIC throughput
- Fixed 1U chassis, 17.36 x 1.75 x 23.42 in (44.09 x 4.45 x 59.49 cm)
- DC power input: -48 VDC to -60 VDC
- Power draw: 270 W typical, 620 W max (without optics)
- Routing Engine: 2.9 GHz six-core Intel CPU, 64 GB memory, 2 x 100 GB SSD
- Management, console and USB ports; 1-PPS and 10-MHz GPS input/output ports
- Cooling: 6 fans with back-to-front airflow (AFI)

FAQs

Q: What power input does the ACX7100-48L-DCI-K use?
A: This SKU is the DC-powered variant and accepts -48 VDC to -60 VDC input. Typical draw is 270 W and maximum draw is 620 W without optics.

Q: What does AFI mean for this model?
A: AFI stands for airflow in, meaning the 6 fans use back-to-front airflow. Match this to your rack's hot and cold aisle layout when planning installation.

Q: What port speeds does the router support?
A: The 48 SFP56 ports support 10GbE, 25GbE and 50GbE, except port 47 which runs at 25G/10G only. The 6 QSFP56-DD ports support 400GbE, 100GbE and 40GbE with channelization.

Q: Does it support precision timing?
A: Yes. It includes 1-PPS and 10-MHz GPS input/output ports and advanced timing support for cloud metro architectures.

Q: Are the power supplies and fans hot-swappable?
A: Yes. The power supply modules and fans are hot-swappable and redundant, supporting resilient deployments.

Q: What is the routing engine specification?
A: It uses a 2.9 GHz six-core Intel CPU with 64 GB memory and 2 x 100 GB SSD storage.
