Juniper ACX7100-48L-DC-AO | ACX7100 Cloud Metro Router, 48x SFP56, 6x 400G QSFP56-DD, DC PSU, AFO

Authorised Juniper Partner

SKU:ACX7100-48L-DC-AO

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

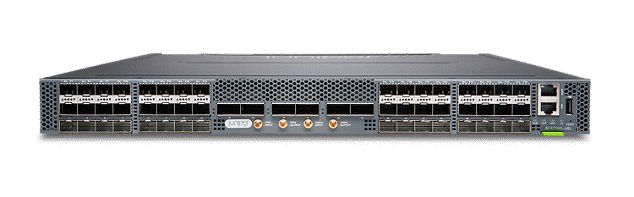

The Juniper ACX7100-48L-DC-AO is a fixed 1 U Cloud Metro router built for dense, high-capacity aggregation and metro edge deployments. It delivers 4.8 Tbps of ASIC throughput through 48 multi-rate SFP56 ports (10GbE, 25GbE and 50GbE) and 6 x 400GbE QSFP56-DD ports. This SKU is the DC-powered, airflow-out (AFO) variant, suited to telco and data centre racks that use DC power and an airflow-out cooling layout.

The compact chassis is only 60 cm deep, which suits space-constrained racks and cabinets, and the fixed form factor is power-efficient. The ACX7100 line forms part of the Juniper Cloud Metro IP service fabric and is designed for high-end multiservice applications. Order the sibling ACX7100-48L-DC-AI if your rack requires airflow-in (AFI) cooling.

Features

- Dense multi-rate port layout for high-end multiservice applications
- Compact, power-efficient fixed 1 U form factor
- Part of the Juniper Cloud Metro IP service fabric
- DC power supply for telco and DC-powered racks
- Airflow-out (AFO) cooling variant

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 48 x 10GbE/25GbE/50GbE SFP56 ports
- 6 x 400GbE QSFP56-DD ports
- 4.8 Tbps ASIC throughput
- Fixed 1 U chassis, 60 cm deep
- 6 fans
- DC power supply
- Airflow out (AFO) cooling

FAQs

Q: What does AFO mean on the ACX7100-48L-DC-AO?
A: AFO stands for airflow out. This SKU uses airflow-out cooling, while the sibling ACX7100-48L-DC-AI uses airflow-in (AFI).

Q: What port types does this router provide?
A: It provides 48 multi-rate SFP56 ports supporting 10GbE, 25GbE and 50GbE, plus 6 x 400GbE QSFP56-DD ports.

Q: Is this model DC or AC powered?
A: The ACX7100-48L-DC-AO is supplied with DC power supplies, making it suited to DC-powered racks and telco environments.

Q: What is the throughput of the ACX7100-48L-DC-AO?
A: The platform delivers 4.8 Tbps of ASIC throughput in a fixed 1 U chassis.

Q: How deep is the chassis?
A: The chassis is 1 U high and 60 cm deep, which suits compact rack and cabinet deployments.

Q: How does this SKU differ from the ACX7100-48L-DC-AI?
A: Both use the same ports and DC power. The difference is airflow direction: this model is airflow out (AFO) and the other is airflow in (AFI).
