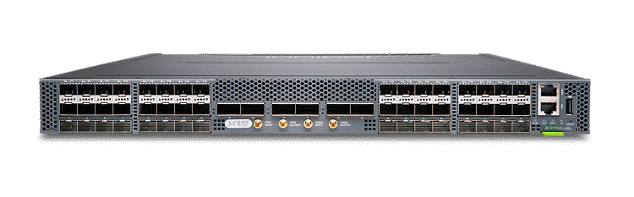

• Juniper ACX7100-48L-DC-AI gray metal server rack with ports and vents
1 1

Juniper

Juniper ACX7100-48L-DC-AI | ACX7100-48L Cloud Metro Router, 48x SFP56, 6x QSFP56-DD, DC PSU, AFI

Juniper ACX7100-48L-DC-AI | ACX7100-48L Cloud Metro Router, 48x SFP56, 6x QSFP56-DD, DC PSU, AFI

Authorised Juniper Partner

ACX7100-48L-DC-AI

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Juniper ACX7100-48L is a fixed 1U cloud metro router delivering 4.8 Tbps of throughput for dense, high-end multiservice deployments. It provides 48 multi-rate SFP56 ports and 6 x 400GbE QSFP56-DD ports in a compact 60 cm deep chassis. This SKU is the DC-powered, airflow-in (AFI) model, suited to telco and metro aggregation sites that run on -48 VDC power.

The SFP56 ports accept 50G, 25G and 10G optics, while the QSFP56-DD ports also support 100GbE and 40GbE transceivers, AOC and DAC cables. The ACX7100 is engineered for the IP service fabric of a Juniper Cloud Metro, giving operators a power-efficient aggregation platform with a short-depth footprint.

Features

- Dense port distribution in a short-depth (60 cm) 1U chassis
- Multi-rate SFP56 ports support 50G (SFP56), 25G (SFP28) and 10G (SFP+) optics
- QSFP56-DD ports support QSFP56-DD, QSFP28-DD, QSFP28 and QSFP+ transceivers, AOC and DAC cables
- DC-powered for telco and metro site deployments
- Engineered for the IP service fabric of a Juniper Cloud Metro

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 48 x 10GbE/25GbE/50GbE SFP56 ports (port 47 operates at 25G/10G only)
- 6 x 400GbE QSFP56-DD ports (also support 100GbE/40GbE)
- 4.8 Tbps throughput
- 1U fixed form factor, approx. 4.4 x 44.1 x 59.5 cm (H x W x D)
- DC power input: -48 VDC to -60 VDC
- Airflow in (AFI) cooling
- Fully configured weight approx. 12.2 kg

FAQs

Q: What power input does the ACX7100-48L-DC-AI use?
A: This model is DC-powered and accepts an input of -48 VDC to -60 VDC.

Q: What does AFI mean on this model?
A: AFI stands for airflow in. This SKU uses airflow-in cooling, so mount it in a rack with airflow direction matched to your hot and cold aisle layout.

Q: Which optics are supported on the SFP56 ports?
A: The multi-rate SFP56 ports support 50G (SFP56), 25G (SFP28) and 10G (SFP+) optics. Port 47 operates at 25G/10G only.

Q: What can I connect to the QSFP56-DD ports?
A: The 6 QSFP56-DD ports support QSFP56-DD, QSFP28-DD, QSFP28 and QSFP+ transceivers, as well as AOC and DAC cables, running at 400GbE, 100GbE or 40GbE.

Q: What is the form factor and depth of the chassis?
A: It is a fixed 1U chassis approximately 4.4 cm high, 44.1 cm wide and 59.5 cm deep, so it suits short-depth racks.

Q: What is the total throughput of the ACX7100-48L?
A: The ACX7100-48L delivers 4.8 Tbps of throughput.
