Juniper ACX7100-48L-AC-AO | ACX7100-48L Cloud Metro Router, 48x SFP56, 6x QSFP56-DD, AC, Airflow Out

Authorised Juniper Partner

SKU:ACX7100-48L-AC-AO

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

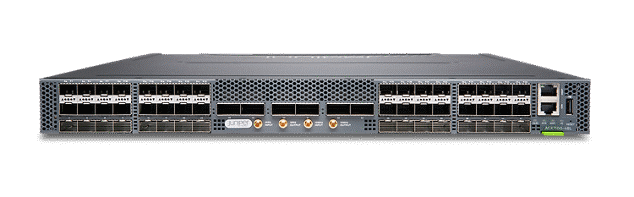

The Juniper ACX7100-48L-AC-AO is a fixed-configuration 1U cloud metro router with 48 SFP56 ports and 6 QSFP56-DD ports, delivering 4.8 Tbps of system throughput. This variant uses AC power and front-to-back (airflow out) cooling, making it suited to high-performance metro and aggregation deployments.

The QSFP56-DD ports run at 400GbE by default with channelization support, and accept QSFP56-DD, QSFP28-DD, QSFP28 and QSFP+ transceivers as well as AOCs. Management and timing access is built in, with RJ-45 console and management ports, a USB Type A port, and 10 MHz and PPS timing ports.

Features

- QSFP56-DD ports accept QSFP56-DD, QSFP28-DD, QSFP28 and QSFP+ transceivers, plus AOCs
- Port channelization on the QSFP56-DD ports
- Designed for high-performance cloud metro and aggregation use
- 1U fixed chassis with 4.8 Tbps system throughput
- Front-to-back airflow for hot and cold aisle deployments

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 48 x SFP56 ports (10/25/50GbE); port 47 runs at 25G/10G only
- 6 x QSFP56-DD ports (400GbE by default, channelization supported)
- System throughput: 4.8 Tbps
- 1U fixed chassis, 1.75 in H x 17.36 in W x 23.42 in D
- Weight: 26.9 lb / 12.22 kg
- AC power supply: 115/240 VAC
- Airflow out (front-to-back, ports-to-FRUs)
- 1 x RJ-45 console, 1 x RJ-45 management, 1 x USB Type A
- 10 MHz and PPS timing ports

FAQs

Q: What power and airflow does the ACX7100-48L-AC-AO use?
A: This SKU has an AC power supply (115/240 VAC) and airflow out, meaning front-to-back cooling from the ports towards the FRUs.

Q: Which transceivers work in the QSFP56-DD ports?
A: The QSFP56-DD ports accept QSFP56-DD, QSFP28-DD, QSFP28 and QSFP+ transceivers, as well as AOCs.

Q: What speeds do the 48 SFP56 ports support?
A: The SFP56 ports support 10/25/50GbE. Port 47 runs at 25G/10G only.

Q: Can the 400GbE ports be broken out?
A: Yes. The six QSFP56-DD ports run at 400GbE by default and support port channelization.

Q: What is the total system throughput?
A: The ACX7100-48L delivers 4.8 Tbps of system throughput in a 1U fixed chassis.

Q: Are other variants of this router available?
A: The ACX7100-48L is available in AC and DC power and airflow-in and airflow-out variants. This SKU is the AC, airflow out model.
