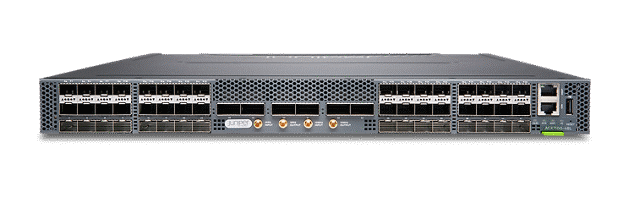

Juniper ACX7100-32C-LAC-AO | ACX7100-32C 1U Metro Router, 32x 100G, 4x 400G, AC, AFO

Authorised Juniper Partner

SKU:ACX7100-32C-LAC-AO

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Juniper ACX7100-32C-LAC-AO is a fixed 1U Cloud Metro router with 32 x QSFP28 100GbE ports and 4 x QSFP56-DD 400GbE ports, delivering 4.8 Tbps of ASIC throughput. This SKU ships with AC power supplies, front-to-back airflow (AFO) and the limited Junos OS Evolved software licence, making it a ready-to-rack building block for metro, large enterprise and data centre deployments.

The ACX7100 provides dense 100GbE fan-out in a compact, power-efficient footprint and serves as a foundational element of an IP services fabric in a Juniper Cloud Metro solution. MACsec is supported on all ports, and the 400GbE ports offer multiple breakout options for flexible high-speed aggregation.

Features

- Designed for metro, large enterprise and data centre use cases
- Foundational building block of an IP services fabric in a Juniper Cloud Metro solution
- Dense 100GbE fan-out in a small, power-efficient footprint
- MACsec encryption supported on all ports
- Flexible breakout options on the 400GbE ports
- Supports PTP grandmaster clock use, with 1GbE optics via QSA adapter on port 31

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 32 x QSFP28 100GbE multi-rate ports (ports 0-31)
- 4 x QSFP56-DD 400GbE multi-rate ports (ports 32-35)
- 4.8 Tbps ASIC throughput
- 1U fixed chassis
- 6 fans with front-to-back airflow (AFO)
- AC power supply
- MACsec support on all ports
- Breakout options on ports 32-35 include 4x100GbE, 2x100GbE, 2x50GbE and 8x50GbE
- Junos OS Evolved (limited feature licence)

FAQs

Q: What port configuration does the ACX7100-32C-LAC-AO provide?
A: It provides 32 x QSFP28 100GbE multi-rate ports (ports 0-31) and 4 x QSFP56-DD 400GbE multi-rate ports (ports 32-35).

Q: What breakout options are available on the 400GbE ports?
A: Ports 32-35 support breakout options including 4x100GbE, 2x100GbE, 2x50GbE and 8x50GbE.

Q: What power supply and airflow does this SKU use?
A: This SKU ships with AC power supplies and front-to-back airflow (AFO) using 6 fans.

Q: What software is included with this router?
A: It runs Junos OS Evolved and includes the limited feature licence.

Q: Does the ACX7100-32C support MACsec?
A: Yes, MACsec is supported on all ports.

Q: What use cases is the ACX7100 designed for?
A: It is designed for metro, large enterprise and data centre deployments, and acts as a building block of an IP services fabric in a Juniper Cloud Metro solution.
