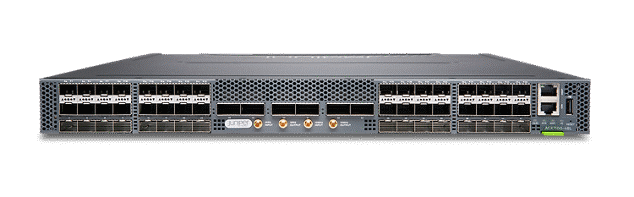

Juniper ACX7100-32C-DCO-KT | ACX7100 Cloud Metro Router, 32 SFP56 / 6 QSFP56-DD, DC, AFO

Authorised Juniper Partner

SKU:ACX7100-32C-DCO-KT

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Juniper ACX7100-32C-DCO-KT is a 1U fixed-configuration ACX7100 Cloud Metro Router with 32 SFP56 and 6 QSFP56-DD multi-rate ports. This variant is supplied with a DC power supply and airflow-out (front-to-back) cooling, and is TAA compliant. It is built for 100GbE to 400GbE service migration in metro, aggregation and IP service fabric deployments.

A 4.8 Tbps forwarding capacity, deep buffers and native 400GbE interfaces suit cloud metro designs, while the thermal design allows high-power ZR/ZR+ coherent optics across all supporting ports. The router runs Junos OS Evolved and includes inline MACsec and Class C timing support for secure, precisely synchronised transport networks.

Features

- Thermal design allows unrestricted use of high-power ZR/ZR+ transceivers across all supporting ports
- Supports Class C timing and the major ITU-T timing profiles
- Inline MACsec data-plane security
- Deep buffers and native 400GbE interfaces for cloud metro and IP service fabric use
- Runs Junos OS Evolved
- Redundant, field-replaceable DC power supply modules and redundant fans

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 32 x SFP56 / 6 x QSFP56-DD multi-rate ports
- 4.8 Tbps ASIC / forwarding capacity
- 1U fixed chassis, 17.36 x 1.75 x 23.42 in (44.09 x 4.45 x 59.49 cm)
- DC power supply (redundant, field-replaceable PSMs)
- 6 x redundant fans, airflow out (front-to-back)
- Routing Engine: 2.9 GHz six-core Intel CPU, 64 GB memory, 2 x 100 GB SSD
- TAA compliant

FAQs

Q: What power type does the ACX7100-32C-DCO-KT use?
A: This variant uses redundant, field-replaceable DC power supply modules. It is the DC-powered version of the ACX7100-32C.

Q: What does AFO mean in this model?
A: AFO means airflow out, so cooling air flows front-to-back through the chassis. Choose this variant to match your rack's hot-aisle and cold-aisle layout.

Q: Is this router TAA compliant?
A: Yes. The ACX7100-32C-DCO-KT is a TAA-compliant version of the ACX7100 chassis.

Q: Does it support high-power ZR/ZR+ coherent optics?
A: Yes. The thermal design allows unrestricted use of high-power ZR/ZR+ transceivers across all supporting ports.

Q: Which operating system does it run?
A: It runs Junos OS Evolved on a Routing Engine with a 2.9 GHz six-core Intel CPU, 64 GB memory and 2 x 100 GB SSD.

Q: How much forwarding capacity does it provide?
A: The ACX7100 platform delivers 4.8 Tbps of ASIC forwarding capacity in a 1U fixed chassis.
