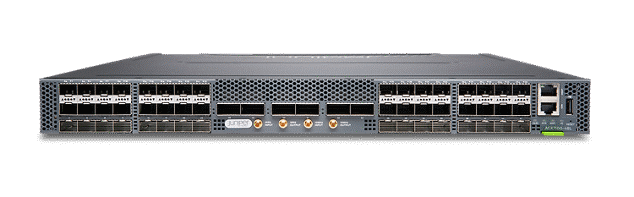

• Juniper ACX7100-32C-DCO-K gray metal server rack with ports and vents
1 1

Juniper

Juniper ACX7100-32C-DCO-K | ACX7100-32C Cloud Metro Router, 32x 100G QSFP28, 4x 400G QSFP56-DD, DC PSU

Juniper ACX7100-32C-DCO-K | ACX7100-32C Cloud Metro Router, 32x 100G QSFP28, 4x 400G QSFP56-DD, DC PSU

Authorised Juniper Partner

ACX7100-32C-DCO-K

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Juniper ACX7100-32C is a fixed-configuration 1U cloud metro router with 4.8 Tbps of ASIC forwarding capacity, built for high-density service aggregation in metro and high-end multiservices networks. This variant provides 32 multi-rate 100GbE QSFP28 ports and 4 x 400GbE QSFP56-DD ports, with redundant DC power supply modules and front-to-back (airflow out, AFO) cooling for telco and data centre deployments.

It runs Junos OS Evolved with automation, zero-touch provisioning and programmability, and supports MACsec line-rate encryption on all QSFP28 and QSFP56-DD ports. The QSFP56-DD ports support ZR/ZR+ pluggable coherent optics, and the QSFP28 ports can be channelised to 10, 25 and 50GbE for flexible port breakout.

Features

- Deep-buffer, high-density service aggregation for secure metro and high-end multiservices applications
- MACsec on all ports for line-rate link encryption
- Port channelisation and multi-rate support (10/25/50/100/400GbE)
- Supports ZR/ZR+ pluggable coherent optics on QSFP56-DD ports
- Junos OS Evolved with zero-touch provisioning, automation and programmability
- Redundant power supply modules and fan cooling

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 32 x 100GbE QSFP28 ports, multi-rate and channelizable to 10/25/50GbE
- 4 x 400GbE QSFP56-DD ports
- 4.8 Tbps ASIC throughput
- MACsec supported on all QSFP28 and QSFP56-DD ports
- DC power input: -48 VDC to -60 VDC with redundant power supply modules
- Typical power draw 570 W, maximum 960 W (without optics)
- Cooling: 6 fans, front-to-back airflow (AFO)
- Dimensions: 44.09 x 4.45 x 59.49 cm, 1U
- Weight: 12.7 kg fully configured
- Control plane: 2.9 GHz six-core Intel CPU, 64 GB memory, 2 x 100 GB SSD
- Operating system: Junos OS Evolved

FAQs

Q: What power input does the ACX7100-32C-DCO-K use?
A: This variant uses DC power supply modules with an input of -48 VDC to -60 VDC, with redundant power supply modules.

Q: What does AFO mean for airflow?
A: AFO means airflow out, with front-to-back airflow through the chassis. Check that this matches the hot and cold aisle orientation of your rack.

Q: Which operating system does this router run?
A: It runs Junos OS Evolved, which includes zero-touch provisioning, automation and programmability.

Q: Can the QSFP28 ports run at speeds below 100GbE?
A: Yes. The 32 QSFP28 ports are multi-rate and can be channelised to 10, 25 and 50GbE.

Q: Does it support link encryption?
A: Yes. MACsec is supported on all QSFP28 and QSFP56-DD ports.

Q: Does it support coherent optics?
A: Yes. The 400GbE QSFP56-DD ports support ZR/ZR+ pluggable coherent optics.
