Juniper ACX7100-32C-ACO-KT | ACX7100 Cloud Metro Router, AC PSU, AFO, TAA

Authorised Juniper Partner

SKU:ACX7100-32C-ACO-KT

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

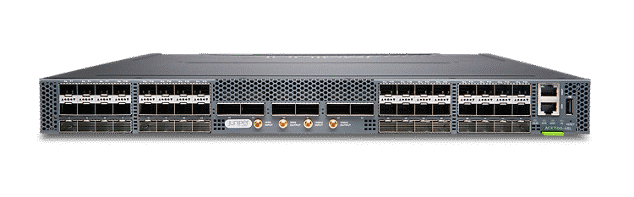

The Juniper ACX7100-32C-ACO-KT is a fixed 1U ACX7100 Cloud Metro router chassis supplied as a TAA-compliant kit with AC power supplies and airflow-out (AFO) cooling. It provides 32 SFP56 ports and 6 QSFP56-DD multi-rate ports, designed for dense fan-out in the IP service fabric of a metro network.

The ACX7100 family delivers 4.8 Tbps of ASIC throughput in a compact, power-efficient 1U platform. It suits service provider and enterprise metro aggregation, edge and cloud connectivity deployments that need high port density, flexible port speeds and AC-powered operation.

Features

- 4.8 Tbps ASIC throughput in a power-efficient 1U fixed platform
- Dense fan-out for metro IP service fabric deployments
- Multi-rate SFP56 and QSFP56-DD ports for flexible speed options
- Port breakout options on supported port groups
- AC powered with airflow-out (AFO) cooling for data centre and exchange layouts
- TAA-compliant kit suitable for government procurement

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Fixed 1U chassis
- 32 x SFP56 ports
- 6 x QSFP56-DD multi-rate ports
- 4.8 Tbps ASIC throughput, full duplex
- AC power supply
- Airflow-out (AFO) cooling
- TAA compliant
- Supplied as kit (-KT)

FAQs

Q: What type of power supply does the ACX7100-32C-ACO-KT use?
A: This kit is supplied with AC power supplies, so it connects to standard AC power feeds.

Q: What does AFO mean in the part number?
A: AFO stands for airflow-out, which defines the direction of cooling airflow through the chassis. Confirm it matches your rack's hot and cold aisle layout before ordering.

Q: Is this router TAA compliant?
A: Yes, this SKU is a TAA-compliant kit, suitable for procurement that requires TAA compliance.

Q: How many ports does the ACX7100-32C-ACO-KT provide?
A: It provides 32 SFP56 ports and 6 QSFP56-DD multi-rate ports in a fixed 1U chassis.

Q: What is the switching throughput of the ACX7100 platform?
A: The ACX7100 family delivers 4.8 Tbps of ASIC throughput, full duplex.

Q: What is the difference between the standard ACX7100 and this kit SKU?
A: This -KT SKU is the TAA-compliant kit with AC power supplies and airflow-out cooling, so it is the right choice where TAA compliance and AFO airflow are required.
