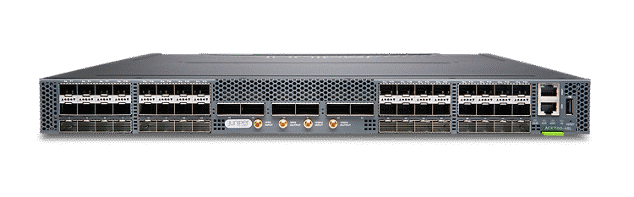

Juniper ACX7100-32C-ACO-K | ACX7100-32C Cloud Metro Router, 32x QSFP28, 4x QSFP56-DD, AC, AFO

Authorised Juniper Partner

SKU:ACX7100-32C-ACO-K

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The ACX7100-32C is a 1U fixed cloud metro router delivering high-end multiservice routing with 4.8 Tbps of forwarding capacity. This variant provides 32 QSFP28 100GbE ports and 4 QSFP56-DD 400GbE ports, fitted with an AC power supply and airflow-out (AFO) cooling for front-to-back airflow in the rack.

At only 60 cm deep, the compact and power-efficient chassis suits metro aggregation, edge and data centre interconnect deployments where space and energy budgets matter. Multi-rate ports support both 100GbE and 400GbE optics, and the platform is managed through Juniper Routing Director and Paragon Automation.

Features

- Multiservice cloud metro routing in a compact 1U platform
- Multi-rate ports supporting 100GbE and 400GbE
- Managed via Juniper Routing Director and Paragon Automation
- Power-efficient design
- Airflow-out (AFO) cooling for front-to-back rack airflow

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 32 x 100GbE QSFP28 ports (multi-rate)
- 4 x 400GbE QSFP56-DD ports
- 4.8 Tbps forwarding capacity
- 1U fixed form factor, 60 cm deep
- AC power supply (JPSU-1600W-1UACAFO)
- JNP7100 fan tray, front-to-back airflow (AFO)

FAQs

Q: What port configuration does the ACX7100-32C-ACO-K provide?
A: It provides 32 QSFP28 100GbE ports and 4 QSFP56-DD 400GbE ports, all multi-rate, giving 4.8 Tbps of forwarding capacity.

Q: What does AFO mean on this model?
A: AFO stands for airflow out. The fan tray and AC power supply move air front to back, so plan your rack hot and cold aisle layout accordingly.

Q: What power supply is used?
A: This variant uses an AC power supply, the JPSU-1600W-1UACAFO, matched to the airflow-out fan tray.

Q: What is the form factor and depth?
A: It is a 1U fixed chassis that is 60 cm deep, suitable for space-constrained metro and edge racks.

Q: How is the ACX7100-32C managed?
A: It can be managed through Juniper Routing Director and Paragon Automation for automated provisioning and operations.

Q: Where is this router typically deployed?
A: It is designed as a cloud metro router for multiservice aggregation and edge roles requiring dense 100GbE and 400GbE connectivity.
