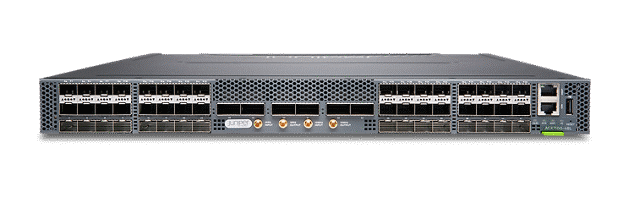

Juniper ACX7100-32C-AC-AO | ACX7100 Router, 32x QSFP28, 4x QSFP56-DD, AC PSU, AFO

Authorised Juniper Partner

SKU:ACX7100-32C-AC-AO

In stock:2

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Juniper ACX7100-32C-AC-AO is a 1U fixed-configuration Cloud Metro router with 4.8 Tbps of forwarding capacity, built for dense 100GbE and 400GbE fan-out. This SKU provides 32 x QSFP28 ports plus 4 x QSFP56-DD ports, dual AC power supplies and front-to-back (AFO) airflow, making it well suited to metro aggregation and service provider edge deployments where rack space and power efficiency matter.

The ACX7100 runs Junos OS Evolved and supports MACsec on all ports, multi-rate port speeds through breakout, and PTP grandmaster clock use with a QSA adaptor on port 31. Hot-swappable power supplies and 5+1 redundant fan modules keep the platform serviceable in production, and its 60 cm depth suits compact cabinet layouts.

Features

- High-density 100GbE and 400GbE fan-out for Cloud Metro IP service fabrics
- Compact 60 cm depth with a power-efficient design
- Hot-removable and hot-insertable PSUs and fans
- Supports 10/25/50/100/400GbE port speeds through breakout
- Supports PTP grandmaster clock use with a QSA adaptor on port 31
- MACsec encryption available on all ports

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 32 x 100GbE QSFP28 ports (QSFP-DD capable), multi-rate
- 4 x 400GbE QSFP56-DD ports
- 4.8 Tbps ASIC throughput
- Fixed 1U chassis (JNP7100-32C-CHAS)
- Dimensions (W x H x D): 44.09 x 4.45 x 59.49 cm (17.36 x 1.75 x 23.42 in)
- Weight fully loaded: approx. 12.7 kg (28 lb)
- 2 x hot-swappable AC power supplies, 100-240 VAC, 50-60 Hz
- Power consumption: 570 W typical, 960 W maximum (without optics)
- 6 fan modules (5+1 redundancy), hot-swappable, front-to-back airflow (AFO)
- CPU: 2.9 GHz six-core Intel, 64 GB DRAM
- MACsec support on all ports
- Runs Junos OS Evolved
- Operating temperature 0-40 °C, humidity 5-90% non-condensing

FAQs

Q: What airflow direction does the ACX7100-32C-AC-AO use?
A: This SKU uses front-to-back airflow (AFO), with the fan modules drawing air through the port side and exhausting at the rear.

Q: What power supplies does this model include?
A: It uses two hot-swappable AC power supply modules rated for 100-240 VAC at 50-60 Hz. Typical power consumption is 570 W and maximum is 960 W without optics.

Q: Which port types and speeds does it support?
A: It provides 32 x QSFP28 100GbE ports (also QSFP-DD capable) and 4 x QSFP56-DD 400GbE ports, with 10/25/50/100/400GbE speeds available through breakout.

Q: Which operating system does the ACX7100 run?
A: It runs Junos OS Evolved. Software feature licensing requirements should be confirmed against your intended deployment.

Q: Does this router support MACsec and precision timing?
A: Yes. MACsec is supported on all ports, and PTP grandmaster clock use is supported with a QSA adaptor on port 31.

Q: How does this SKU differ from other ACX7100-32C variants?
A: This variant combines AC power supplies with front-to-back (AFO) airflow. Other variants in the family differ by power supply type and airflow direction.
