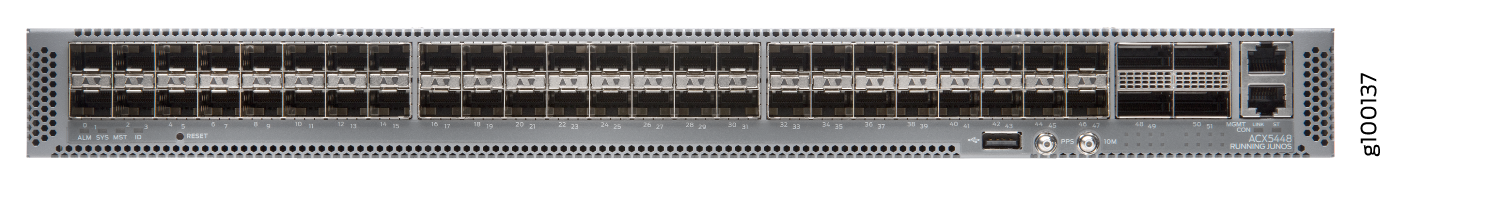

• Juniper ACX5448-X-AC-AFO gray metal network switch with ports and vents
1 1

Juniper

Juniper ACX5448-X-AC-AFO | ACX5448 Router, AC, 48x 1G/10G, 4x 100G, Front-to-Back

Juniper ACX5448-X-AC-AFO | ACX5448 Router, AC, 48x 1G/10G, 4x 100G, Front-to-Back

Authorised Juniper Partner

ACX5448-X-AC-AFO

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The ACX5448-X-AC-AFO is a 1-RU universal metro router combining 48 flexible 1GbE/10GbE SFP/SFP+ ports with four 40GbE/100GbE QSFP28 uplinks. This AC-powered, front-to-back airflow variant carries the -X software tier, which includes L2 features, IGP, MPLS and BGP without VRF, making it suited to metro aggregation, IP/MPLS VPN services and service provider edge deployments preparing for 5G rollout.

Built on Junos OS, the ACX5448 delivers Layer 3 VPN, integrated routing and bridging, and L2-L4 stateless filtering in a compact, space- and cost-optimised chassis. Redundant AC power supplies and hot-swappable fan modules support resilient operation, while the 10GbE to 100GbE port mix eases migration as bandwidth demands grow.

Features

- Full Metro Ethernet and IP/MPLS VPN services in a space- and cost-optimised platform
- Smooths the transition from 10GbE to 100GbE for service providers preparing for 5G rollout
- Layer 3 VPN, integrated routing and bridging (IRB), and L2-L4 stateless filters
- 8 queues per port with schedulers and shaping
- Hot-swappable redundant fans and AC power supplies

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 48 x 1GbE/10GbE SFP/SFP+ ports
- 4 x 40GbE/100GbE QSFP28 uplink ports
- 52 ports total
- Redundant AC power supplies
- Redundant fan modules, front-to-back airflow
- FIB up to 256K routes (no VRF)
- Software tier includes L2 features, IGP, MPLS, BGP
- Dimensions (W x H x D): 43.84 x 4.33 x 55.41 cm (17.26 x 1.7 x 21.81 in)
- Weight fully loaded: approx. 10.18 kg
- 1-RU rack-mountable
- Operating temperature 0-55 °C, humidity 5-90% non-condensing
- Runs Junos OS

FAQs

Q: What port configuration does the ACX5448-X-AC-AFO offer?
A: It provides 48 x 1GbE/10GbE SFP/SFP+ ports and 4 x 40GbE/100GbE QSFP28 uplink ports, for 52 ports in a 1-RU chassis.

Q: What does the -X suffix mean on this model?
A: The -X denotes the software feature tier, which includes L2 features, IGP, MPLS and BGP, without VRF support.

Q: What power and airflow arrangement does this SKU use?
A: This variant has redundant AC power supplies and front-to-back airflow with redundant fan modules.

Q: Which operating system does it run?
A: The ACX5448 runs Junos OS.

Q: Are the power supplies and fans hot-swappable?
A: Yes, the redundant fans and AC power supplies are hot-swappable, supporting maintenance without taking the router offline.

Q: What are the physical dimensions and rack space requirements?
A: The router is 1-RU rack-mountable and measures 43.84 x 4.33 x 55.41 cm (W x H x D), weighing approximately 10.18 kg fully loaded.
