Juniper ACX5448-H-A-AC-AFO | ACX5448 Metro Router, AC, Front-to-Back, 24x10GE + 2x100GE, L2 + IGP

Authorised Juniper Partner

SKU:ACX5448-H-A-AC-AFO

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The ACX5448-H-A-AC-AFO is a fixed-configuration 1U ACX5448 universal metro router with AC power and front-to-back airflow, built for service provider metro aggregation and edge deployments. This bundle ships with 24 x 10GE and 2 x 100GE active ports, includes L2 features and IGP, and supports a FIB of up to 256K routes. It does not include a right-to-use for MPLS, VRF or BGP.

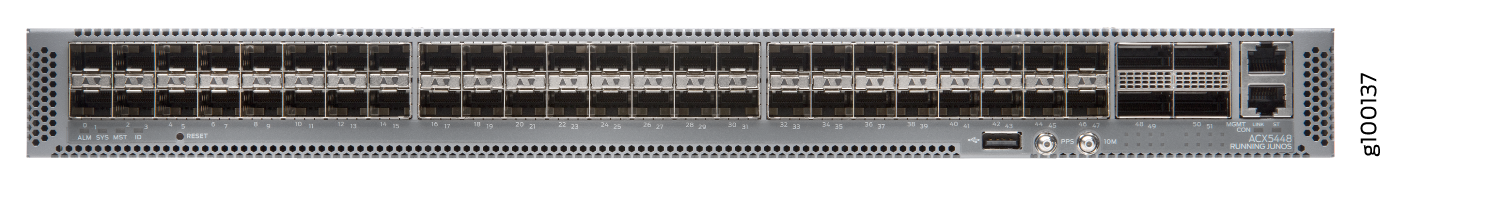

The chassis provides 48 x 1GbE/10GbE SFP+/SFP ports and 4 x 40GbE/100GbE QSFP28 uplink ports, with 800 Gbps throughput, redundant AC power supplies and redundant fans. It supports a smooth transition from 10GbE to 100GbE for 5G-ready service provider networks, and additional services can be enabled with the appropriate licences.

Features

- Full Metro Ethernet and IP/MPLS VPN services (with appropriate licences)
- Smooth transition from 10GbE to 100GbE for 5G-ready service provider networks
- Supports Juniper Unified PON technology
- Redundant AC power supplies and fans for high availability
- Dense 1GbE/10GbE access with 100GbE uplinks in a 1U chassis

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 48 x 1GbE/10GbE SFP+/SFP ports (24 x 10GbE enabled in this bundle)
- 4 x 40GbE/100GbE QSFP28 uplink ports (2 x 100GbE enabled in this bundle)
- 800 Gbps throughput
- Redundant AC power supplies and redundant fans
- Front-to-back airflow (AFO)
- 1U fixed-configuration chassis
- FIB up to 256K
- No right-to-use for MPLS, VRF and BGP
- Includes L2 features and IGP

FAQs

Q: How many ports are active on the ACX5448-H-A-AC-AFO?
A: This bundle has 24 x 10GbE and 2 x 100GbE active ports out of the 48 x 1GbE/10GbE and 4 x 40GbE/100GbE ports on the chassis.

Q: Does this model include MPLS, VRF or BGP?
A: No. This bundle includes L2 features and IGP only, with no right-to-use for MPLS, VRF or BGP.

Q: What airflow and power configuration does this SKU use?
A: It uses front-to-back airflow (AFO) with redundant AC power supplies and redundant fans.

Q: What is the maximum FIB size?
A: The FIB supports up to 256K routes in this configuration.

Q: What form factor is the ACX5448?
A: It is a fixed-configuration 1U chassis suitable for rack mounting in metro aggregation and edge sites.

Q: What optics are required for the ports?
A: The SFP+/SFP ports accept 1GbE and 10GbE optics, and the QSFP28 ports accept 40GbE or 100GbE optics. Optics are not included with the router.
