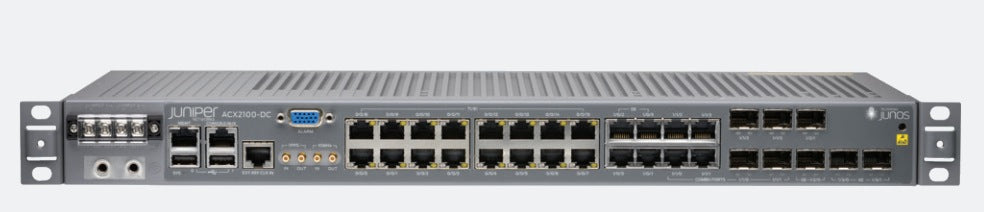

Juniper ACX2100-AC | ACX2100 Universal Metro Router, 1RU Fanless, SyncE

Authorised Juniper Partner

SKU:ACX2100-AC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Juniper ACX2100 Universal Metro Router is a compact 1RU fanless router purpose-built for mobile backhaul, metro access, and carrier aggregation deployments. Temperature-hardened and passively cooled, it delivers full IP/MPLS services with SyncE and IEEE 1588 PTP timing synchronisation — essential for 4G/5G cell site and MSO backhaul networks. With 16x T1/E1, 4x GbE RJ45, 4x GbE combo SFP/RJ45, 2x GbE SFP, and 2x 10GbE SFP+ ports, it provides flexible interface density in a rugged, silent chassis.

Running Juniper Junos OS, the ACX2100 supports NEBS Level 3 compliance, MEF CE2.0 Ethernet services, and full L2/L3 IP/MPLS functionality. Zero-Touch Deployment (ZTD) accelerates provisioning, while NETCONF, YANG, SNMP v2/v3, and on-box Python/SLAX scripting enable deep automation and integration into service provider environments. The redundant AC power supply ensures high availability for mission-critical edge deployments.

Features

- Environmentally hardened chassis for outdoor, harsh, and extreme temperature deployments
- Fanless passive cooling — silent, reliable operation with no moving parts
- SyncE and IEEE 1588 Precision Time Protocol (PTP) for frequency and phase synchronisation
- Full IP/MPLS with seamless L2/L3 end-to-end services
- MEF CE2.0 compliant — supports both Ethernet and IP/MPLS carrier services
- Zero-Touch Deployment (ZTD) for rapid, automated provisioning at scale
- NETCONF, YANG, SNMP v2/v3, CLI, and SLAX/Python on-box scripting for network automation
- Fully customisable via Juniper Junos SDK with open APIs
- Redundant AC power supply for high availability and carrier-grade uptime
- Designed for microwave cell site aggregation, MSO mobile backhaul, and SP metro access

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 16 x T1/E1 Interfaces
- 4 x Copper GbE RJ45 (10/100/1000 Mbps) Ports
- 4 x GbE Combo Ports (SFP or RJ45)
- 2 x GbE SFP Ports
- 2 x 10GbE SFP+ Ports
- Form Factor: 1RU — 17.5 x 1.75 x 9.4 in (44.5 x 4.4 x 24 cm)
- Power: Redundant AC Power Supply
- Synchronisation: SyncE (Synchronous Ethernet) and IEEE 1588 PTP
- Cooling: Fanless / Passive Cooling
- Temperature Hardened Design
- Weight: 8.3 lb (3.77 kg)
- Operating System: Juniper Junos OS
- NEBS Level 3 Compliant (GR-63-CORE, GR-1089-CORE)

FAQs

Q: What is the Juniper ACX2100 designed for?
A: The ACX2100 is a Universal Metro Router designed for mobile backhaul (4G/5G cell site aggregation), metro access, and carrier aggregation deployments. Its temperature-hardened, fanless design makes it ideal for outdoor cabinet, roadside, and harsh environment installations where silent, reliable operation is critical.

Q: Does the ACX2100 support timing synchronisation for mobile networks?
A: Yes. The ACX2100 supports both SyncE (Synchronous Ethernet) for frequency synchronisation and IEEE 1588 Precision Time Protocol (PTP) for phase and time-of-day synchronisation — both essential for LTE and 5G radio access network backhaul.

Q: What interfaces does the ACX2100 provide?
A: The ACX2100 includes 16x T1/E1 ports, 4x GbE RJ45 copper ports, 4x GbE combo SFP/RJ45 ports, 2x GbE SFP ports, and 2x 10GbE SFP+ uplink ports — providing flexible multi-service interface density in a single 1RU chassis.

Q: Is the ACX2100 compliant with telco and carrier standards?
A: Yes. The ACX2100 is NEBS Level 3 certified (GR-63-CORE, GR-1089-CORE) and MEF CE2.0 compliant, meeting the rigorous environmental, safety, and service standards required for carrier and service provider network deployments.

Q: Can I automate provisioning and management on the ACX2100?
A: Yes. The ACX2100 runs Juniper Junos OS and supports Zero-Touch Deployment (ZTD), NETCONF, YANG, SNMP v2/v3, and on-box scripting via SLAX and Python — enabling full automation and integration with modern network orchestration platforms.

Q: Can I purchase the Juniper ACX2100 in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is a specialist Australian B2B IT hardware reseller supplying Juniper networking equipment including the ACX Series. Contact us for pricing, availability, and deployment advice tailored to your service provider or enterprise requirements.
