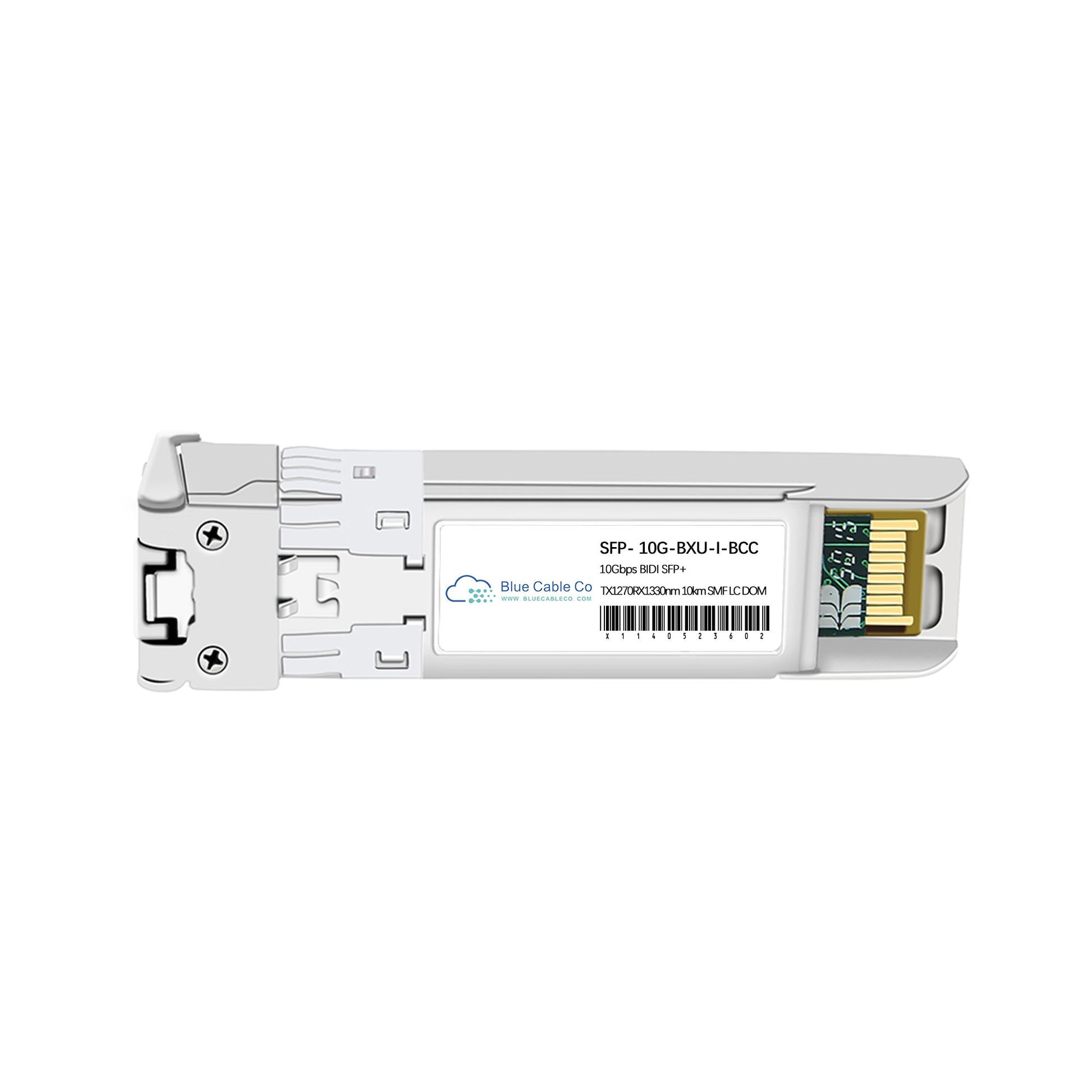

• JNP-SFP-10G-BX10U-BCC Juniper 10G BiDi SFP transceiver white module
1 1

Blue Cable Co

JNP-SFP-10G-BX10U-BCC | Juniper Compatible 10GB BiDi Transceiver - 10km (10GBASE-BX-U)

JNP-SFP-10G-BX10U-BCC | Juniper Compatible 10GB BiDi Transceiver - 10km (10GBASE-BX-U)

JNP-SFP-10G-BX10U-BCC

In stock:5

$89.10 AUD
$89.10 AUD
$89.10 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The JNP-SFP-10G-BX10U-BCC is a drop-in compatible replacement for the Juniper JNP-SFP-10G-BX10U. This plug-and-play BiDi transceiver integrates seamlessly with Juniper switches and routers equipped with SFP+ ports. - 10GBASE-BX-U compliant BiDi transceiver delivers 10Gbps bidirectional transmission over a single strand of single-mode fibre - Transmits at 1270nm and receives at 1330nm, enabling WDM operation that doubles fibre capacity compared to standard SFP+ modules - SFP+ form factor with simplex LC connector, up to 10km reach over OS2 single-mode fibre - DDM support provides real-time monitoring of optical power, temperature, transmit bias current, and receiver sensitivity - Commercial temperature range (0 to 70C) with power consumption under 1.2W - Must be deployed in pairs with a complementary 1330nm-TX/1270nm-RX transceiver (JNP-SFP-10G-BX10D) at the opposite end

Features

• 10GBASE-BX-U standard compliance guarantees bidirectional 10G Ethernet operation over single-strand fibre with paired wavelength coordination
• WDM technology uses 1270nm DFB transmitter and 1330nm PIN receiver in a single module, transmitting and receiving simultaneously on one fibre strand
• Requires pairing with complementary JNP-SFP-10G-BX10D transceiver (1330nm-TX/1270nm-RX) at the remote end for full-duplex bidirectional link
• DDM interface exposes real-time diagnostics including transmit and receive optical power, module temperature, transmit bias current, and supply voltage for proactive link management
• Simplex LC connector halves fibre port requirements compared to duplex transceivers, preserving infrastructure capacity in fibre-constrained deployments
• Commercial temperature rating (0 to 70C) suits standard data centre and enterprise networking environments with controlled climate
• Hot-swappable SFP+ form factor supports field replacement without powering down host equipment

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Alternate Part Codes

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: JNP-SFP-10G-BX10U-BCC
Compatible Replacement For: JNP-SFP-10G-BX10U
Compatibility: Juniper compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP+
Data Rate: 10Gbps (9.95 to 10.3Gbps)
Standards: 10GBASE-BX-U, IEEE 802.3ae, SFP+ MSA, SFF-8431
Wavelength: Tx 1270nm, Rx 1330nm
Fibre Type: Single-mode (SMF)
Connector Type: LC simplex
Max Reach: Up to 10km over OS2 single-mode fibre
DOM Support: Yes (DDM)
Operating Temperature: 0 to 70C (commercial)
Power Consumption: <1.2W

Alternate Part Codes

740-066991

FAQs

Q: Will this work in place of the Juniper JNP-SFP-10G-BX10U?
A: Yes. This transceiver is a direct drop-in replacement for the Juniper JNP-SFP-10G-BX10U. It supports the same 10GBASE-BX-U standard, SFP+ form factor, 1270nm-TX/1330nm-RX wavelength pair, and 10km reach over single-mode fibre. It is plug-and-play compatible with Juniper platforms that support the reference SKU.

Q: Which Juniper platforms support this BiDi transceiver?
A: This transceiver is compatible with Juniper switches and routers equipped with SFP+ ports that support 10GBASE-BX operation. Juniper documents this module for use across QFX, EX, MX, and other platform families with 10G SFP+ interfaces. Verify your specific platform and software version support 10GBASE-BX BiDi optics via Juniper's hardware compatibility tool.

Q: Why does this module require a paired transceiver at the opposite end?
A: BiDi transceivers use WDM to transmit and receive on different wavelengths over a single fibre strand. This module transmits at 1270nm and receives at 1330nm. The remote end must use a complementary transceiver (such as JNP-SFP-10G-BX10D) that transmits at 1330nm and receives at 1270nm. The wavelength pairing ensures each end can decode the incoming signal without interference.

Q: Can I mix this transceiver with standard 10GBASE-LR modules on the same link?
A: No. Standard 10GBASE-LR modules use duplex fibre (separate TX and RX strands) and operate at 1310nm on both ends. BiDi modules require simplex fibre and complementary wavelength pairs. The physical connector, fibre topology, and wavelength design are incompatible. Each link end must use the correct BiDi pair (1270nm-TX/1330nm-RX and 1330nm-TX/1270nm-RX).

Q: What fibre type and patch cable are required for 10km reach?
A: This transceiver requires OS2 single-mode fibre (G.652.D) and a simplex LC-LC single-mode patch cable. The 10km maximum reach assumes clean fibre end-faces, compliant insertion loss, and appropriate fibre plant conditions. Verify total link budget (including connector loss, splice loss, and fibre attenuation) stays within the module's transmit power and receiver sensitivity specifications for reliable operation.
