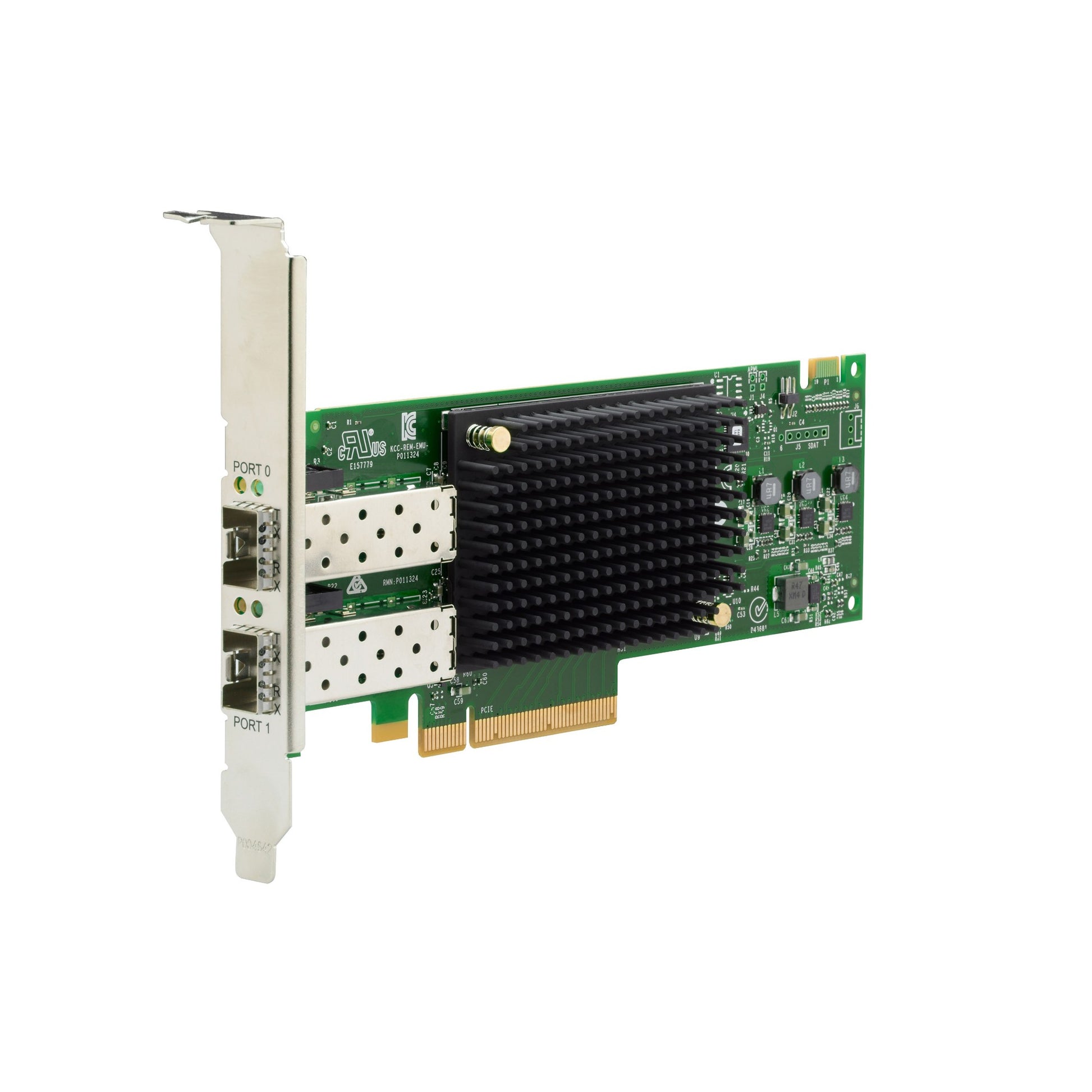

• Green circuit board network card with two sfp ports and black heat sink for hpe s4s01a sn1620e 2-port 32gb fibre channel
1 1

HPE

HPE S4S01A | SN1620E 2-Port 32Gb Fibre Channel SecureHBA, PCIe 4.0

HPE S4S01A | SN1620E 2-Port 32Gb Fibre Channel SecureHBA, PCIe 4.0

S4S01A

Stock Status: Enquire

$1,824.13 AUD
$1,824.13 AUD
$1,824.13 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The HPE SN1620E 2-Port 32Gb Fibre Channel Host Bus Adapter is a Gen7 PCIe 4.0 HBA engineered for enterprise SAN environments demanding high throughput and advanced security. Delivering up to 12,800 MB/s aggregate bandwidth across two 32GFC ports, it supports both SCSI (FCP) and FC-NVMe protocols simultaneously — making it ideal for flash storage deployments requiring ultra-low latency. What sets this HBA apart is its SecureHBA designation: it incorporates post-quantum cryptography (PQC) hardware encryption, FC-SP3 end-to-end in-flight data encryption, SPDM device authentication, and a Hardware Root of Trust — providing comprehensive protection from the host to the storage array without additional software licensing.

The SN1620E is backward compatible with 16Gb and 8Gb FC environments and forward compatible with 64Gb FC, protecting your infrastructure investment over multiple technology generations. It integrates with HPE iLO for factory-verified adapter authentication, supports HPE ProLiant Active Health System diagnostics, and features non-disruptive firmware upgrades to minimise server downtime. Compatible with Windows, Red Hat Linux, SUSE Linux, and VMware. Available now at iptrading.com.au — competitive prices and local support.

Features

- Post-Quantum Cryptography (PQC) hardware encryption guards against future quantum computer-based attacks
- FC-SP3 end-to-end in-flight data encryption from HBA to storage array — no application-based encryption licensing required
- SPDM device authentication with factory-installed certificate verified via HPE iLO — confirms adapter integrity on the PCI bus
- Hardware Root of Trust (RoT) prevents malicious firmware from being introduced into the adapter
- Secure firmware update ensures only authenticated firmware is applied; non-disruptive upgrades reduce server downtime
- Dual-protocol support: SCSI (FCP) and FC-NVMe on either port simultaneously for deployment flexibility
- FC-NVMe support delivers lower latency for NVMe all-flash storage environments
- T10 Protection Information (T10-PI) with hardware offload ensures data integrity from server to storage
- Class Specific Control (CSCTL) enables prioritisation and bandwidth allocation at the LUN level
- Virtual Machine ID (VM-ID) support for VM-aware storage networking in virtualised environments
- Forward Error Correction (FEC) automatically corrects in-flight transmission errors
- HPE ProLiant Active Health System integration for accelerated troubleshooting and diagnostics
- LED beaconing for easy physical port identification in high-density environments
- Compatible with all 32Gb and 64Gb Fibre Channel switches and directors
- HPE GreenLake SAN management tool integration for cloud-based infrastructure management

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 2 x 32Gb Fibre Channel
- Host Interface: PCIe 4.0
- Controller: Gen7 Emulex
- Aggregate Bandwidth: Up to 12,800 MB/s (2 x 32GFC ports)
- Protocol Support: SCSI (FCP) and FC-NVMe simultaneously
- Backward Compatibility: 16Gb and 8Gb Fibre Channel
- Forward Compatibility: 64Gb Fibre Channel
- Security: FC-SP3 in-flight end-to-end data encryption
- Security: Post-Quantum Cryptography (PQC) hardware encryption
- Security: SPDM device authentication with factory-installed certificate
- Security: Hardware Root of Trust (RoT) for firmware integrity
- Data Integrity: T10 Protection Information (T10-PI) with hardware offload
- Form Factor: PCIe Low Profile
- OS Support: Windows, Red Hat Linux, SUSE Linux, VMware
- Warranty: 3-Year Parts Exchange

FAQs

Q: What makes the HPE SN1620E a 'SecureHBA' compared to a standard 32Gb HBA?
A: The SN1620E includes a suite of hardware-level security features not found on standard HBAs: FC-SP3 end-to-end in-flight data encryption from the adapter to the storage array, post-quantum cryptography (PQC) to protect against future quantum-based threats, SPDM device authentication validated via HPE iLO, and a Hardware Root of Trust that prevents malicious firmware from being loaded. This eliminates the need for costly application-based encryption licensing while providing stronger, always-on protection.

Q: Is the HPE SN1620E compatible with existing 16Gb or 8Gb Fibre Channel SANs?
A: Yes. The SN1620E is fully backward compatible with 16Gb and 8Gb FC environments, allowing it to be deployed into existing SAN infrastructure without requiring a full fabric upgrade. It is also forward compatible with 64Gb FC, making it a sound long-term investment as your storage network evolves.

Q: Does the SN1620E support NVMe over Fibre Channel?
A: Yes. The SN1620E supports FC-NVMe (NVMe over Fibre Channel) for significantly lower latency access to NVMe-based all-flash storage arrays. It can run both SCSI (FCP) and FC-NVMe protocols simultaneously on either port, giving you deployment flexibility without requiring a second adapter.

Q: Which HPE servers is the SN1620E compatible with?
A: The HPE SN1620E is designed for use in HPE ProLiant servers with PCIe 4.0 slots and integrates with HPE iLO for SPDM-based device authentication and the HPE ProLiant Active Health System for diagnostics. It is also compatible with all 32Gb and 64Gb Fibre Channel switches and directors, and supports HPE GreenLake SAN management tools.

Q: Can I purchase the HPE SN1620E (S4S01A) in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) stocks HPE server accessories including the SN1620E SecureHBA (S4S01A) and offers competitive Australian pricing with local support. Contact our team for volume pricing, compatibility advice, or to discuss your SAN upgrade requirements.

Q: What operating systems are supported by the HPE SN1620E?
A: The SN1620E supports Windows Server, Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES), and VMware vSphere, covering the most common enterprise server OS environments. Non-disruptive firmware upgrades are supported to minimise maintenance windows.
