HPE S3T84A | MSA 2070 All-Flash SAN Storage, 32Gb FC, SFF, 46TB

Authorised HPE Partner

SKU:S3T84A

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

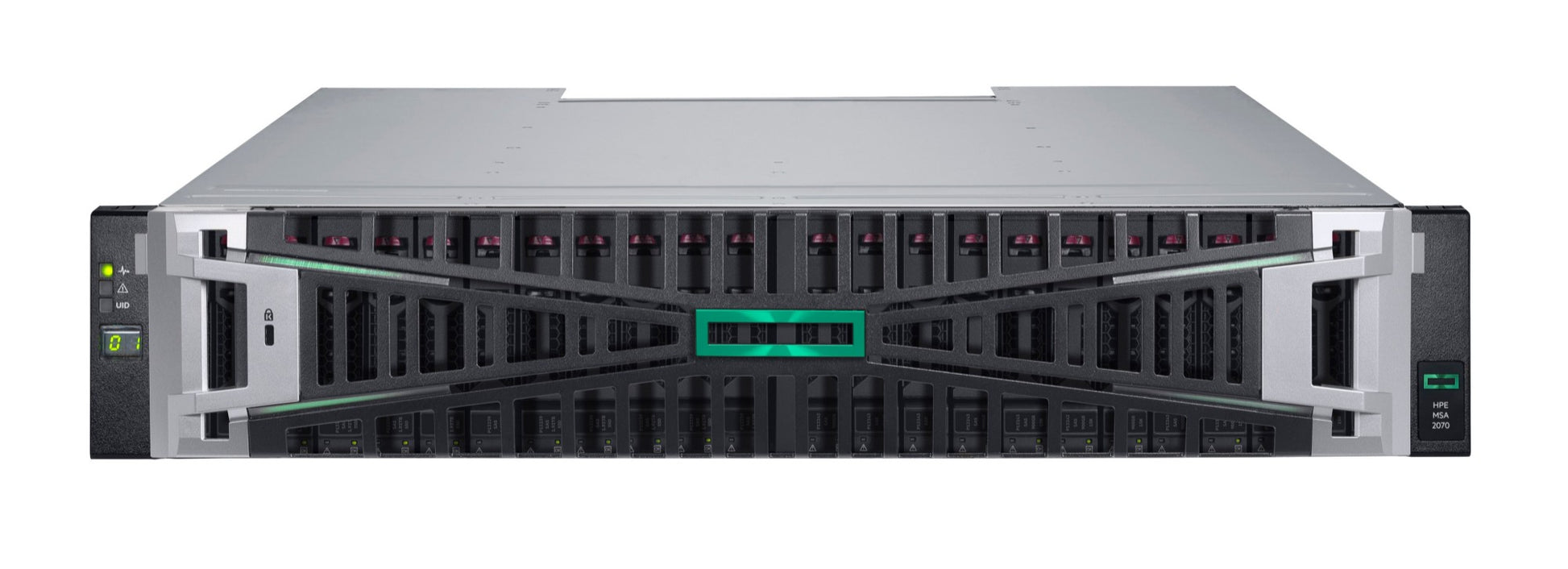

The HPE MSA 2070 32Gb Fibre Channel SFF 46TB Flash Bundle is an entry-level all-flash SAN storage array in a 2U small form factor chassis. It ships with two 32Gb Fibre Channel controllers with four ports each, twelve 3.84TB Read Intensive SSDs for approximately 46TB of raw capacity, and two 580W redundant power supplies.

Built on the MSA Gen7 platform, the array delivers up to 2x the random IOPS and up to 30% more sequential bandwidth than MSA Gen6. MSA-DP+ advanced RAID uses distributed spare capacity and rebuilds up to 25x faster than traditional RAID, while hot-swap controllers, drives and power supplies keep downtime to a minimum. The guided MSA Storage Management Utility makes setup simple, and the array is certified for HPE Morpheus VM Essentials Software.

Features

- Up to 2x random IOPS (783K vs 395K) and up to 30% more sequential bandwidth than MSA Gen6
- MSA-DP+ advanced RAID removes idle spare drives and speeds up rebuilds by up to 25x
- Simple setup in minutes with the guided MSA Storage Management Utility GUI
- Dashboard view of alerts, performance and capacity
- Hot-swap controllers, drives and power supplies for minimal downtime
- Online controller and media firmware updates
- MSA Health Check cloud tool at no additional charge
- Scales with grow-as-you-go SSD and HDD media 6-packs
- Certified for HPE Morpheus VM Essentials Software

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2U small form factor (SFF) all-flash SAN array
- 2 x 32Gb Fibre Channel controllers, 4 ports each
- 12 x 3.84TB Read Intensive SSD included
- Approx. 46TB raw capacity
- 2 x 580W redundant power supplies
- Family host connectivity options: 16/32Gb Fibre Channel, 10/25GbE iSCSI, 12Gb SAS
- Family maximum raw capacity: up to 7.37PB
- RAID: MSA-DP+ with distributed spare capacity
- Management: MSA Storage Management Utility (SMU) GUI and cloud-based MSA Health Check
- Condition: New

FAQs

Q: What host connectivity does the S3T84A provide?
A: This bundle includes two controllers with four 32Gb Fibre Channel ports each, for a total of eight 32Gb FC host ports.

Q: What drives are included in this bundle?
A: It includes twelve 3.84TB Read Intensive SSDs, giving approximately 46TB of raw flash capacity.

Q: Does the array have redundant power?
A: Yes. It ships with two 580W redundant power supplies, and the power supplies are hot-swappable.

Q: How does the MSA 2070 perform compared with MSA Gen6?
A: The MSA 2070 offers up to 2x the random IOPS (783K vs 395K) and up to 30% more sequential bandwidth than MSA Gen6.

Q: How is the array managed?
A: It is managed through the MSA Storage Management Utility GUI, which provides guided setup and a dashboard of alerts, performance and capacity. The cloud-based MSA Health Check tool is available at no additional charge.

Q: Can capacity be expanded later?
A: Yes. The MSA platform scales on a grow-as-you-go basis using SSD and HDD media 6-packs, with a family maximum raw capacity of up to 7.37PB.
