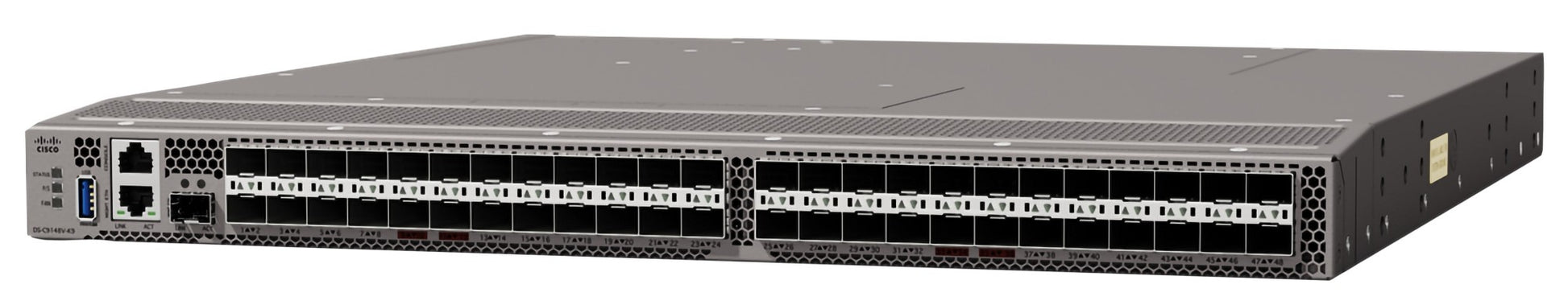

HPE S1V11A | SN6720C 64Gb Fibre Channel Switch, 48-Port, 24 Active, 32Gb SW SFP+

Authorised HPE Partner

SKU:S1V11A

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The SN6720C 64Gb Fibre Channel switch is a 1RU fabric switch from the HPE StoreFabric C-Series, built for SAN deployments that need high-bandwidth, resilient connectivity. This 48-port model ships with 24 active ports and 24 x 32Gb short wave SFP+ transceivers included, so it is ready to connect servers and storage arrays over 32Gb Fibre Channel from day one.

With up to 3 Tbps of aggregate switch bandwidth and support for 64Gb, 32Gb and 16Gb transceivers, it suits mixed-speed fabrics and staged upgrades. Non-disruptive software upgrades, hot-swappable dual power supplies, fan trays and optics, and a range of encryption options help keep storage networks available and secure.

Features

- Non-disruptive software upgrades
- Hot-swappable dual redundant power supplies
- Hot-swappable fan trays
- Hot-swappable SFP+ optics
- Stateful process restart
- Hardware-assisted Fibre Channel link encryption

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Port speed: 64Gb Fibre Channel
- 48 ports total, 24 active ports
- 24 x 32Gb short wave SFP+ transceivers included
- Aggregate switch bandwidth: 3 Tbps maximum
- Supports 64Gb, 32Gb and 16Gb transceivers
- Form factor: 1 RU, rack-mountable
- Dimensions: 4.37 cm x 43.94 cm x 45.72 cm (excluding PSU and fan-tray handles)
- Weight: 9.9 kg
- Airflow: back to front
- Encryption: SNMP v3 with AES, hardware-assisted FC link encryption, FC-SP ESP payload encryption, Cisco TrustSec payload encryption

FAQs

Q: How many ports are active on the S1V11A?
A: This SKU is a 48-port switch with 24 ports active. The 24 active ports are supplied with 24 x 32Gb short wave SFP+ transceivers.

Q: Are transceivers included?
A: Yes. 24 x 32Gb short wave SFP+ transceivers are included for the 24 active ports.

Q: Which transceiver speeds does the SN6720C support?
A: It supports 64Gb, 32Gb and 16Gb transceivers, which allows mixed-speed fabrics and gradual migration to faster links.

Q: Is the switch redundant and serviceable without downtime?
A: Yes. It has hot-swappable dual redundant power supplies, fan trays and SFP+ optics, and supports non-disruptive software upgrades and stateful process restart.

Q: What is the form factor and airflow direction?
A: It is a 1RU rack-mountable switch with back to front airflow, so plan the rack airflow orientation accordingly.

Q: What encryption options are supported?
A: It supports SNMP v3 with AES, hardware-assisted Fibre Channel link encryption, FC-SP ESP payload encryption and Cisco TrustSec payload encryption.
