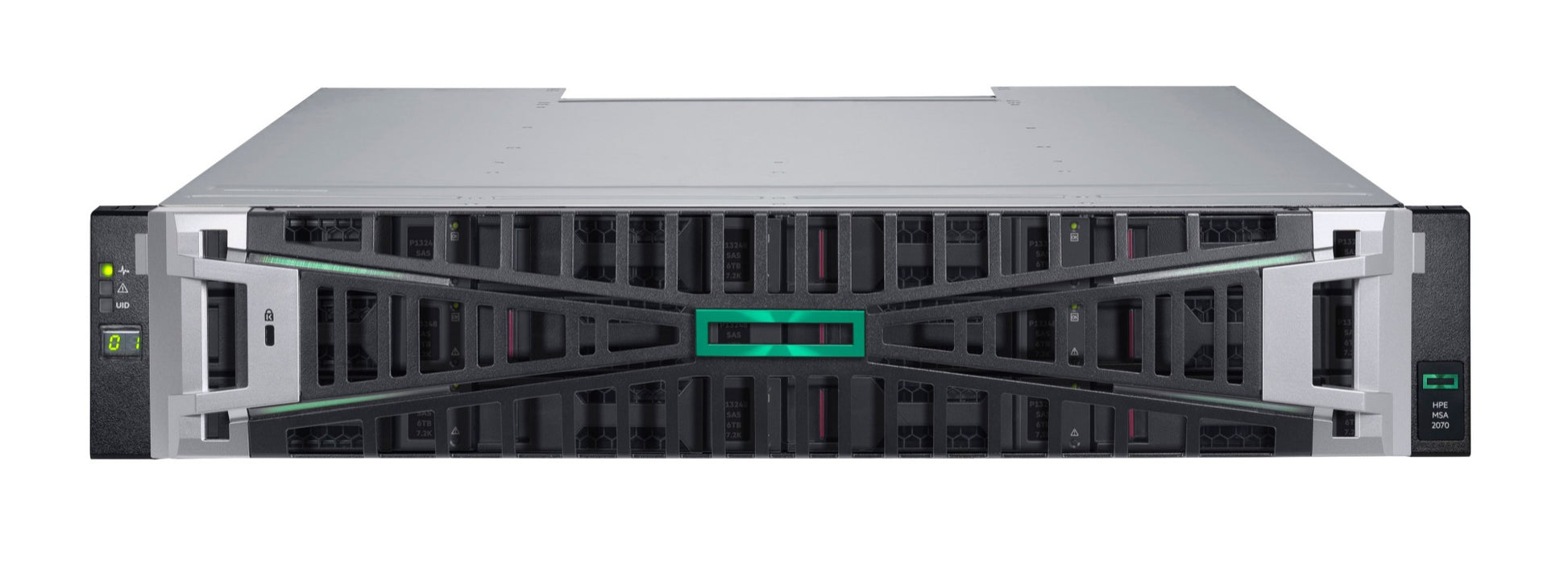

HPE S1H50A | MSA 2070 Gen7 SAN Array, 16Gb FC, 12-Bay LFF, TAA

Authorised HPE Partner

SKU:S1H50A

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The HPE MSA 2070 Gen7 SAN storage array is a 2U, 12-bay large form factor (LFF) block storage system fitted with two controllers, each providing four 16Gb Fibre Channel host ports. It is TAA-compliant, making it suited to government and public-sector procurement as well as SMB shared storage and virtualisation environments. The array supports SAS HDD and SSD media and ships without drives.

Two redundant 580W power supplies support continuous operation, and the array can be scaled with up to nine expansion enclosures (2U 12-drive LFF and/or 2U 24-drive SFF), taking capacity beyond 7 PB per array. Compared with MSA Gen6, HPE rates the Gen7 platform at up to 2x more random IOPS and 30% more sequential bandwidth.

Features

- Up to 2x more random IOPS and 30% more sequential bandwidth than MSA Gen6
- Scales beyond 7 PB per array with up to nine expansion enclosures
- MSA Storage Management Utility (SMU v4) with MSA Health Check Tool access
- Non-disruptive online firmware updates for controllers and drive media
- TAA-compliant for government and public sector procurement
- MSA-DP+ RAID and real-time tiering

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2U rack-mount, 12 x LFF drive bays
- Controllers: 2 per array
- Host interface: 4 x 16Gb Fibre Channel ports per controller
- Drive support: SAS HDD and SSD
- Installed drives: none (drives not included)
- Power: 2 x 580W redundant power supplies
- Expansion: up to 9 x 2U 12-drive LFF and/or 2U 24-drive SFF enclosures
- Scalability: beyond 7 PB per array
- Access type: block storage
- Compliance: TAA-compliant

FAQs

Q: Does the HPE MSA 2070 S1H50A include drives?
A: No. This array ships without installed drives, so SAS HDD or SSD media must be sourced separately for the 12 LFF bays.

Q: What host connectivity does this MSA 2070 model provide?
A: Each of the two controllers provides four 16Gb Fibre Channel host ports, giving eight FC host ports across the array.

Q: How can I expand capacity on this array?
A: The array supports up to nine expansion enclosures, in 2U 12-drive LFF and/or 2U 24-drive SFF configurations, scaling beyond 7 PB per array.

Q: Is this model TAA-compliant?
A: Yes. The S1H50A is TAA-compliant, making it suitable for government and public-sector purchasing requirements.

Q: What drive types are supported?
A: The MSA 2070 supports SAS HDD and SSD media.

Q: How does the MSA 2070 Gen7 compare with MSA Gen6?
A: HPE rates the Gen7 platform at up to 2x more random IOPS and 30% more sequential bandwidth than MSA Gen6.
