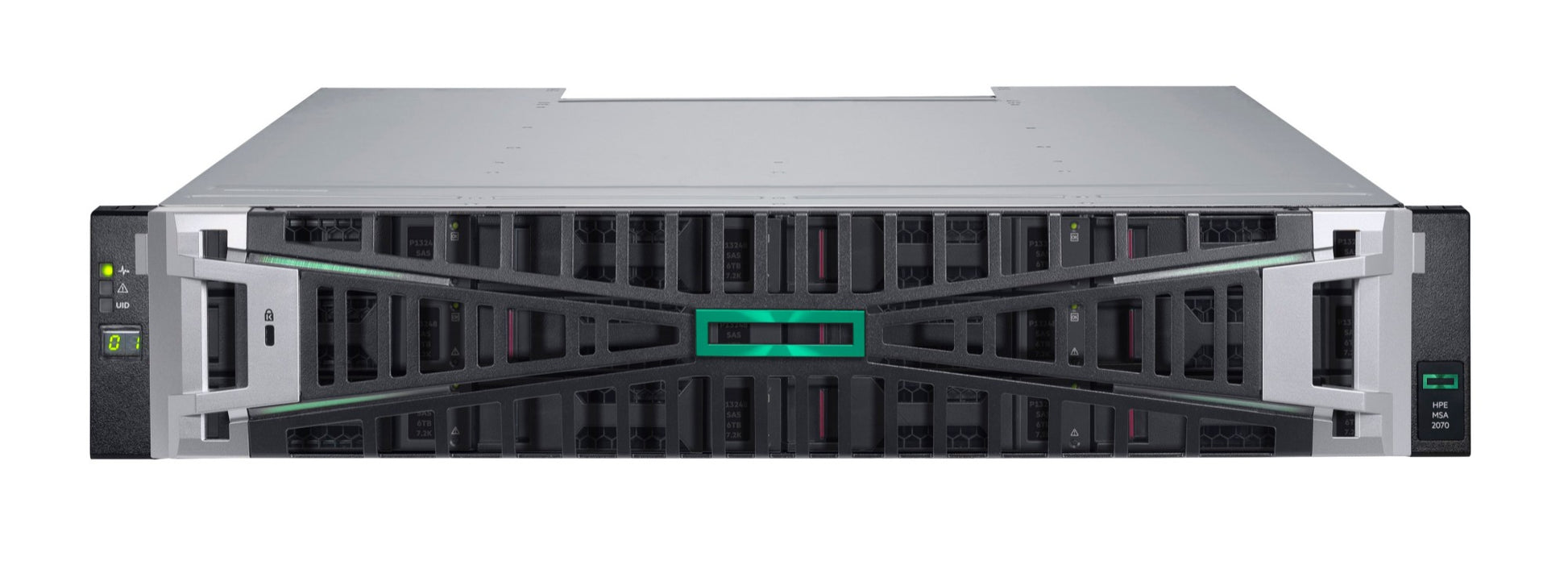

HPE S1H47A | MSA 2070 Gen7 SAN Storage Array, 12Gb SAS, 12-Bay LFF 2U

Authorised HPE Partner

SKU:S1H47A

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The HPE MSA 2070 12Gb SAS LFF SAN storage array is a 2U, 12-bay large form factor (3.5-inch) block storage system from the HPE MSA Gen7 family. Its dual active/active controllers provide 8 x 12Gb SAS host ports per array, making it a practical shared-storage platform for SMB, remote office and edge workloads.

Each array carries 48 GB of data cache and system memory, supports RAID levels 1, 5, 6, 10 and MSA-DP+, and scales with up to nine expansion enclosures to a maximum of 120 LFF drives and 2.88 PB raw capacity. Thin provisioning, snapshots, SSD read cache extension and non-disruptive online firmware updates are included, and the array is customer self-installable and self-repairable.

Features

- Up to 2x more random IOPS and 30% more sequential bandwidth than MSA Gen6
- Dual-controller active/active design, configurable as active/passive
- Battery-free cache backup using super capacitors and MMC
- Thin provisioning, automated tiering, SSD read cache extension, volume copy and snapshots
- Advanced MSA-DP+ RAID data protection
- Non-disruptive online firmware updates for controllers and drives
- MSA Health Check analytics and updated Storage Management Utility (SMU v4)
- Customer self-installable, self-repairable and self-upgradeable
- Scales beyond 7 PB per array with up to nine 2U LFF/SFF expansion enclosures

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2U rack form factor with 12 x LFF (3.5-inch) drive bays
- Dual controllers (active/active), 2 per array
- 8 x 12Gb SAS host ports per array (4 per controller)
- 48 GB data cache plus system memory per array
- Block access type
- RAID levels: NRAID/RAID 0 (read cache only), 1, 5, 6, 10, MSA-DP+
- Up to 9 expansion enclosures with 12Gb SAS drive enclosure interface
- Maximum 120 LFF drives per array (array plus 9 enclosures)
- Maximum raw capacity of 2.88 PB per array, 288 TB per 2U enclosure
- LFF HDD capacities (7.2K): 8 TB, 12 TB, 16 TB, 20 TB, 24 TB; LFF SSD: 1.92 TB
- Self-encrypting drives: 1.92 TB SSD and 12 TB HDD
- Maximum 512 volumes, 512 hosts and 1024 initiators
- Maximum read cache of 8.34 TB per array
- 2 x 2U Flex 580W 80+ Platinum redundant power supplies
- Operating temperature 5 to 40 C (ASHRAE A3)
- Dimensions: 3.5 in (H) x 17.5 in (W) x 20.0 in (D); 32 kg fully populated
- Benchmark: 783,000 random read IOPS and 14.1 GB/s sequential read
- Energy Star certified; FCC Class A, AS/NZS CISPR 32 Class A, RoHS compliant

FAQs

Q: How many drives does the MSA 2070 12Gb SAS LFF array support?
A: The 2U controller enclosure holds 12 LFF (3.5-inch) drives. Adding up to nine expansion enclosures takes the array to a maximum of 120 LFF drives.

Q: What host connectivity does this model provide?
A: It provides 8 x 12Gb SAS host ports per array, 4 on each of the two controllers, for direct-attach SAS connections to servers.

Q: Which RAID levels are supported?
A: NRAID/RAID 0 (read cache only), RAID 1, 5, 6, 10 and the MSA-DP+ distributed protection scheme are supported.

Q: How far can this array scale?
A: With nine 12Gb SAS expansion enclosures it reaches 120 LFF drives and a maximum raw capacity of 2.88 PB per array.

Q: Does it support SSDs as well as hard drives?
A: Yes. LFF SSDs (1.92 TB) can be used alongside 7.2K LFF HDDs from 8 TB to 24 TB, and SSDs can also be used as read cache extension.

Q: Are the power supplies redundant?
A: Yes. The array includes two 2U Flex Slot 580W 80+ Platinum power supplies in a redundant configuration.
