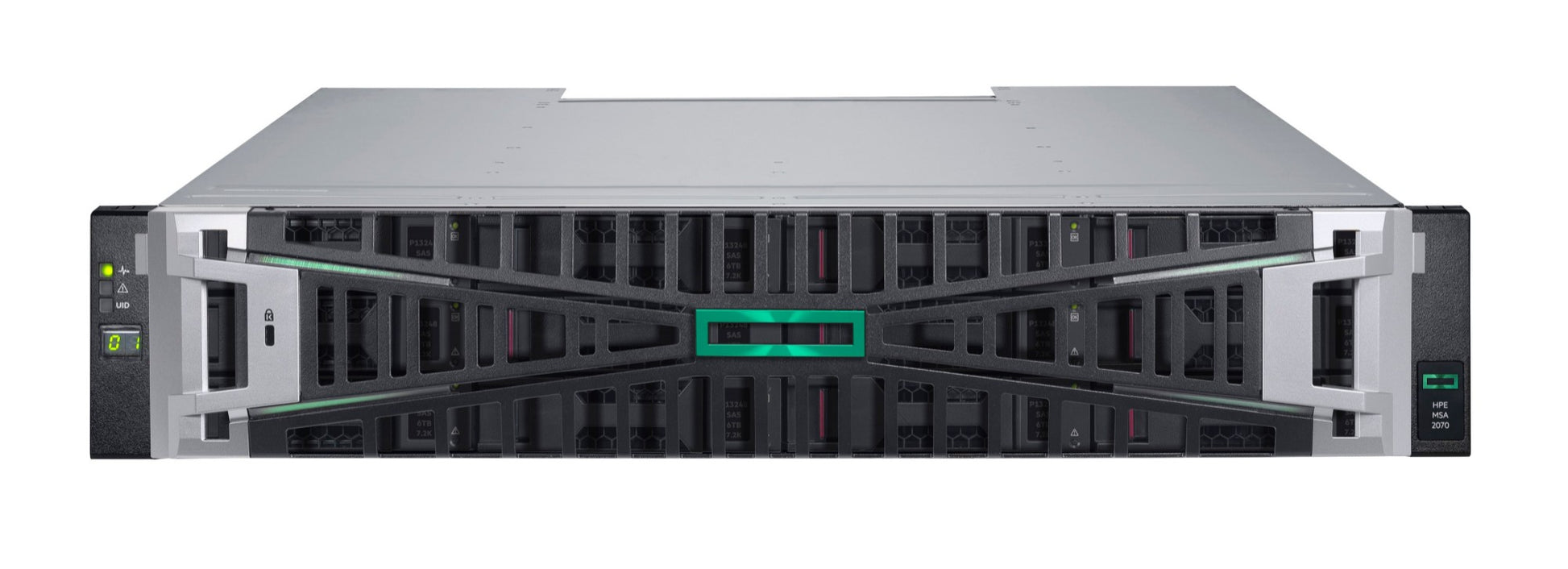

HPE S1H43A | MSA 2070 SAN Storage, 10/25GbE iSCSI, LFF 12-Bay

Authorised HPE Partner

SKU:S1H43A

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The HPE MSA 2070 10/25GbE iSCSI LFF SAN storage array is an entry-level Gen7 dual-controller shared storage system in a 2U chassis with 12 large-form-factor drive bays. It delivers block storage over 10/25GbE iSCSI (IPv4 and IPv6) host connectivity, with 4 host ports per controller and 8 per array, making it well suited to SMB virtualisation, database and file workloads. The array ships without drives, so capacity can be configured to suit with LFF HDDs or SSDs.

Capacity scales through 12Gb SAS expansion enclosures, with up to 9 enclosures and up to 120 LFF drives per array for a maximum raw capacity of 2.88 PB. Active/active controllers, redundant power and cooling, advanced MSA-DP+ RAID protection and online, non-disruptive firmware updates help keep data available, while thin provisioning, snapshots and SSD read cache support efficient day-to-day storage management.

Features

- Up to 2x more random IOPS and 30% more bandwidth than MSA Gen6
- Online, non-disruptive firmware updates for controllers and drive media
- MSA Storage Management Utility (SMU v4) with access to the MSA Health Check tool
- Thin provisioning, space reclamation, thin rebuild, automated tiering and SSD read cache
- Snapshots (64 standard, up to 512 with Advanced Data Services licence), volume copy and remote snaps
- Advanced MSA-DP+ RAID data protection
- Battery-free cache backup using super capacitors
- Customer self-installable, self-repairable and self-upgradeable
- Redundant power and cooling modules
- Energy Star and USGv6 certified

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2U rack-mountable chassis with 12 x LFF (3.5-inch) drive bays
- Dual active/active controllers, 4 host ports per controller, 8 per array
- 10/25 GbE iSCSI (IPv4 and IPv6) host connectivity
- 48 GB data cache and system memory per array
- 12 Gb SAS drive enclosure interface
- Up to 9 expansion enclosures, up to 120 LFF drives per array
- Maximum raw capacity 288 TB per 2U enclosure, 2.88 PB per array
- RAID levels 0 (read cache only), 1, 5, 6, 10 and MSA-DP+
- Maximum read cache per array: 8.34 TB
- Up to 512 volumes, 512 snapshots, 512 hosts and 1024 initiators
- Power supply: 2U Flex 580W 80+ Platinum, redundant
- Operating temperature: ASHRAE A3, 5 to 40 C
- Dimensions (H x W): 8.9 cm x 44.5 cm, weight 32 kg fully populated
- Supplied without drives

FAQs

Q: Does the HPE MSA 2070 S1H43A include drives?
A: No. The array is supplied without drives, so you can populate the 12 LFF bays with supported LFF HDDs or SSDs to suit your capacity and performance needs.

Q: What host connectivity does this model use?
A: This model provides 10/25GbE iSCSI (IPv4 and IPv6) host connectivity, with 4 host ports per controller and 8 host ports per array across the two controllers.

Q: How can I expand storage capacity?
A: Capacity is expanded with 12Gb SAS drive enclosures. Up to 9 expansion enclosures can be attached, giving up to 120 LFF drives and a maximum raw capacity of 2.88 PB per array.

Q: Which RAID levels are supported?
A: The MSA 2070 supports RAID 0 (read cache only), 1, 5, 6, 10 and MSA-DP+ advanced data protection.

Q: Are the controllers redundant?
A: Yes. The array uses dual active/active controllers along with redundant power and cooling modules, and supports online, non-disruptive firmware updates.

Q: Do snapshots require an additional licence?
A: 64 snapshots are available as standard. Increasing this to the maximum of 512 snapshots requires the Advanced Data Services licence.
