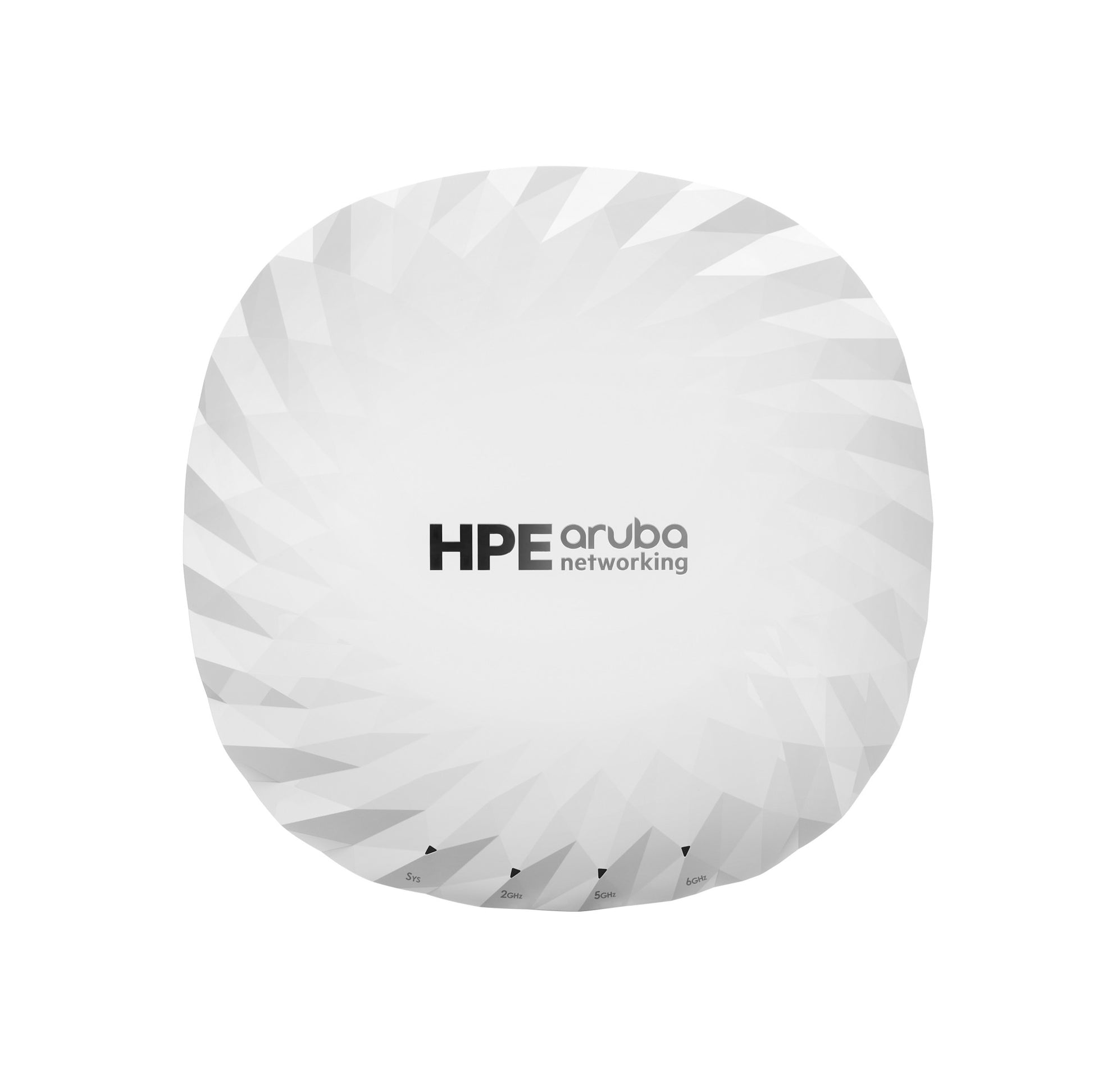

Aruba S0H12A | AP-735 Wi-Fi 7 Tri-Radio Access Point, 2x2, 5-Pack

Authorised Aruba Partner

SKU:S0H12A

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Aruba AP-735 is an indoor tri-radio Wi-Fi 7 (802.11be) campus access point with three 2x2 MIMO radios covering the 2.4 GHz, 5 GHz and 6 GHz bands. This SKU is the RW region eco-friendly 5-pack with integrated internal antennas, making it well suited to multi-room office, campus and education rollouts where several access points are deployed at once.

Each unit offers a maximum tri-band aggregate data rate of 9.3 Gbps, with 320 MHz channels in the 6 GHz band for low-latency, high-bandwidth applications. Two Smart Rate Ethernet ports support multi-gigabit speeds up to 5 Gbps and provide redundant data and power connectivity, while Bluetooth 5.4 LE, Zigbee and a built-in Trusted Platform Module support IoT and secure deployment requirements.

Features

- Ultra Tri-Band (UTB) filtering lets 5 GHz and 6 GHz operate without restrictions or interference
- Flexible radios: the 2.4 GHz radio can be reconfigured to dual-5 GHz or dual-6 GHz mode (a future software release feature)
- Dual 5 Gbps ports provide redundant Ethernet and power with hitless failover
- Up to three 320 MHz channels in 6 GHz for low-latency, high-bandwidth applications
- Secure IoT platform and location-based services support
- Eco-friendly 5-pack packaging for multi-AP deployments

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Indoor tri-radio access point, 802.11be (Wi-Fi 7), 2x2 MIMO on all three radios
- Concurrent 2.4 GHz, 5 GHz and 6 GHz operation
- Maximum tri-band aggregate data rate of 9.3 Gbps (up to 14.4 Gbps in optional dual-6 GHz mode)
- 6 GHz radio: 320 MHz channels, up to 5.8 Gbps
- 5 GHz radio: 160 MHz channels, up to 2.9 Gbps
- 2.4 GHz radio: up to 688 Mbps (40 MHz)
- Integrated omnidirectional dual-band antennas (max gain 5.1 dBi at 2.4 GHz, 5.5 dBi at 5 GHz, 5.3 dBi at 6 GHz)
- Two Smart Rate Ethernet ports configurable to 1/2.5/5 Gbps
- Bluetooth 5.4 LE and Zigbee
- Built-in Trusted Platform Module
- Ceiling mountable
- RW region, eco-friendly 5-pack

FAQs

Q: How many access points are included in the S0H12A?
A: The S0H12A is a 5-pack of AP-735 access points in eco-friendly packaging, supplied for the RW (rest-of-world) region.

Q: Which frequency bands does the AP-735 support?
A: It has three 2x2 MIMO radios covering 2.4 GHz, 5 GHz and 6 GHz concurrently, using the 802.11be (Wi-Fi 7) standard.

Q: Does the AP-735 use internal or external antennas?
A: This model uses integrated omnidirectional dual-band internal antennas, so no external antennas are required.

Q: What Ethernet connectivity does the AP-735 offer?
A: It has two Smart Rate Ethernet ports configurable to 1, 2.5 or 5 Gbps, providing redundant data and power connectivity with hitless failover.

Q: What is the maximum data rate of the AP-735?
A: The maximum tri-band aggregate data rate is 9.3 Gbps, rising to 14.4 Gbps in the optional dual-6 GHz mode.

Q: Is the AP-735 suited to IoT deployments?
A: Yes. It includes Bluetooth 5.4 LE and Zigbee radios, a built-in Trusted Platform Module and support for location-based services.
