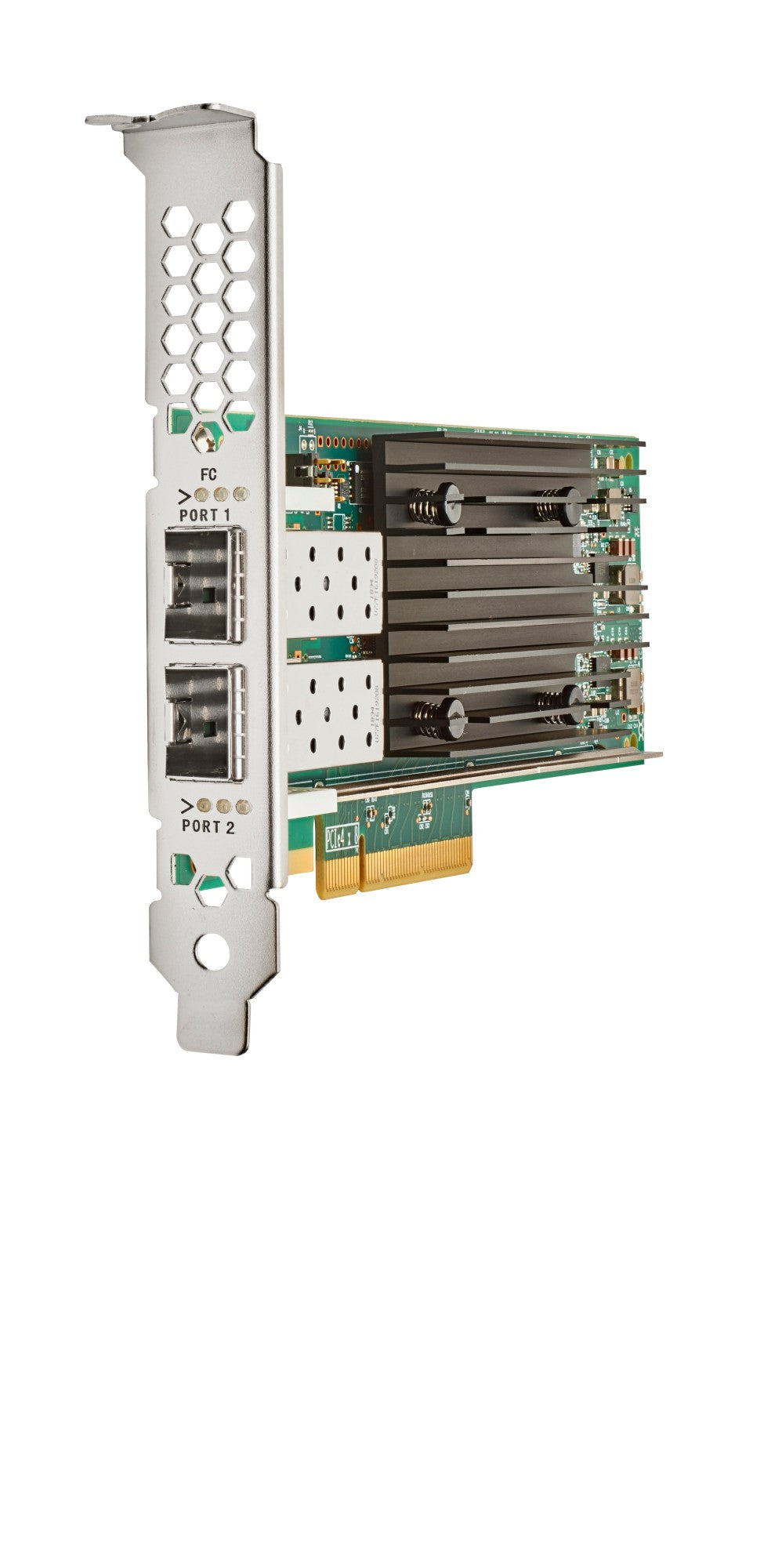

• Silver-colored HPE R7N87A PCIe 4.0 expansion card with two ethernet ports and black heat sinks on green circuit board
1 1

HPE

HPE R7N87A | SN1700Q 64Gb 2-Port Fibre Channel Host Bus Adapter, PCIe 4.0

HPE R7N87A | SN1700Q 64Gb 2-Port Fibre Channel Host Bus Adapter, PCIe 4.0

R7N87A

Stock Status: Enquire

$2,714.69 AUD
$2,714.69 AUD
$2,714.69 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The HPE SN1700Q 64Gb 2-Port Fibre Channel Host Bus Adapter delivers double the bandwidth of 32Gb FC solutions, making it ideal for latency-sensitive SAN storage deployments in HPE ProLiant ML/DL Gen10 and Gen11 server environments. Built on Marvell QLogic technology, it supports both FCP and FC-NVMe protocols — enabling exponentially more I/O queues and concurrent commands — and includes two 64Gb SFP transceivers plus Low Profile and Full Height bracket options for flexible installation.

Beyond raw performance, the SN1700Q incorporates Hardware Root of Trust (RoT) firmware integrity protection, secure encrypted firmware downloads, and non-disruptive firmware upgrades to help organisations maintain SLAs without downtime. It is backwards compatible with 32Gb and 16Gb FC fabrics and works seamlessly with HPE Alletra, Primera, Nimble, MSA, and StoreOnce storage arrays, as well as Brocade and Cisco FC switches. Upgrade your network with gear from iptrading.com.au — Australia's IT hardware specialists.

Features

- 64Gb FC delivers double the bandwidth of 32Gb FC products for high-throughput SAN workloads
- Dual-protocol FC-NVMe and FCP support enables next-generation and legacy storage connectivity from a single adapter
- Hardware Root of Trust (RoT) validates firmware integrity at boot, protecting against unauthorised firmware modification
- Secure firmware download with encryption key validation and non-disruptive upgrade capability
- Backward compatible with 32Gb and 16Gb FC environments to protect existing SAN infrastructure investment
- Class Specific Control (CSCTL) enables LUN-level I/O prioritisation and bandwidth allocation
- Virtual Machine ID (VM-ID) support for VM-aware SAN visibility and management
- Virtual Lanes technology enhances SAN performance by isolating and optimising traffic flows
- Quality of Service (QoS) parameters for consistent performance in virtualised server environments
- Autonomous SAN capabilities: self-learn, self-optimise, and self-heal to reduce manual administration
- HPE ProLiant Active Health System integration for faster fault diagnosis and resolution
- Compatible with Brocade and Cisco Fibre Channel switches for broad fabric interoperability
- Includes two 64Gb SFP transceivers and both Low Profile and Full Height bracket options

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Fibre Channel Ports: 2 x 64Gb
- Per-Port Bandwidth: 64 Gbit/s
- Host Interface: PCI Express 4.0
- Protocol Support: FC-NVMe and FCP (dual-protocol)
- Included Transceivers: 2 x 64Gb SFP
- Form Factor: Plug-in Card (Low Profile and Full Height bracket included)
- Backward Compatibility: 32Gb and 16Gb FC environments
- Supported Servers: HPE ProLiant ML/DL Gen10, Gen11
- Compatible Storage: HPE Alletra, Primera, Nimble, XP, MSA, StoreOnce
- Compatible FC Switches: Brocade, Cisco
- Security: Hardware Root of Trust (RoT) firmware integrity protection
- Spare Part Number: P43138-001
- SKU / Option Part: R7N87A

FAQs

Q: What servers is the HPE SN1700Q 64Gb 2-Port HBA compatible with?
A: The SN1700Q is compatible with HPE ProLiant ML and DL Gen10 and Gen11 servers. It connects via a PCIe 4.0 slot and is supported by HPE for use with the ProLiant Active Health System for integrated diagnostics and troubleshooting.

Q: Does the SN1700Q support FC-NVMe as well as traditional FCP storage?
A: Yes. The SN1700Q is a dual-protocol adapter supporting both FC-NVMe and FCP (Fibre Channel Protocol). FC-NVMe enables significantly more I/O queues and concurrent commands compared to FCP, making it well-suited for high-performance NVMe-based all-flash storage arrays.

Q: Is the SN1700Q backward compatible with older Fibre Channel environments?
A: Yes. The adapter is fully backward compatible with existing 32Gb and 16Gb Fibre Channel infrastructure, allowing organisations to upgrade server-side connectivity without replacing their existing SAN fabric or storage arrays.

Q: What storage arrays are supported with the HPE SN1700Q?
A: The SN1700Q is compatible with a broad range of HPE storage platforms including HPE Alletra, Primera, Nimble, XP, MSA, and StoreOnce. It also works with Brocade and Cisco Fibre Channel switches, providing broad interoperability across HPE and third-party SAN environments.

Q: What security features does the SN1700Q include?
A: The SN1700Q features Hardware Root of Trust (RoT) technology, which validates firmware integrity and authenticity at boot time. It also supports secure firmware downloads with encryption key validation and non-disruptive firmware upgrades to minimise operational risk.

Q: Can I purchase the HPE SN1700Q (R7N87A) in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware specialist stocking HPE server accessories including the SN1700Q HBA (R7N87A). Contact our team for pricing, availability, and volume purchasing options for Australian businesses.
