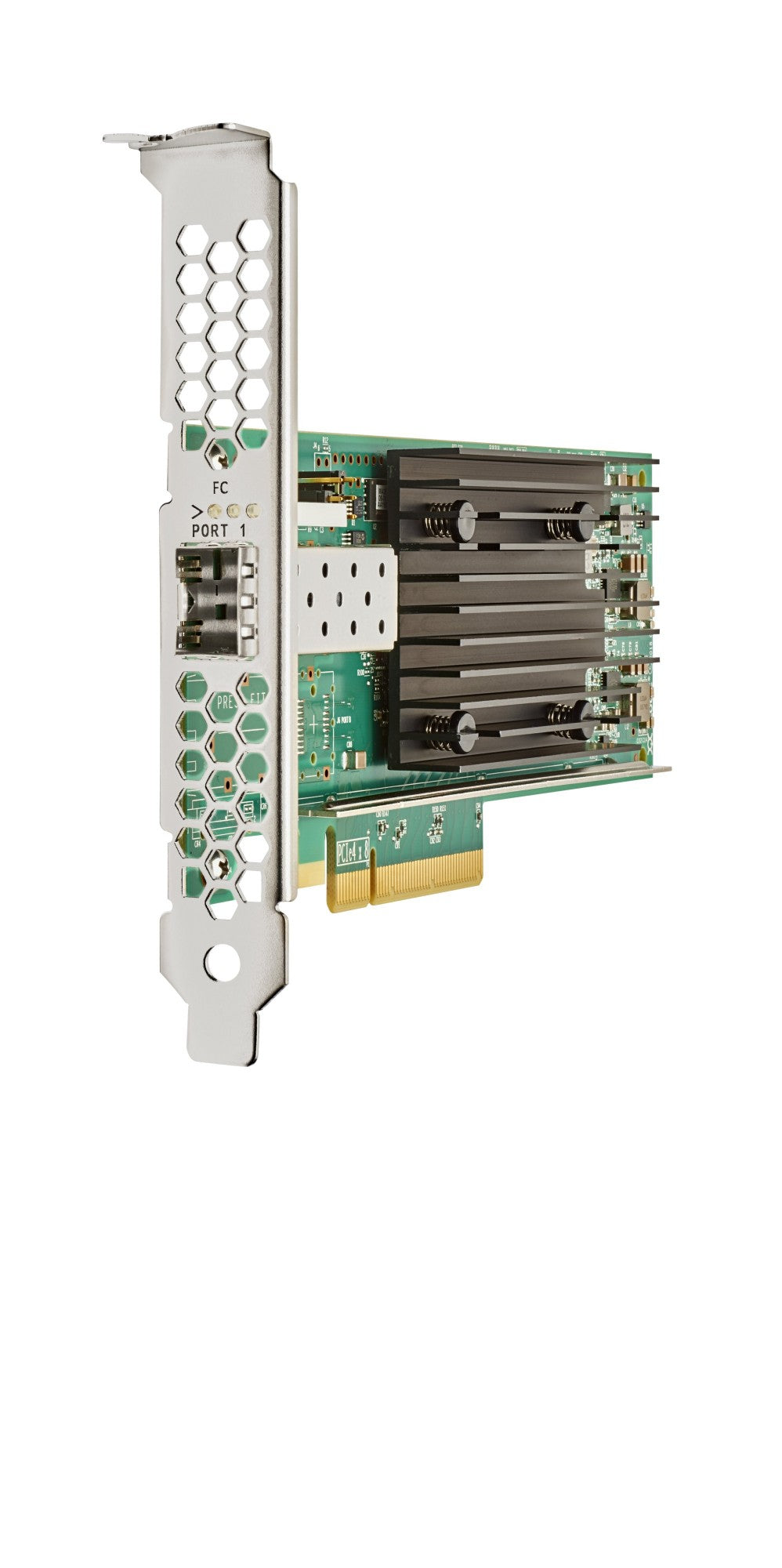

HPE R7N86A | SN1700Q 64Gb 1-Port Fibre Channel Host Bus Adapter, PCIe 4.0

HPE R7N86A | SN1700Q 64Gb 1-Port Fibre Channel Host Bus Adapter, PCIe 4.0

R7N86A

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The HPE SN1700Q 64Gb 1-Port Fibre Channel Host Bus Adapter delivers high-bandwidth SAN connectivity for HPE ProLiant servers, offering twice the throughput of 32Gb FC solutions. Supporting concurrent FCP (SCSI) and FC-NVMe protocols on a single port, it is designed for demanding storage area network environments where low latency and maximum throughput are critical. Hardware Root of Trust (RoT) ensures firmware integrity, while VM-ID support enables VM-aware storage networking and per-VM QoS.

Backward compatible with 32Gb and 16Gb FC devices, this PCIe 4.0 x8 adapter installs in both Low Profile and Full Height form factors, making it versatile across a wide range of ProLiant server platforms. It integrates with HPE Smart SAN, HPE ProLiant Active Health System, and is compatible with HPE Alletra Storage MP, Primera, 3PAR, Nimble, and more. Order direct from iptrading.com.au — Australian-owned and operated since 2001.

Features

- Hardware Root of Trust (RoT) validates firmware integrity at boot, protecting against unauthorised modification
- Concurrent FCP (SCSI) and FC-NVMe protocol support on a single port — no separate HBA required
- VM-ID support enables VM-aware storage networking with per-virtual-machine QoS
- Class Specific Control (CSCTL) for LUN-level prioritisation and bandwidth allocation
- Non-disruptive firmware upgrades minimise planned maintenance windows
- HPE ProLiant Active Health System integration for proactive diagnostics
- Autonomous SAN capabilities: self-learn, self-optimise, self-heal via SN1700 Series standards
- Compatible with HPE Smart SAN features on HPE B-series and C-series FC switches
- T10 Protection Information (T10-PI) checksum support with HPE Alletra, Primera, and 3PAR arrays
- Backward compatible with 32Gb and 16Gb FC infrastructure for phased upgrades

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Fibre Channel Ports: 1 x 64Gb
- Line Rate: 64 Gbit/s
- Connector: SFP+ (short wave optical, pre-installed)
- Host Interface: PCIe 4.0 x8 (backward compatible with PCIe 3.0)
- Backward Compatible: 32Gb and 16Gb FC devices
- Form Factor: Plug-in card — Low Profile and Full Height bracket support
- Protocols: FCP (SCSI) and FC-NVMe (concurrent)
- Spare Part Number: P43137-001

FAQs

Q: What servers is the HPE SN1700Q 64Gb 1-Port HBA compatible with?
A: The HPE SN1700Q 64Gb 1-Port HBA is designed for HPE ProLiant servers that support PCIe 4.0 x8 slots. It is also backward compatible with PCIe 3.0 slots and supports both Low Profile and Full Height form factors, making it compatible with a broad range of current and previous-generation ProLiant server platforms.

Q: Can this HBA connect to existing 32Gb or 16Gb Fibre Channel storage infrastructure?
A: Yes. The SN1700Q is backward compatible with 32Gb and 16Gb Fibre Channel devices, allowing you to adopt 64Gb HBAs incrementally without replacing your existing SAN switches or storage arrays immediately.

Q: Does the HPE SN1700Q support FC-NVMe?
A: Yes. The SN1700Q supports concurrent FCP (SCSI) and FC-NVMe protocols on the same port simultaneously, enabling access to both traditional SCSI-based storage and NVMe-over-Fabrics storage targets without requiring separate HBAs.

Q: What HPE storage arrays are compatible with this HBA?
A: The HPE SN1700Q 64Gb HBA is compatible with HPE Alletra Storage MP, Alletra, Primera, 3PAR, Nimble, XP8, MSA, and StoreOnce storage platforms. It also supports T10 Protection Information (T10-PI) checksum with HPE Alletra, Primera, and 3PAR arrays.

Q: What security features does the SN1700Q include?
A: The adapter features Hardware Root of Trust (RoT) technology, which validates firmware integrity at boot time to protect against unauthorised firmware modification — an important requirement in secure enterprise and government storage environments.

Q: Can I purchase the HPE SN1700Q HBA (R7N86A) in Australia?
A: Yes. iptrading.com.au is an Australian-owned and operated IT hardware reseller, in business since 2001, supplying HPE products including the SN1700Q HBA to businesses, government, and education sectors across Australia. Contact us or order directly online for pricing and availability.
