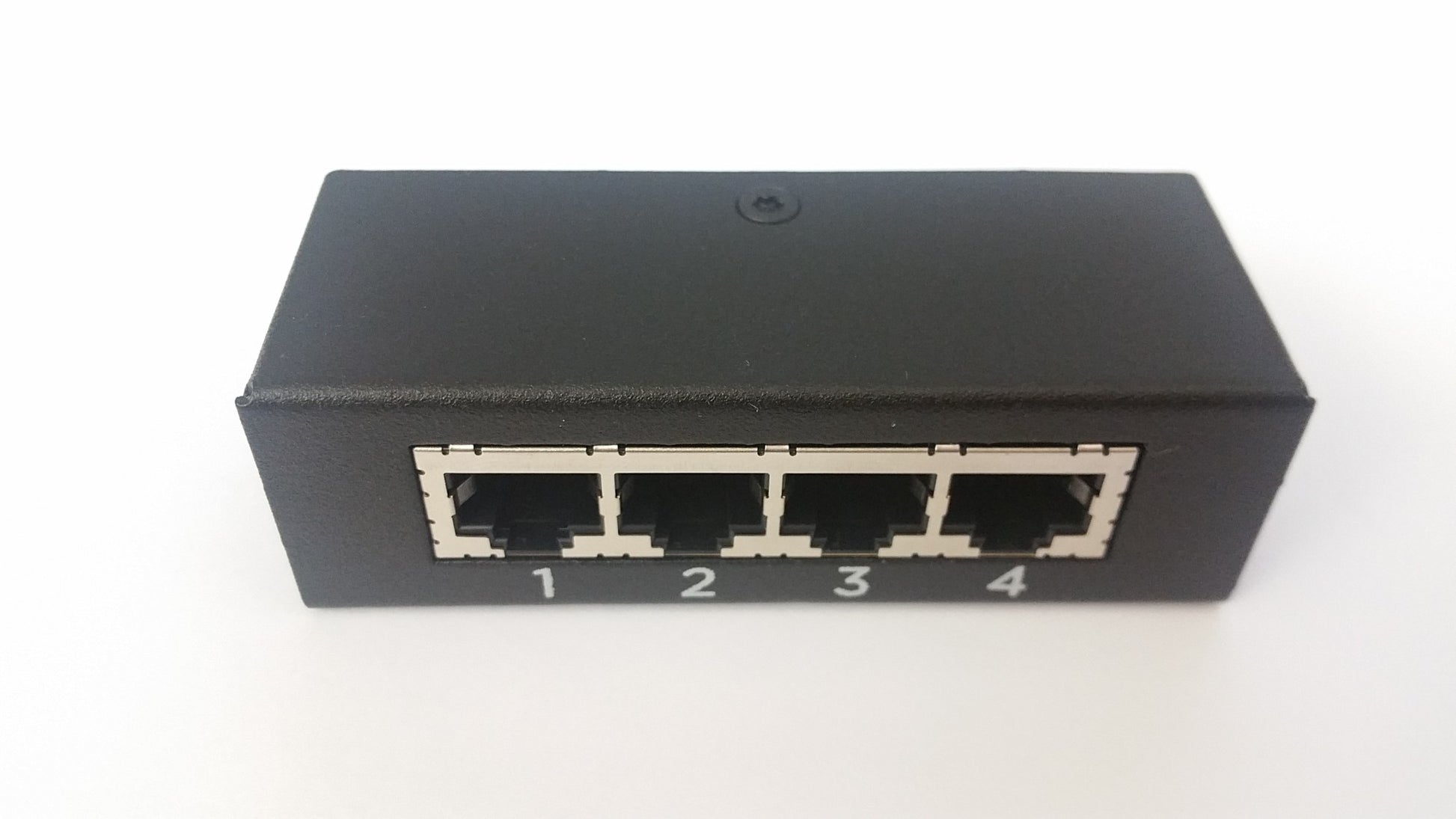

• HPE P9T07A G2 PDU sensor port hub with 4 labeled ethernet ports
1 1

HPE

HPE P9T07A | G2 PDU Sensor Port Hub, 1-to-3 RJ45 Sensor Expansion

HPE P9T07A | G2 PDU Sensor Port Hub, 1-to-3 RJ45 Sensor Expansion

Authorised HPE Partner

P9T07A

Stock Status: Enquire

$213.66 inc. GST
$194.24 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The HPE G2 PDU Sensor Port Hub is a sensor port hub that expands one physical sensor port on an HPE G2 Metered or Metered and Switched PDU into three. It lets a single PDU support more environmental sensors for temperature, humidity, door and intrusion, and fluid leak monitoring in the rack.

The hub provides four parallel RJ45 ports labelled 1 to 4, where any port can connect to the PDU or to a sensor. Up to two hubs can be used per PDU, taking it from 2 to 6 sensor ports. Sensor data is viewable in the PDU web UI, or through SNMP and the Redfish API, and sensors can be installed without powering down the PDU or connected devices.

Features

- Adds sensor ports so a single G2 PDU can support more environmental sensors
- Supports monitoring of temperature, humidity, door and intrusion, and fluid leak sensors via the PDU
- Sensor data viewable in the PDU web UI, or via SNMP or the Redfish API
- Numbered RJ45 ports help document which sensor is connected
- Sensors can be installed without powering down the PDU or connected devices

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: PDU sensor port hub
- Function: expands 1 physical sensor port into 3 physical sensor ports
- Ports: 4 parallel RJ45 ports labelled 1 to 4, any port can connect to the PDU or a sensor
- Compatibility: HPE G2 Metered and Switched Power Distribution Units
- Sensor ports per G2 PDU (standard): 2
- Sensor ports per G2 PDU with hubs: up to 6, using up to two hubs
- Maximum sensor measurements per PDU: 8

FAQs

Q: Which PDUs is the HPE G2 PDU Sensor Port Hub compatible with?
A: It is designed for HPE G2 Metered and Switched Power Distribution Units, where it expands a single physical sensor port into three.

Q: How many sensor ports can I add to a PDU?
A: A standard G2 PDU has 2 sensor ports. With up to two hubs fitted, a PDU can support up to 6 sensor ports.

Q: What connections does the hub provide?
A: It has four parallel RJ45 ports labelled 1 to 4. Any port can connect to the PDU or to a sensor, so one port goes to the PDU and up to three connect to sensors.

Q: What types of sensors can be monitored?
A: Temperature, humidity, door and intrusion, and fluid leak sensors can be monitored through the PDU.

Q: How can I view the sensor data?
A: Sensor data can be viewed in the PDU web UI, or accessed through SNMP or the Redfish API.

Q: Do I need to power down the PDU to install sensors?
A: No. Sensors can be installed without powering down the PDU or the connected devices.
