HPE P93932-375 | ProLiant DL320 Gen12 1U Rack Server, Xeon 6505P, 64GB, 8SFF

Authorised HPE Partner

SKU:P93932-375

In stock:2

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

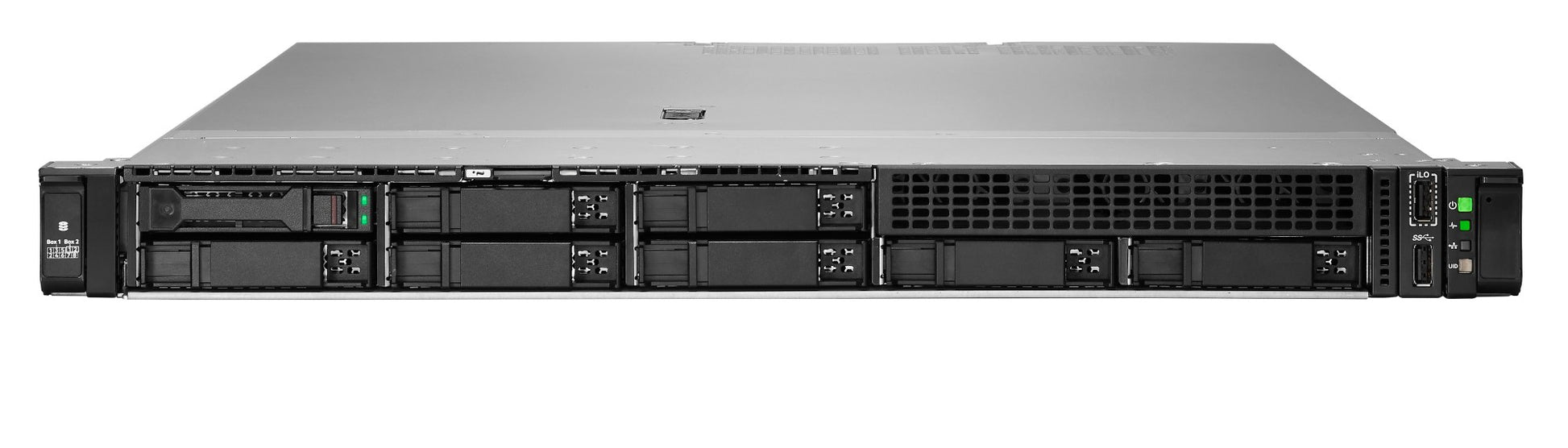

The ProLiant DL320 Gen12 is a single-socket 1U rack server built for edge, virtualised and containerised workloads in power-constrained environments. This configuration pairs one Intel Xeon 6505P (12 cores, 2.2GHz, 150W) with 64GB of dual-rank DDR5 memory (2 x 32GB), an HPE MR408i-o storage controller and 8 SFF drive bays, with dual 800W Platinum hot plug power supplies for redundancy.

The platform supports up to 4TB of DDR5 across 16 DIMM slots, up to 2 x16 PCIe Gen5 slots and front or rear OCP add-in cards. HPE iLO 7 with a silicon root of trust, an included TPM and cloud management through HPE Compute Ops Management give IT teams a secure, manageable foundation for rack-dense deployments. Drives are not shipped as standard.

Features

- Intel Xeon 6 processor support with PCIe Gen5 and DDR5 memory for improved datacentre efficiency
- Silicon root of trust protects firmware integrity and blocks booting of compromised servers
- HPE iLO 7 supports quantum-resistant (PQC) algorithms with firmware signed using CNSA 2.0-approved algorithms
- Support for Intel TDX VM isolation
- Cloud-managed through HPE Compute Ops Management
- Designed to maximise rack utilisation in power-constrained and edge environments
- Redundant 800W Platinum hot plug power supplies

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1U rack, single socket
- Processor: 1 x Intel Xeon 6505P, 2.2GHz, 12 cores, 150W
- Memory installed: 64GB (2 x 32GB) dual-rank DDR5
- Memory slots: 16 DIMM slots, up to 4TB DDR5
- DDR5 speed with Xeon 6 P-core CPUs: 6400 MT/s at 1 DPC, 5200 MT/s at 2 DPC
- Storage controller: HPE MR408i-o Gen11 x8 lanes, 4GB cache, OCP SPDM
- Drive bays: 8 SFF, no drives shipped as standard
- Power supplies: 2 x HPE 800W M-CRPS Platinum hot plug
- Fans: 7 x HPE ProLiant Compute Gen12 1U High Performance fan kits
- Expansion: up to 2 x16 PCIe Gen5 slots, plus front or rear OCP NIC or controller add-in cards
- Management: HPE iLO 7 on DC-SCM module
- Integrated video: VGA port, 16MB video memory, up to 1920 x 1200 @ 60Hz
- Security: TPM included, silicon root of trust

FAQs

Q: What processor and memory does this DL320 Gen12 configuration include?
A: It includes one Intel Xeon 6505P (12 cores, 2.2GHz, 150W) and 64GB of dual-rank DDR5 memory installed as 2 x 32GB.

Q: Does this server ship with hard drives?
A: No. It provides 8 SFF drive bays managed by the HPE MR408i-o storage controller, but no drives are shipped as standard.

Q: How much memory can the server support?
A: It has 16 DIMM slots and supports up to 4TB of DDR5. Memory runs at up to 6400 MT/s at 1 DIMM per channel and 5200 MT/s at 2 DIMMs per channel with Xeon 6 P-core CPUs.

Q: What expansion options are available?
A: The server supports up to 2 x16 PCIe Gen5 slots, plus front or rear OCP NIC or controller add-in cards.

Q: Is the power supply redundant?
A: Yes. It ships with two HPE 800W M-CRPS Platinum hot plug power supplies.

Q: How is the server managed and secured?
A: HPE iLO 7 on a DC-SCM module handles remote management, with a silicon root of trust and an included TPM for security. It can also be cloud-managed through HPE Compute Ops Management.
