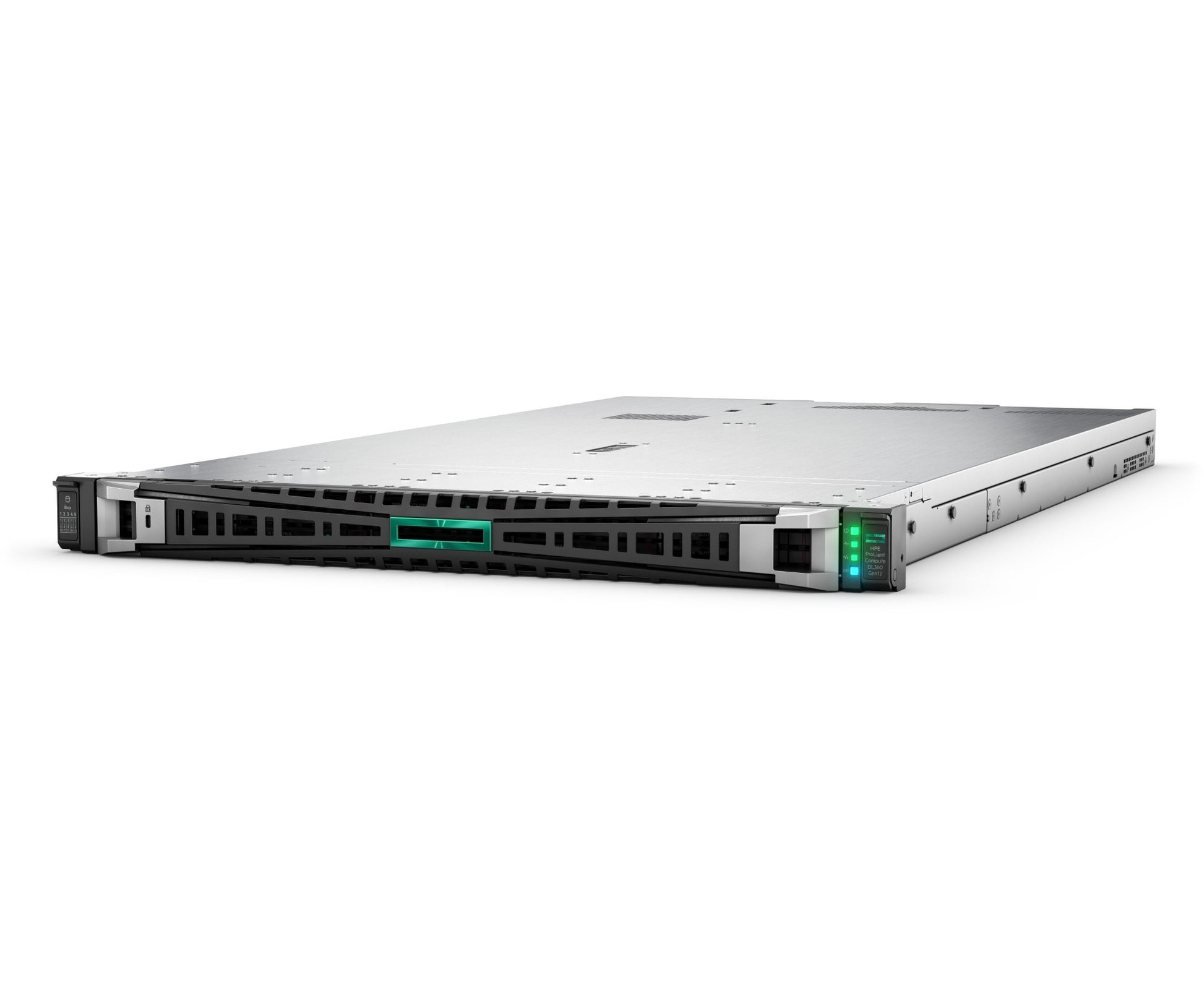

HPE P91144-375 | ProLiant DL360 Gen12 1U Rack Server, Xeon 6515P 16c, 64GB, 8SFF

Authorised HPE Partner

SKU:P91144-375

In stock:2

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The HPE ProLiant DL360 Gen12 1U rack server is a pre-configured platform built on Intel Xeon 6 processors, suited to hybrid cloud, virtualisation and enterprise workloads. This model ships with one Xeon 6515P 16-core processor, 64GB (2x32GB) DDR5 RDIMM, an 8SFF front drive cage, an NS204i-u v2 NVMe boot device, an MR408i-o RAID controller and 2x 800W Flex Slot Platinum power supplies.

The 2P-capable platform leaves room to grow, with 32 DIMM slots across two sockets, up to 8 TB of DDR5 memory and 88 PCIe Gen5 lanes per CPU socket. HPE iLO 7 provides remote management with Redfish API support, while Secure Start and Secure Boot via UEFI help protect the platform from the firmware up.

Features

- Intel Xeon 6 processor platform for hybrid cloud and enterprise workloads
- Up to 8 TB DDR5 memory at speeds up to 6400 MT/s
- 8SFF TriMode U.3 front drive cage for flexible storage configurations
- Dedicated NS204i-u v2 NVMe boot device keeps the operating system separate from data drives
- MR408i-o Gen11 RAID controller with 4GB cache
- Redundant hot-plug 800W Flex Slot Platinum power supplies
- HPE iLO 7 with Redfish API support for remote management
- Secure Start and Secure Boot security features
- OCP networking support

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1U rack, 2P-capable platform (ships with 1 processor)
- Processor: 1 x Intel Xeon 6515P, 2.3 GHz, 16 cores, 72 MB L3 cache, 150 W
- Memory: 64GB (2 x 32GB) DDR5 RDIMM, dual rank, ECC
- Memory capacity: 32 DIMM slots (2P), up to 8 TB maximum
- Memory speed: up to 6400 MT/s at 1DPC, 6000 MT/s at 2DPC
- Front drive bays: 8SFF 24G x1 TriMode U.3 basic carrier cage
- Boot device: HPE NS204i-u v2 NVMe hot-plug boot optimised storage
- Storage controller: HPE MR408i-o Gen11 x8 lanes, 4GB cache, OCP, SPDM
- Power supplies: 2 x HPE 800W Flex Slot Platinum hot-plug, low halogen
- PCIe: 88 PCIe Gen5 lanes per CPU socket
- Management: HPE iLO 7 ASIC
- Integrated video: up to 1920 x 1200 @ 60 Hz, 16 MB video memory
- Security: Secure Boot and Secure Start via UEFI
- Fans: 1P standard fan kit

FAQs

Q: Can this server be upgraded to two processors?
A: Yes. The DL360 Gen12 is a 2P-capable platform, but this SKU ships with a single Intel Xeon 6515P. A second processor requires the appropriate 2P fan and riser configuration.

Q: What storage does this configuration include?
A: It includes an 8SFF front drive cage and an HPE NS204i-u v2 NVMe hot-plug boot device. Data drives are not part of this configuration and are added to suit your requirements.

Q: Does it have redundant power?
A: Yes. It includes two HPE 800W Flex Slot Platinum hot-plug power supplies for redundancy.

Q: How much memory is installed and how far can it scale?
A: It ships with 64GB (2 x 32GB) DDR5 RDIMM. The platform supports up to 8 TB across 32 DIMM slots in a two-processor configuration.

Q: What RAID controller is fitted?
A: An HPE MR408i-o Gen11 controller with 4GB cache, supporting the 8SFF front drive cage.

Q: How is the server managed remotely?
A: Through HPE iLO 7, which supports the Redfish API for remote monitoring, provisioning and firmware management.
